Front seat backrest frame/rear panel for BMW 7 Series E38 735i (1998)

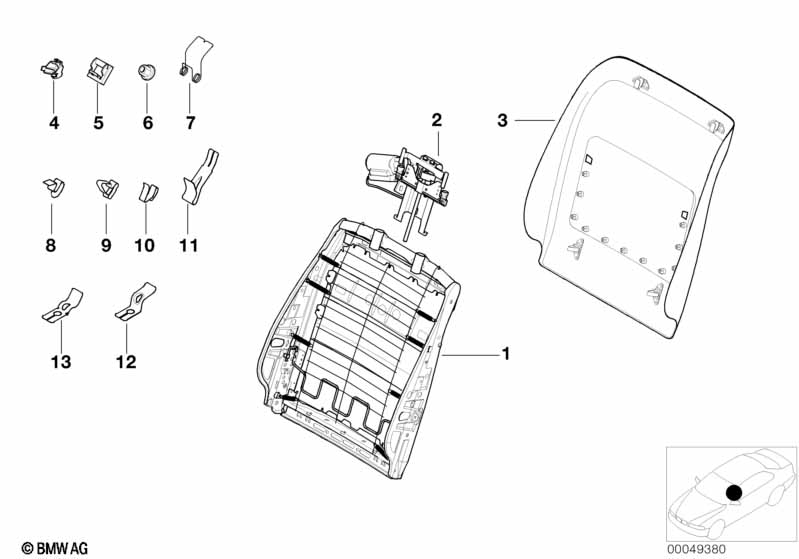

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electr. front seat adjustment ONLY APPLIES TO CO-DRIVERS SIDE |
S458A=Yes |
|||||||||
| 02 | Head rest support electr. | 1 | 09/1995 | 11/1998 | 52108162349 | $165.27 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes |
|||||||||
| 02 | Head rest support electr. | 1 | 09/1995 | 11/1998 | 52108157399 | $215.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Clip | 4 | 52108175054 | $2.29 | Shop at ECS Tuning | |||||
| 05 | Clip | 4 | 07/2001 | 52108175053 | $0.66 | Shop at ECS Tuning | ||||
| 05 | Repair kit clamps | 4 | 52107240386 | Shop at ECS Tuning | ||||||
| 06 | Nut | 22 | 52101957622 | $0.35 | Shop at ECS Tuning | |||||
| 07 | Repair kit clamps | 4 | 52107240386 | Shop at ECS Tuning | ||||||
| 08 | Clip, trim panel, bottom | 4 | 52108110149 | $0.23 | Shop at ECS Tuning | |||||
| 09 | Clip, trim panel, top | 4 | 11/1998 | 52108175057 | $4.91 | Shop at ECS Tuning | ||||
| 10 | Clip, trim panel, bottom | 4 | 52108175058 | $3.11 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
