Seat, front, head restraint Comfort seat for BMW 7 Series E38 735i (2001)

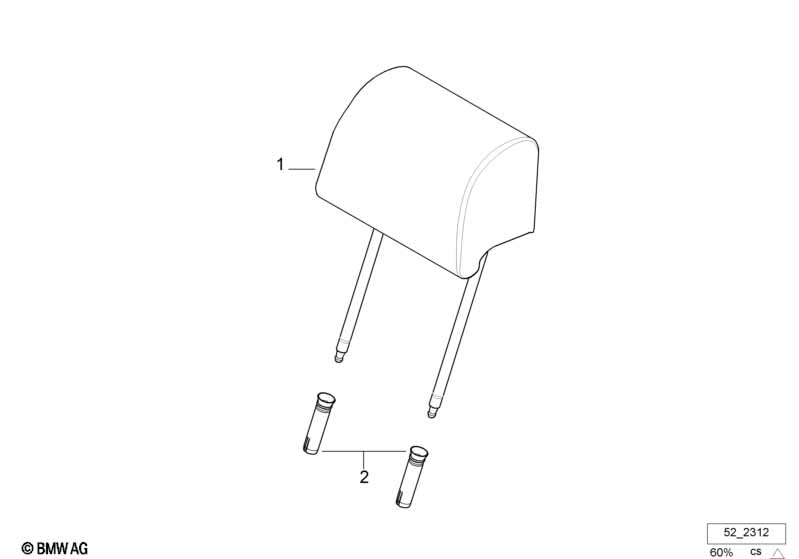

This Seat, front, head restraint Comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| For vehicles with All leather "Club" |
R9=Yes |
|||||||||
| 01 | Headrest leather | R9SW SCHWARZ | 2 | 03/2000 | 52107017182 | $199.76 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | R9TT GRAU | 2 | 03/2000 | 52107017183 | $199.76 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | R9SN SANDBEIGE | 2 | 03/2000 | 52107017184 | $199.76 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | R9OZ OZEANBLAU | 2 | 03/2000 | 52107017185 | $199.76 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather "Ambiente" |
V1=Yes |
|||||||||
| 01 | Headrest leather | V1AG ANTHR.GRAU | 2 | 03/2000 | 52107017187 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | V1SN;V2SN BEIGE | 2 | 03/2000 | 52107017188 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | V1MO MORELLO | 2 | 03/2000 | 52107017189 | $263.38 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 01 | Head rest cloth | F4AT,F5AT ANTHR | 2 | 09/1998 | 52108252222 | $134.14 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4DL,F5DL BLAU | 2 | 09/1998 | 52108252223 | $134.14 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4TT,F5TT GRAU | 2 | 09/1998 | 52108252224 | $134.14 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 01 | Headrest leather | N8TT GRAU | 2 | 09/1998 | 52108158711 | $213.25 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N8SW SCHWARZ | 2 | 09/1998 | 52108158712 | $213.25 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N8DL MARINEBLAU | 2 | 09/1998 | 52108158713 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N8MK GRAU | 2 | 09/1998 | 52108158715 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N8EG ENGL.GRUEN | 2 | 09/1998 | 52108158716 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N6WY,N8WY TOBAC | 2 | 09/1998 | 52108260398 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood |
P2=Yes P3=Yes |
|||||||||
| 01 | Headrest leather | P2AT,P3AT ANTHR | 2 | 52108176055 | $213.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Standard leather, montana or Standard leather, root wood |
N6=Yes N8=Yes O7=Yes O8=Yes |
|||||||||
| 01 | Headrest leather | N6OY,O7OY PEARL | 2 | 09/1998 | 52108260399 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N8SN,O8SN BEIGE | 2 | 09/1998 | 52108158714 | $213.25 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Guide | 4 | 52108169456 | $2.54 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
