Front seat backrest frame/rear panel for BMW 7 Series E38 740d (2001)

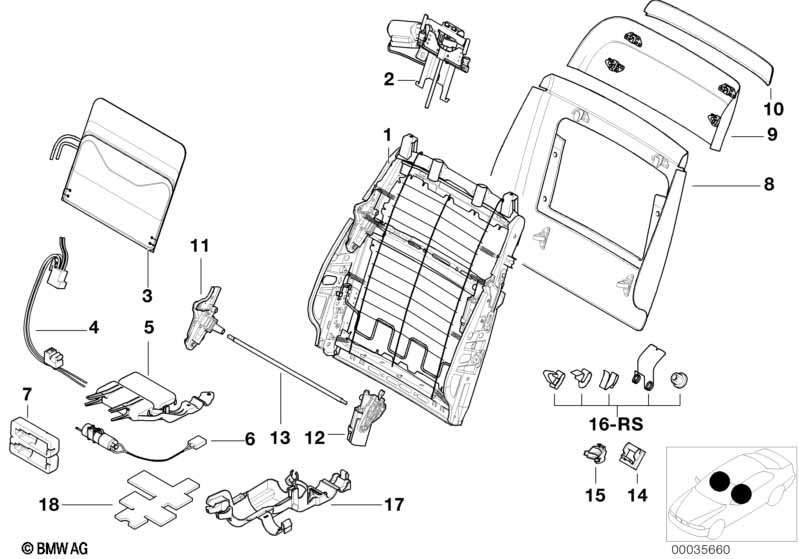

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Comfort seat with memory |
S456A=Yes |
||||||||
| MODEL WITH MEMORY ONLY APPLIES TO DRIVER'S SIDE |
||||||||||
| 01 | Backrest frame | 1 | 52108200321 | $486.68 | Shop at ECS Tuning | |||||
| MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 01 | Backrest frame | 1 | 52108200322 | $430.23 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO UPPER REAR MULTI-PURPOSE PANEL MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE ONLY APPLIES TO REAR PANEL/FOLDING TABLE |
||||||||||
| 01 | Backrest frame | 1 | 09/1995 | 52108199662 | $430.23 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO UPPER REAR MULTI-PURPOSE PANEL MODEL WITH MEMORY ONLY APPLIES TO DRIVER'S SIDE ONLY APPLIES TO REAR PANEL/FOLDING TABLE |
||||||||||
| 01 | Backrest frame | 1 | 09/1995 | 52108199661 | $486.68 | ENDED | Shop at ECS Tuning | |||
| MODEL WITH Holder, video and TV apparatus MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 01 | Backrest frame | TV | 1 | 52102693565 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITH MEMORY ONLY APPLIES TO DRIVER'S SIDE |
||||||||||
| 02 | Head rest support electr. | 1 | 52107010142 | $172.55 | Shop at ECS Tuning | |||||
| MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 02 | Head rest support electr. | 1 | 52107010145 | $162.69 | Shop at ECS Tuning | |||||
| 03 | Lordosis pad | 2 | 52108170562 | $37.83 | Shop at ECS Tuning | |||||
| 04 | Lumbar support compressed air unit | 2 | 52108162272 | $97.65 | ENDED | Shop at ECS Tuning | ||||
| 06 | Drive unit lordosis pad | 2 | 04/1998 | 67668378948 | $86.25 | Shop at ECS Tuning | ||||
| CLOTH VERSION WOOL VELOURS | ||||||||||
| 08 | Lower rear panel | GRAU | 2 | 52108175774 | $241.40 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | ANTHRAZIT | 2 | 52108175775 | $261.14 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | MARINEBLAU | 2 | 52108175776 | $261.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Lower rear panel | LAVENDELGRAU | 2 | 52108175778 | $261.14 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. IMITATION LEATHER |
N6=Yes |
|||||||||
| 08 | Lower rear panel | GRAU | 2 | 52108175779 | $241.40 | Shop at ECS Tuning | ||||
| 08 | Lower rear panel | SCHWARZ | 2 | 52108175780 | $241.40 | ENDED | Shop at ECS Tuning | |||
| 08 | Lower rear panel | MARINEBLAU | 2 | 52108175781 | $261.14 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | SANDBEIGE | 2 | 52108175782 | $241.40 | Shop at ECS Tuning | ||||
| 08 | Lower rear panel | LAVENDELGRAU | 2 | 52108175783 | $261.14 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | DUNKELGRUEN | 2 | 52108189108 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Lower rear panel | TOBACCOBRAUN | 2 | 52108260365 | $261.14 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | PEARLBEIGE | 2 | 52108260366 | $248.20 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Standard leather, root wood or Softleather Bubinga or Softleather, root wood or Buffalo leather/Bubinga or Buffalo leather, root wood UPHOLSTERY LEATHER MONTANA FOR ALL TYPES OF LEATHER UPHOLSTERY |
N8=Yes N9=Yes P1=Yes P2=Yes P3=Yes |
|||||||||
| 08 | Lower rear panel | GRAU | 2 | 52108175784 | $474.01 | ENDED | Shop at ECS Tuning | |||
| 08 | Lower rear panel | SCHWARZ | 2 | 52108175785 | $474.01 | Shop at ECS Tuning | ||||
| 08 | Lower rear panel | MARINEBLAU | 2 | 52108175786 | $460.91 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | SANDBEIGE | 2 | 52108175787 | $474.01 | ENDED | Shop at ECS Tuning | |||
| 08 | Lower rear panel | LAVENDELGRAU | 2 | 52108175788 | $474.01 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Lower rear panel | DUNKELGRUEN | 2 | 52108189110 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Lower rear panel | PEARLBEIGE | 2 | 09/1998 | 52108260369 | $456.44 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Lower rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52108260374 | $456.44 | ENDED, +core | Shop at ECS Tuning | ||
| IMITATION LEATHER ONLY APPLIES TO LEATHER VERSION MONTANA |
||||||||||
| 09 | Upper rear panel | GRAU | 2 | 52108175751 | $84.29 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | SCHWARZ | 2 | 52108175752 | $84.29 | Shop at ECS Tuning | ||||
| 09 | Upper rear panel | MARINEBLAU | 2 | 52108175753 | $69.47 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | SANDBEIGE | 2 | 52108175754 | $84.29 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | LAVENDELGRAU | 2 | 52108175755 | $69.47 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | DUNKELGRUEN | 2 | 52108189101 | $70.87 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | TOBACCOBRAUN | 2 | 52108260363 | $70.87 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | PEARLBEIGE | 2 | 52108260364 | $70.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, woolen velours/Vavona wood Model without wooden covers |
B7=Yes |
|||||||||
| 09 | Upper rear panel | GRAU | 2 | 52108175745 | $84.29 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | ANTHRAZIT | 2 | 52108175746 | $69.47 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | MARINEBLAU | 2 | 52108175747 | $89.56 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | LAVENDELGRAU | 2 | 52108175749 | $69.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, woolen velours/Vavona wood MODEL WITH WOODEN COVER |
B7=Yes |
|||||||||
| 09 | Upper rear panel | GRAU | 2 | 52108175763 | $84.29 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | ANTHRAZIT | 2 | 52108175764 | $69.47 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | MARINEBLAU | 2 | 52108175765 | $69.47 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | LAVENDELGRAU | 2 | 52108175767 | $69.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Softleather, root wood or Buffalo leather/Bubinga or Buffalo leather, root wood Model without wooden covers |
N6=Yes N8=Yes P1=Yes P2=Yes P3=Yes |
|||||||||
| 09 | Upper rear panel | PEARLBEIGE | 2 | 09/1998 | 52108260368 | $132.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Softleather Bubinga or Softleather, root wood or Buffalo leather/Bubinga or Buffalo leather, root wood Model without wooden covers |
N6=Yes N8=Yes N9=Yes P1=Yes P2=Yes P3=Yes |
|||||||||
| 09 | Upper rear panel | GRAU | 2 | 52108175757 | $135.69 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | SCHWARZ | 2 | 52108175758 | $135.69 | +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | MARINEBLAU | 2 | 52108175759 | $119.41 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | SANDBEIGE | 2 | 52108175760 | $135.69 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | LAVENDELGRAU | 2 | 52108175761 | $119.41 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Softleather Bubinga or Softleather, root wood or Buffalo leather/Bubinga or Buffalo leather, root wood MODEL WITH WOODEN COVER |
N6=Yes N8=Yes N9=Yes P1=Yes P2=Yes P3=Yes |
|||||||||
| 09 | Upper rear panel | GRAU | 2 | 52108175768 | $126.36 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | SCHWARZ | 2 | 52108175769 | $126.36 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | MARINEBLAU | 2 | 52108175770 | $119.41 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | SANDBEIGE | 2 | 52108175771 | $126.36 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | LAVENDELGRAU | 2 | 52108175772 | $119.41 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | DUNKELGRUEN | 2 | 52108189105 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Upper rear panel | TOBACCOBRAUN | 2 | 52108260372 | $162.94 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Upper rear panel | PEARLBEIGE | 2 | 52108260373 | $162.94 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Wooden strip | NUSSBAUM | 2 | 52108160480 | $183.76 | ENDED, +core | Shop at ECS Tuning | |||
| 11 | Backrest adjustment gearbox | 2 | 52108175055 | $103.56 | Shop at ECS Tuning | |||||
| MODEL WITH MEMORY ONLY APPLIES TO DRIVER'S SIDE |
||||||||||
| 12 | Actuator f upper backrest adjustment | 1 | 67668352262 | $215.60 | Shop at ECS Tuning | |||||
| MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 12 | Actuator f upper backrest adjustment | 1 | 67318352263 | $221.04 | Shop at ECS Tuning | |||||
| 13 | Flex.shaft vertical seat adjuster left | 2 | 52108175056 | $19.11 | Shop at ECS Tuning | |||||
| 14 | Repair kit clamps | 4 | 52107240386 | Shop at ECS Tuning | ||||||
| 15 | Clip | 4 | 52108175054 | $2.29 | Shop at ECS Tuning | |||||
| 16 | Mounting parts set | 1 | 52108197043 | ENDED | Shop at ECS Tuning | |||||
| 17 | Holder | 2 | 04/1998 | 52108242781 | $6.18 | Shop at ECS Tuning | ||||
| 18 | Sound insulation | 2 | 04/1998 | 52108248237 | $1.54 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
