Seat, frt, Contour seat upholstery&cover for BMW 7 Series E38 750iLP (2001)

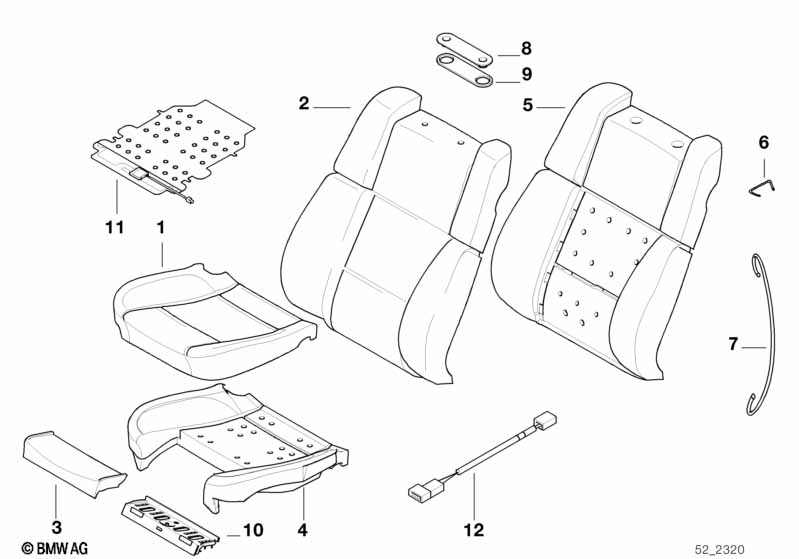

This Seat, frt, Contour seat upholstery&cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Model with seat heating ALSO FOR VEHICLES WITHOUT Seat heating For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
||||||||
| For vehicles with Contour seat, front, electr. with memory and All leather "Club" |
S457A=Yes R9=Yes |
|||||||||
| 01 | Seat cover leather | R9SW SCHWARZ | 2 | 03/2000 | 52107017155 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | R9TT GRAU | 2 | 03/2000 | 52107017156 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | R9SN SANDBEIGE | 2 | 03/2000 | 52107017157 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | R9OZ OZEANBLAU | 2 | 03/2000 | 52107017158 | $708.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory and All leather "Ambiente" |
S457A=Yes V1=Yes |
|||||||||
| 01 | Seat cover leather | V1AG ANTHR.GRAU | 2 | 03/2000 | 52107017160 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | V1SN,V2SN BEIGE | 2 | 03/2000 | 52107017161 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | V1MO MORELLO | 2 | 03/2000 | 52107017162 | $708.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory and Fabric/Epingle leather/Vavona wood |
S457A=Yes B9=Yes |
|||||||||
| 01 | Seat cover cloth | 0542 GRAU | 2 | 09/1994 | 52108191906 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0543 ANTHRAZIT | 2 | 09/1994 | 52108191907 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0544 DKL.GRUEN | 2 | 09/1994 | 52108191908 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0545 PAST.GRUEN | 2 | 09/1994 | 52108191909 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory and Leather Mont./basic equipm. or Standard leather, root wood |
S457A=Yes N6=Yes N8=Yes |
|||||||||
| 01 | Seat cover leather | N6OY,O7OY PEARL | 2 | 09/1998 | 52108249632 | $705.08 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6WY,N8WY TOBAC | 2 | 09/1998 | 52108249634 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6TT GRAU | 2 | 09/1998 | 52108254398 | $705.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6SW,N8SW SCHW | 2 | 09/1998 | 52108254399 | $705.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6DL,N8DL BLAU | 2 | 09/1998 | 52108254400 | $733.77 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6SN,O7SN BEIGE | 2 | 09/1998 | 52108254401 | $705.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6MK,N8MK GRAU | 2 | 09/1998 | 52108254402 | $733.77 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | N6EG,N8EG GRUEN | 2 | 09/1998 | 52108254403 | $733.77 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory and All leather "Club" |
S457A=Yes R9=Yes |
|||||||||
| 02 | Cover backrest, leather | R9SW SCHWARZ | 2 | 03/2000 | 52107017164 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | R9TT GRAU | 2 | 03/2000 | 52107017165 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | R9SN SANDBEIGE | 2 | 03/2000 | 52107017166 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | R9OZ OZEANBLAU | 2 | 03/2000 | 52107017167 | $708.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory and All leather "Ambiente" |
S457A=Yes V1=Yes |
|||||||||
| 02 | Cover backrest, leather | V1AG ANTHR.GRAU | 2 | 03/2000 | 52107017169 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | V1SN,V2SN BEIGE | 2 | 03/2000 | 52107017170 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | V1MO MORELLO | 2 | 03/2000 | 52107017171 | $708.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory and Fabric/Epingle leather/Vavona wood |
S457A=Yes B9=Yes |
|||||||||
| 02 | Cover backrest cloth | 0542 GRAU | 2 | 09/1994 | 52108191922 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0543 ANTHRAZIT | 2 | 09/1994 | 52108191923 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0544 DKL.GRUEN | 2 | 09/1994 | 52108191924 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0545 PAST.GRUEN | 2 | 09/1994 | 52108191925 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory and Softleather Bubinga or Softleather, root wood |
S457A=Yes P4=Yes P5=Yes |
|||||||||
| 02 | Cover backrest, leather | P4TT,P5TT GRAU | 2 | 09/1998 | 52108255259 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | P4SW,P5SW SCHW. | 2 | 09/1998 | 52108255260 | $719.82 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | P4EG,P5EG GRÜN | 2 | 09/1998 | 52108255261 | $708.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory and Leather Mont./basic equipm. or Standard leather, root wood |
S457A=Yes N6=Yes N8=Yes |
|||||||||
| 02 | Cover backrest, leather | N6OY PEARLBEIGE | 2 | 09/1998 | 52108249636 | $836.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6WY TOBACCOBR. | 2 | 09/1998 | 52108249638 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6TT GRAU | 2 | 09/1998 | 52108254409 | $836.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6SW SCHWARZ | 2 | 09/1998 | 52108254410 | $836.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6DL MARINEBLAU | 2 | 09/1998 | 52108254411 | $733.77 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6SN SANDBEIGE | 2 | 09/1998 | 52108254412 | $836.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6MK LAVEND.GR. | 2 | 09/1998 | 52108254413 | $733.77 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6EG ENGL.GRÜN | 2 | 09/1998 | 52108254414 | $733.77 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 03 | Thigh support | 2 | 09/1994 | 52108162330 | $21.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Pad seat front | 2 | 09/1994 | 52108162329 | $150.27 | Shop at ECS Tuning | ||||
| 05 | Pad seat backrest | 2 | 09/1994 | 52108162302 | $198.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 1,6X20X10,1 | X | 09/1994 | 52101945543 | $0.09 | Shop at ECS Tuning | |||
| 07 | Wire-strap | L=1800MM | X | 09/1994 | 52208129296 | $1.14 | Shop at ECS Tuning | |||
| 08 | Cover | SCHWARZ | 2 | 09/1994 | 52108169457 | $8.69 | Shop at ECS Tuning | |||
| 08 | Cover | GRAU | 2 | 09/1994 | 52108189146 | $8.69 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | MARINEBLAU | 2 | 09/1994 | 52108189147 | $7.48 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | SANDBEIGE | 2 | 09/1994 | 52108189148 | $8.90 | Shop at ECS Tuning | |||
| 08 | Cover | LAVENDELGRAU | 2 | 09/1994 | 52108189149 | $5.08 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | DUNKELGRUEN | 2 | 09/1994 | 52108189150 | $7.48 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | PASTELLGRUEN | 2 | 09/1994 | 52108189151 | $5.08 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | TOBACCOBRAUN | 2 | 09/1994 | 52108260434 | $7.48 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | PEARLBEIGE | 2 | 09/1994 | 52108260435 | $7.48 | Shop at ECS Tuning | |||
| 09 | Covering Lower | 4 | 09/1994 | 52101838969 | $0.43 | Shop at ECS Tuning | ||||
| 10 | Carrier thigh support | 2 | 09/1994 | 52108191948 | $25.48 | Shop at ECS Tuning | ||||
| 12 | Adapter cable for seat heater | 2 | 09/1995 | 61129069761 | $77.25 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
