Contour seat, seat frame/covers for BMW 7 Series E38 740i (1998)

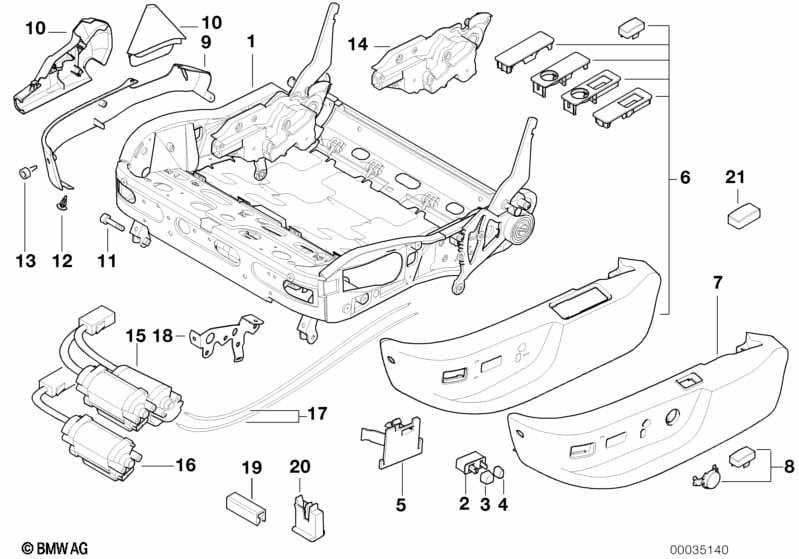

This Contour seat, seat frame/covers technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Contour seat, seat frame/covers
No. Description Supp. Qty  From   Up To  Part Number Price Notes
MODEL WITH MEMORY ONLY APPLIES TO
DRIVER'S SIDE
01 Seat frame 1 09/1994 52108162327 $1051.23 Shop at ECS Tuning
MODEL WITHOUT MEMORY
ONLY APPLIES TO CO-DRIVERS SIDE
01 Seat frame 1 09/1994 52108162328 $948.05 ENDED Shop at ECS Tuning
02 Switch seat adjusting front left 1 09/1995 61318368933 $154.88 Shop at ECS Tuning
03 Front left backrest adjustment button 1 09/1994 61311379367 $4.42 Shop at ECS Tuning
03 Front right backrest adjustment button 1 09/1994 61311379368 $4.42 Shop at ECS Tuning
04 Button f front seat adjustment 2 09/1994 61311379369 $4.42 Shop at ECS Tuning
05 Left supporting plate 1 09/1995 52108207405 $1.79 Shop at ECS Tuning
05 Carrier plate, right 1 09/1995 52108207406 $1.79 Shop at ECS Tuning
FOR
DRIVER AND CO-DRIVER
07 Covering outer left PAST.GRUEN 1 04/2001 52108207545 $38.78 ENDED, +core Shop at ECS Tuning
07 Covering outer right PAST.GRUEN 1 04/2001 52108207546 $36.56 ENDED, +core Shop at ECS Tuning
07 Covering outer SCHWARZ 1 52107058008 $45.18 Shop at ECS Tuning
07 Covering outer GRAU 1 52107058009 $45.18 Shop at ECS Tuning
07 Covering outer MARINEBLAU 1 52107058010 $45.18 Shop at ECS Tuning
07 Covering outer SANDBEIGE 1 52107058011 $45.18 Shop at ECS Tuning
07 Covering outer LAVENDELGRAU 1 52107058012 $45.18 ENDED, +core Shop at ECS Tuning
07 Covering outer TOBACCO 1 52107058014 $45.18 +core Shop at ECS Tuning
08 Set of covers PEARLBEIGE 2 52107025001 $11.43 ENDED Shop at ECS Tuning
08 Set of covers TOBACCOBRAUN 2 52107025002 $9.82 ENDED Shop at ECS Tuning
08 Set of covers GRAU 2 52108219226 $12.22 Shop at ECS Tuning
08 Set of covers SCHWARZ 2 52108219227 $12.22 Shop at ECS Tuning
08 Set of covers DUNKELGRUEN 2 52108219231 $11.43 ENDED Shop at ECS Tuning
08 Set of covers PASTELLGRUEN 2 52108219232 $11.38 ENDED Shop at ECS Tuning
FOR
DRIVER AND CO-DRIVER
09 Covering inner SCHWARZ 1 10/1997 52107058018 $21.32 +core Shop at ECS Tuning
09 Covering inner GRAU 1 10/1997 52107058019 $21.32 +core Shop at ECS Tuning
09 Covering inner SANDBEIGE 1 10/1997 52107058021 $21.32 +core Shop at ECS Tuning
09 Covering inner LAVENDELGRAU 1 10/1997 52107058022 ENDED Shop at ECS Tuning
For vehicles with
Pyrotechnical belt tensioner
FOR
DRIVER AND CO-DRIVER
=Yes
10 Covering left SCHWARZ 1 10/1997 52108238487 $5.60 Shop at ECS Tuning
10 Covering right SCHWARZ 1 10/1997 52108238488 $5.60 Shop at ECS Tuning
11 Fillister-head screw M6X20 ROT 8 09/1994 52108150020 $0.46 Shop at ECS Tuning
12 Clip 8 09/1994 52101873544 $0.20 Shop at ECS Tuning
13 Fillister-head screw M4X10 8 09/1994 07146977086 $0.48 Shop at ECS Tuning
14 Gearbox left 1 09/1994 52108192965 $215.12 Shop at ECS Tuning
14 Gearbox right 1 09/1994 52108192966 $215.12 Shop at ECS Tuning
MODEL WITH MEMORY ONLY APPLIES TO
DRIVER'S SIDE
15 Drive f vertical and backr.tilt adjustm. 1 09/1994 67318352193 $179.57 Shop at ECS Tuning
MODEL WITHOUT MEMORY
ONLY APPLIES TO CO-DRIVERS SIDE
15 Drive f vertical and backr.tilt adjustm. FA. RHW/BOSCH 1 09/1994 52108350152 $118.95 Shop at ECS Tuning
MODEL WITH MEMORY ONLY APPLIES TO
DRIVER'S SIDE
16 Drive, seat depht ajustment 1 09/1994 67318352196 $179.57 Shop at ECS Tuning
MODEL WITHOUT MEMORY
ONLY APPLIES TO CO-DRIVERS SIDE
16 Drive, seat depht ajustment 1 09/1994 67318352201 $92.39 Shop at ECS Tuning
17 Set of flexible shafts 2 09/1994 52108157408 $66.36 Shop at ECS Tuning
18 Mounting parts set 2 09/1994 52108157409 $30.86 Shop at ECS Tuning
19 Sliding jaw 2 09/1994 54128105582 $2.95 Shop at ECS Tuning
20 Clip GRUEN 2 09/1994 52108221512 $0.35 Shop at ECS Tuning
For vehicles with
Electr. front seat adjustment
S458A=Yes
21 Cover, switch, backrest top adjustment SCHWARZ 2 09/1995 52108207258 $3.38 Shop at ECS Tuning
21 Cover, switch, backrest top adjustment GRAU 2 09/1995 52108207259 $3.38 Shop at ECS Tuning
21 Cover, switch, backrest top adjustment MARINEBLAU 2 09/1995 52108207260 $2.90 ENDED Shop at ECS Tuning
21 Cover, switch, backrest top adjustment SANDBEIGE 2 09/1995 52108207261 $3.38 Shop at ECS Tuning
21 Cover, switch, backrest top adjustment ENGLISCHGRUEN 2 09/1995 52108207262 $2.90 ENDED Shop at ECS Tuning
21 Cover, switch, backrest top adjustment PASTELLGRUEN 2 09/1995 52108207551 $2.71 ENDED Shop at ECS Tuning
21 Cover, switch, backrest top adjustment LAVENDELGRAU 2 09/1995 52108207552 $3.38 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
