Front seat rail electrical/single parts for BMW 7 Series E38 730d (2001)

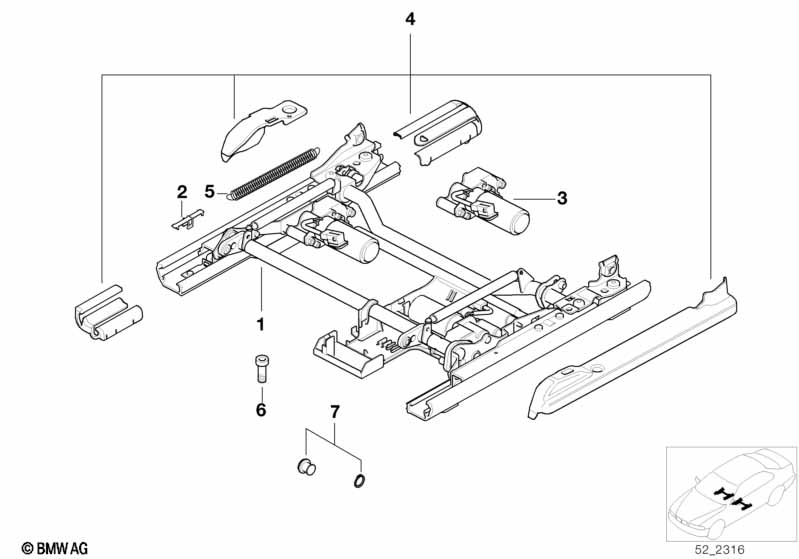

This Front seat rail electrical/single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
||||||||
| MODEL WITH MEMORY ONLY APPLIES TO DRIVER'S SIDE |
||||||||||
| 01 | Seat rail left | 1 | 52108207203 | $571.20 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 01 | Seat rail right | 1 | 52108207404 | $571.20 | Shop at ECS Tuning | |||||
| 02 | Stopper | 2 | 09/1994 | 52108170537 | $3.27 | Shop at ECS Tuning | ||||
| 02 | Stopper | 2 | 09/1995 | 52108207702 | $1.72 | ENDED | Shop at ECS Tuning | |||
| MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 03 | Drive f longitudinal and tilt adjustment | 1 | 09/1994 | 67318352191 | $82.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory MODEL WITH MEMORY |
=Yes |
|||||||||
| 03 | Drive f longitudinal and tilt adjustment | 1 | 09/1994 | 67318352192 | $179.57 | +core | Shop at ECS Tuning | |||
| 04 | Cover | GRAU | 2 | 09/1995 | 52108217314 | $33.68 | Shop at ECS Tuning | |||
| 04 | Cover | SCHWARZ | 2 | 09/1995 | 52108217315 | $33.68 | Shop at ECS Tuning | |||
| 04 | Cover | LAVENDELGRAU | 2 | 09/1995 | 52108217316 | $33.68 | Shop at ECS Tuning | |||
| 04 | Cover | SANDBEIGE | 2 | 09/1995 | 52108217317 | $33.68 | Shop at ECS Tuning | |||
| 04 | Cover | PASTELLGRUEN | 2 | 09/1995 | 52108217318 | $30.43 | ENDED | Shop at ECS Tuning | ||
| 05 | Tension spring | 4 | 09/1994 | 52108157404 | $5.25 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M10 | 4 | 09/1994 | 52108162348 | $1.14 | Shop at ECS Tuning | |||
| 07 | Bush bearing set | 2 | 09/1995 | 52108231862 | $3.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
