Rear seat center armrest for BMW 7 Series E38 740d (2001)

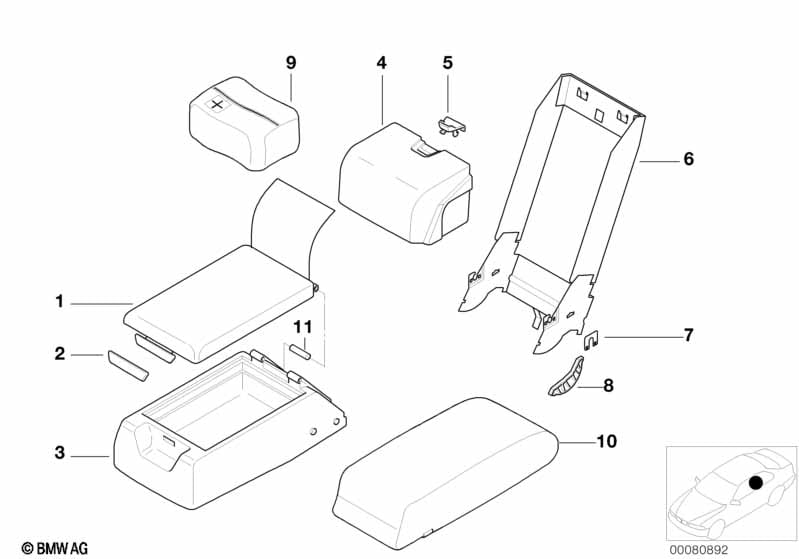

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood |
P2=Yes P3=Yes |
|||||||||
| 01 | Armrest upper leather | P2AT,P3AT ANTHR | 1 | 52208199800 | $351.54 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 01 | Armrest upper leather | B9TT,N6TT GRAU | 1 | 52208199791 | $305.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | B9AT,N6SW SCHW. | 1 | 52208199793 | $305.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6DL,N8DL BLAU | 1 | 52208199794 | $305.72 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6MK,N8MK GRAU | 1 | 52208199796 | $305.72 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | B9EG,N6EG GRUEN | 1 | 52208199797 | $316.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 01 | Armrest upper leather | N6WY TOBACCO | 1 | 09/1998 | 52207008333 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | N6OY,O7OY PEARL | 1 | 09/1998 | 52207008334 | $305.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 01 | Armrest upper cloth | F4AT,F5AT ANTHR | 1 | 09/1998 | 52208253933 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper cloth | F4TT,F5TT GRAU | 1 | 09/1998 | 52208253934 | $241.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper cloth | F4DL,F5DL BLAU | 1 | 09/1998 | 52208253935 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Standard leather, montana |
P337A=Yes O7=Yes |
|||||||||
| 01 | Armrest upper leather | O7LG LIGHTGELB | 1 | 09/1999 | 52207901434 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory and All leather "Ambiente" |
S456A=Yes S457A=Yes V1=Yes |
|||||||||
| 01 | Armrest upper leather | V1AG ANTHR.GRAU | 1 | 03/2000 | 52207033988 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | V1SN,V2SN BEIGE | 1 | 03/2000 | 52207033989 | $316.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | V1MO MORELLO | 1 | 03/2000 | 52207033990 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Standard leather, montana |
N6=Yes N8=Yes O7=Yes |
|||||||||
| 01 | Armrest upper leather | N6SN,N8SN BEIGE | 1 | 52208199795 | $305.72 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory and All leather "Club" |
S456A=Yes S457A=Yes R9=Yes |
|||||||||
| 01 | Armrest upper leather | R9SW SCHWARZ | 1 | 03/2000 | 52207033992 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | R9TT GRAU | 1 | 03/2000 | 52207033993 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | R9SN SANDBEIGE | 1 | 03/2000 | 52207033994 | $370.13 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | R9OZ OZEANBLAU | 1 | 03/2000 | 52207033995 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover | SCHWARZ | 1 | 52208177059 | $8.32 | Shop at ECS Tuning | ||||
| 02 | Cover | NUSSBAUM | 1 | 52208177060 | $58.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood |
P2=Yes P3=Yes |
|||||||||
| 03 | Armrest lower leather | P2AT,P3AT ANTHR | 1 | 52208199830 | $488.81 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 03 | Armrest lower leather | B9TT,N6TT GRAU | 1 | 52208199821 | $435.57 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | B9AT,N6SW SCHW. | 1 | 52208199823 | $435.57 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6DL,N8DL BLAU | 1 | 52208199824 | $451.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6MK,N8MK GRAU | 1 | 52208199826 | $451.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | 0565,0571 GRAU | 1 | 52208199832 | $488.81 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N9SW,P1SW SCHW. | 1 | 52208199833 | $501.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 03 | Armrest lower leather | N6WY TOBACCO | 1 | 09/1998 | 52207008335 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | N6OY,O7OY PEARL | 1 | 09/1998 | 52207008336 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 03 | Armrest lower cloth | F4AT,F5AT ANTHR | 1 | 09/1998 | 52208253937 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower cloth | F4TT,F5TT GRAU | 1 | 09/1998 | 52208253938 | $316.94 | ENDED | Shop at ECS Tuning | ||
| 03 | Armrest lower cloth | F4DL,F5DL BLAU | 1 | 09/1998 | 52208253939 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Standard leather, montana |
P337A=Yes O7=Yes |
|||||||||
| 03 | Armrest lower leather | O7LG LIGHTGELB | 1 | 09/1999 | 52207901488 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory and All leather "Ambiente" |
S456A=Yes S457A=Yes V1=Yes |
|||||||||
| 03 | Armrest lower leather | V1AG ANTHR.GRAU | 1 | 03/2000 | 52207033997 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | V1SN,V2SN BEIGE | 1 | 03/2000 | 52207033998 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | V1MO MORELLO | 1 | 03/2000 | 52207033999 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Standard leather, montana |
N6=Yes N8=Yes O7=Yes |
|||||||||
| 03 | Armrest lower leather | N6SN,N8SN BEIGE | 1 | 52208199825 | $435.57 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory and All leather "Club" |
S456A=Yes S457A=Yes R9=Yes |
|||||||||
| 03 | Armrest lower leather | R9SW SCHWARZ | 1 | 03/2000 | 52207034001 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | R9TT GRAU | 1 | 03/2000 | 52207034002 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | R9SN SANDBEIGE | 1 | 03/2000 | 52207034003 | $501.00 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | R9OZ OZEANBLAU | 1 | 03/2000 | 52207034004 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood |
P2=Yes P3=Yes |
|||||||||
| 04 | Storing partition rear | P2AT,P3AT ANTHR | 1 | 52208177129 | $200.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 04 | Storing partition rear | B9TT,N6TT GRAU | 1 | 52208177124 | $275.04 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6SW,N8SW SCHW. | 1 | 52208177125 | $275.04 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6DL,N8DL BLAU | 1 | 52208177126 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6MK,N8MK GRAU | 1 | 52208177128 | $184.14 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6WY TOBACCOBR. | 1 | 52208260494 | $235.48 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6OY PEARL | 1 | 52208260495 | $235.48 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 04 | Storing partition rear | F4AT,F5AT ANTHR | 1 | 09/1998 | 52208253899 | $150.66 | ENDED | Shop at ECS Tuning | ||
| 04 | Storing partition rear | F4TT,F5TT GRAU | 1 | 09/1998 | 52208253900 | $150.66 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | F4DL,F5DL BLAU | 1 | 09/1998 | 52208253901 | $158.08 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory and All leather "Ambiente" |
S456A=Yes S457A=Yes V1=Yes |
|||||||||
| 04 | Storing partition rear | V1AG ANTHR.GRAU | 1 | 03/2000 | 52207034006 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | V1SN,V2SN BEIGE | 1 | 03/2000 | 52207034007 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | V1MO MORELLO | 1 | 03/2000 | 52207034008 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood or Standard leather, montana |
N6=Yes N8=Yes O7=Yes |
|||||||||
| 04 | Storing partition rear | N6SN,N8SN BEIGE | 1 | 52208177127 | $275.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory and All leather "Club" |
S456A=Yes S457A=Yes R9=Yes |
|||||||||
| 04 | Storing partition rear | R9SW SCHWARZ | 1 | 03/2000 | 52207034010 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | R9TT GRAU | 1 | 03/2000 | 52207034011 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | R9SN SANDBEIGE | 1 | 03/2000 | 52207034012 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | R9OZ OZEANBLAU | 1 | 03/2000 | 52207034013 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Softleather Bubinga or Softleather, root wood or Softleather Bubinga or Softleather, root wood |
N9=Yes P1=Yes P4=Yes P5=Yes |
|||||||||
| 04 | Storing partition rear | N9TT,P1TT GRAU | 1 | 52208177136 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N9SW,P1SW SCHW. | 1 | 52208177137 | $184.14 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N9DL,P1DL BLAU | 1 | 52208177138 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N9SN,P1SN BEIGE | 1 | 52208177139 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N9MK,P1MK GRAU | 1 | 52208177140 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | P4EG,P5EG GRUEN | 1 | 52208183133 | $184.14 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | P4SK,P5SK GRUEN | 1 | 52208183134 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 05 | Lock | 1 | 52208191981 | $11.70 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 52208125867 | $231.15 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Covering left | 1 | 52208191979 | $6.97 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 52208191980 | $6.97 | Shop at ECS Tuning | |||||
| 08 | Stopper | 2 | 52208191978 | $8.24 | Shop at ECS Tuning | |||||
| 09 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| 11 | Split pin, center arm rest | MAL HINTEN | 2 | 52208261084 | $11.70 | Shop at ECS Tuning | ||||
