Rear seat center armrest for BMW 7 Series E38 735i (2001)

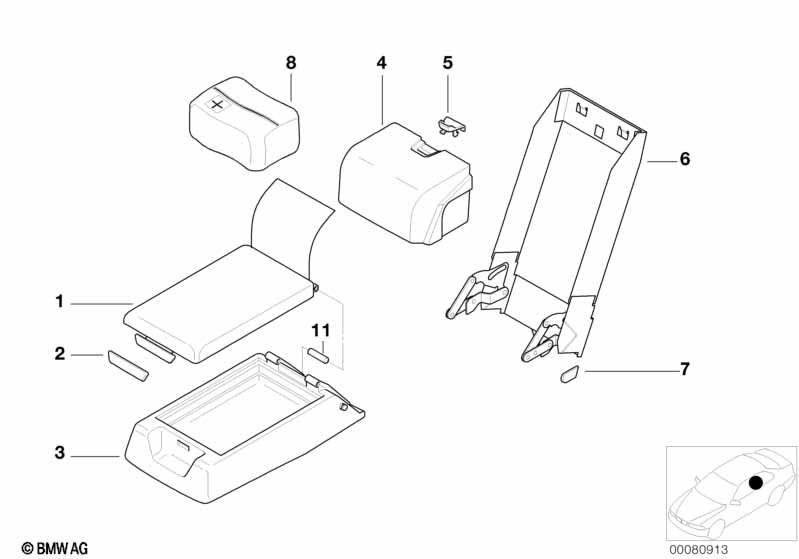

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Refer to "Help - abbreviations" in EPC OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK |
|||||||||
| For vehicles with All leather "Ambiente" |
V1=Yes |
|||||||||
| 01 | Armrest upper leather | V1AG ANTHR.GRAU | 1 | 03/2000 | 52207035060 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | V1SN,V2SN BEIGE | 1 | 03/2000 | 52207035061 | $316.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | V1MO MORELLO | 1 | 03/2000 | 52207035062 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather "Club" |
R9=Yes |
|||||||||
| 01 | Armrest upper leather | R9SW SCHWARZ | 1 | 03/2000 | 52207035064 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | R9TT GRAU | 1 | 03/2000 | 52207035065 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | R9SN SANDBEIGE | 1 | 03/2000 | 52207035066 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | R9OZ OZEANBLAU | 1 | 03/2000 | 52207035067 | $351.54 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood UPHOLSTERY LEATHER BUFFALO |
P2=Yes P3=Yes |
|||||||||
| 01 | Armrest upper leather | P2AT,P3AT ANTHR | 1 | 52208199860 | $351.54 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 01 | Armrest upper cloth | F4AT,F5AT ANTHR | 1 | 09/1998 | 52208253920 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper cloth | F4TT,F5TT GRAU | 1 | 09/1998 | 52208253921 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Armrest upper cloth | F4DL,F5DL BLAU | 1 | 09/1998 | 52208253922 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 01 | Armrest upper leather | N6OY,O7OY PEARL | 1 | 09/1998 | 52207009064 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Standard leather, montana |
P337A=Yes O7=Yes |
|||||||||
| 01 | Armrest upper leather | O7LG LIGHTGELB | 1 | 09/1999 | 52207901512 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 01 | Armrest upper leather | B9TT,N6TT GRAU | 1 | 52208199851 | $305.72 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6SW,N8SW SCHW. | 1 | 52208199853 | $305.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6DL,N8DL BLAU | 1 | 52208199854 | $316.94 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6SN,N8SN BEIGE | 1 | 52208199855 | $305.72 | +core | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6MK,N8MK GRAU | 1 | 52208199856 | $305.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | B9EG,N6EG GRUEN | 1 | 52208199857 | $316.94 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest upper leather | N6WY,O7WY TOBAC | 1 | 09/1998 | 52207009066 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover | SCHWARZ | 1 | 52208177059 | $8.32 | Shop at ECS Tuning | ||||
| 02 | Cover | NUSSBAUM | 1 | 52208177060 | $58.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with All leather "Ambiente" |
V1=Yes |
|||||||||
| 03 | Armrest lower leather | V1AG ANTHR.GRAU | 1 | 03/2000 | 52207035069 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | V1SN,V2SN BEIGE | 1 | 03/2000 | 52207035070 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | V1MO MORELLO | 1 | 03/2000 | 52207035071 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather "Club" |
R9=Yes |
|||||||||
| 03 | Armrest lower leather | R9SW SCHWARZ | 1 | 03/2000 | 52207035073 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | R9TT GRAU | 1 | 03/2000 | 52207035074 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | R9SN SANDBEIGE | 1 | 03/2000 | 52207035075 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower leather | R9OZ OZEANBLAU | 1 | 03/2000 | 52207035076 | $488.81 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood |
P2=Yes P3=Yes |
|||||||||
| 03 | Armrest lower leather | P2AT,P3AT ANTHR | 1 | 52208199890 | $488.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 03 | Armrest lower cloth | F4AT,F5AT ANTHR | 1 | 09/1998 | 52208253924 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower cloth | F4TT,F5TT GRAU | 1 | 09/1998 | 52208253926 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Armrest lower cloth | F4DL,F5DL BLAU | 1 | 09/1998 | 52208253927 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 03 | Armrest lower leather | N6OY,O7OY PEARL | 1 | 09/1998 | 52207009751 | $435.57 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Standard leather, montana |
P337A=Yes O7=Yes |
|||||||||
| 03 | Armrest lower leather | O7LG LIGHTGELB | 1 | 09/1999 | 52207901522 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 03 | Armrest lower leather | B9TT,N6TT GRAU | 1 | 52208199881 | $435.57 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6SW,N8SW SCHW. | 1 | 52208199883 | $451.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6DL,N8DL BLAU | 1 | 52208199884 | $451.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6SN,O7SN BEIGE | 1 | 52208199885 | $435.57 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6MK,N8MK GRAU | 1 | 52208199886 | $451.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | B9EG,N6EG GRUEN | 1 | 52208199887 | $451.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest lower leather | N6WY,O7WY TOBAC | 1 | 09/1998 | 52207009752 | $451.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather "Ambiente" |
V1=Yes |
|||||||||
| 04 | Storing partition rear | V1AG ANTHR.GRAU | 1 | 03/2000 | 52207034006 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | V1SN,V2SN BEIGE | 1 | 03/2000 | 52207034007 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | V1MO MORELLO | 1 | 03/2000 | 52207034008 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather "Club" |
R9=Yes |
|||||||||
| 04 | Storing partition rear | R9SW SCHWARZ | 1 | 03/2000 | 52207034010 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | R9TT GRAU | 1 | 03/2000 | 52207034011 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | R9SN SANDBEIGE | 1 | 03/2000 | 52207034012 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | R9OZ OZEANBLAU | 1 | 03/2000 | 52207034013 | $229.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Buffalo leather/Bubinga or Buffalo leather, root wood |
P2=Yes P3=Yes |
|||||||||
| 04 | Storing partition rear | P2AT,P3AT ANTHR | 1 | 52208177129 | $200.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth or Diagonal rep cloth |
F4=Yes F5=Yes |
|||||||||
| 04 | Storing partition rear | F4AT,F5AT ANTHR | 1 | 09/1998 | 52208253899 | $150.66 | ENDED | Shop at ECS Tuning | ||
| 04 | Storing partition rear | F4TT,F5TT GRAU | 1 | 09/1998 | 52208253900 | $150.66 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Storing partition rear | F4DL,F5DL BLAU | 1 | 09/1998 | 52208253901 | $158.08 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, root wood |
N6=Yes N8=Yes |
|||||||||
| 04 | Storing partition rear | B9TT,N6TT GRAU | 1 | 52208177124 | $275.04 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6SW,N8SW SCHW. | 1 | 52208177125 | $275.04 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6DL,N8DL BLAU | 1 | 52208177126 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6SN,N8SN BEIGE | 1 | 52208177127 | $275.04 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6MK,N8MK GRAU | 1 | 52208177128 | $184.14 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6WY TOBACCOBR. | 1 | 52208260494 | $235.48 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Storing partition rear | N6OY PEARL | 1 | 52208260495 | $235.48 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Lock | 1 | 52208191981 | $11.70 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 52208172115 | $111.60 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Covering left | SCHWARZ | 1 | 52208192375 | $3.67 | Shop at ECS Tuning | ||||
| 07 | Covering right | SCHWARZ | 1 | 52208192376 | $3.67 | Shop at ECS Tuning | ||||
| 08 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| 09 | Split pin, center arm rest | MAL HINTEN | 2 | 52208261084 | $11.70 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
