Front seat for BMW 8 Series E31 840i (1996)

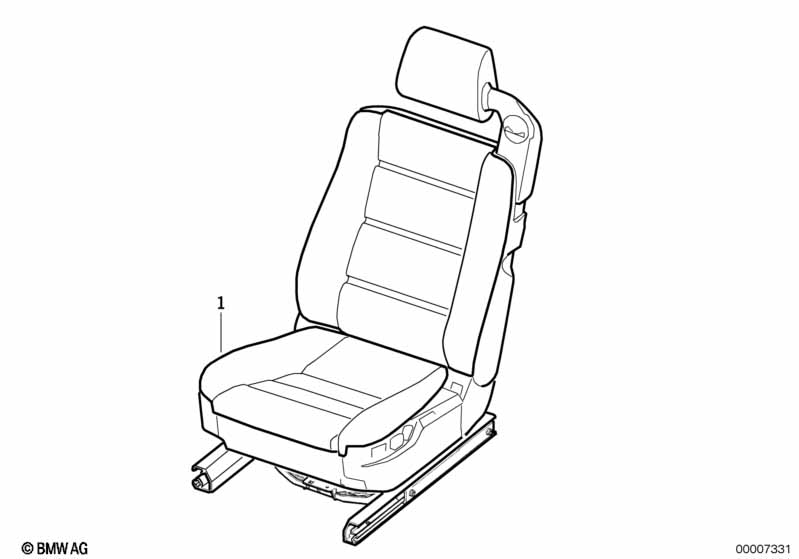

This Front seat technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | WHEN ORDERING ALWAYS INDICATE ORDER NO. OR CHASSIS NO. only applies to VEHICLES WITH AND WITHOUT HEATED SEAT VEHICLES WITH AND WITHOUT LORDOSIS |
|||||||||
| 01 | Seat cloth front left | 0346 ANTHRAZIT | 1 | 09/1996 | 52109064155 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front right | 0346 ANTHRAZIT | 1 | 09/1996 | 52109064156 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front left | 0347 SILBERGRAU | 1 | 09/1996 | 52109064157 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front right | 0347 SILBERGRAU | 1 | 09/1996 | 52109064158 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front left | 0348 ULTRAMARIN | 1 | 09/1996 | 52109064159 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front right | 0348 ULTRAMARIN | 1 | 09/1996 | 52109064160 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front left | 0349 PERGAMENT | 1 | 09/1996 | 52109064161 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front right | 0349 PERGAMENT | 1 | 09/1996 | 52109064162 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front left | 0350 BRASIL | 1 | 09/1996 | 52109064163 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cloth front right | 0350 BRASIL | 1 | 09/1996 | 52109064164 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 01 | Seat leather front left | 0226 SCHWARZ | 1 | 11/1991 | 52109064165 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0226 SCHWARZ | 1 | 11/1991 | 52109064166 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0351 SILB.-DUNK | 1 | 11/1991 | 52109064167 | $4876.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat ruche leather front right | 0351 SIL.-DUNKE | 1 | 11/1991 | 52109064168 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0352 SIL.-SCHWA | 1 | 11/1991 | 52109064169 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0352 SIL.-SCHWA | 1 | 11/1991 | 52109064170 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0355 ULTRAMARIN | 1 | 11/1991 | 52109064171 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0355 ULTRAMARIN | 1 | 11/1991 | 52109064172 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0356 PERG.-DKL. | 1 | 11/1991 | 52109064173 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0356 PERG.-DUNK | 1 | 11/1991 | 52109064174 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0357 PERG./BRAS | 1 | 11/1991 | 52109064175 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0357 PERG.-BRAS | 1 | 11/1991 | 52109064176 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0360 BRASIL | 1 | 11/1991 | 52109064177 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0360 BRASIL | 1 | 11/1991 | 52109064178 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0361 KARMESINRT | 1 | 11/1991 | 52109064179 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0361 KARMESINRT | 1 | 11/1991 | 52109064180 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0353 SILB.HE/DU | 1 | 11/1991 | 52109064181 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0353 SIL.-HE/DU | 1 | 11/1991 | 52109064182 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0354 SIL.-HE/SC | 1 | 11/1991 | 52109064183 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0354 SIL.-HE/SC | 1 | 11/1991 | 52109064184 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0358 PER-HEL/DK | 1 | 11/1991 | 52109064185 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0358 PER.-HE/DU | 1 | 11/1991 | 52109064186 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0359 PER-HE/BRA | 1 | 11/1991 | 52109064187 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0359 PER.-HE/BR | 1 | 11/1991 | 52109064188 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER WALKNAPPA ONLY APPLIES TO COLOR-LINE |
||||||||||
| 01 | Seat leather front left | 0489 BARBADOSGR | 1 | 11/1991 | 52109064189 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0489 BARBADOSGR | 1 | 11/1991 | 52109064190 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0489 TOBAGOBLAU | 1 | 11/1991 | 52109064191 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0489 TOBAGOBLAU | 1 | 11/1991 | 52109064192 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0490 CALYPSOROT | 1 | 11/1991 | 52109064193 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0490 CALYPSOROT | 1 | 11/1991 | 52109064194 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO | ||||||||||
| 01 | Seat leather front left | 0180 ANTHRAZIT | 1 | 11/1991 | 52109064195 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0180 ANTHRAZIT | 1 | 11/1991 | 52109064196 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat leather front left | 0362 BRASIL | 1 | 11/1991 | 52109064197 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat ruche leather front right | 0362 BRASIL | 1 | 11/1991 | 52109064198 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
