Electr.adjust.seat single components for BMW 7 Series E38 740i (1996)

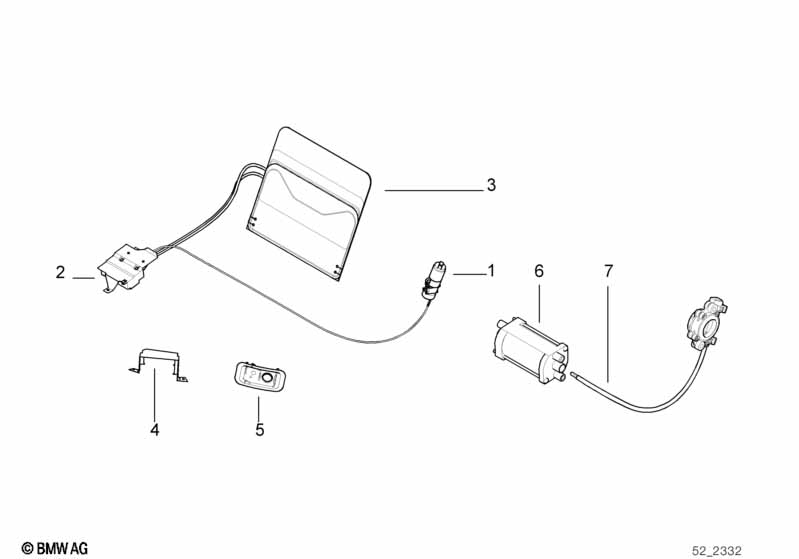

This Electr.adjust.seat single components technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive unit lordosis pad | 1 | 09/1994 | 07/1999 | 52208197035 | $109.49 | ENDED | Shop at ECS Tuning | ||
| 02 | Valve unit | 1 | 09/1994 | 07/1999 | 52208197036 | $320.17 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Left lordosis pad | 1 | 09/1994 | 52208197037 | $36.31 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Right lordosis pad | 1 | 09/1994 | 52208197038 | $36.31 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Bracket left | 1 | 09/1994 | 52208186669 | $12.22 | Shop at ECS Tuning | ||||
| 04 | Bracket right | 1 | 09/1994 | 52208186670 | $12.22 | Shop at ECS Tuning | ||||
| 05 | Switch covering left | GRAU | 1 | 09/1994 | 52208177367 | $8.45 | Shop at ECS Tuning | |||
| 05 | Switch covering right | GRAU | 1 | 09/1994 | 52208177368 | $7.97 | Shop at ECS Tuning | |||
| 05 | Switch covering left | SCHWARZ | 1 | 09/1994 | 52208177369 | $8.45 | Shop at ECS Tuning | |||
| 05 | Switch covering right | SCHWARZ | 1 | 09/1994 | 52208177370 | $9.25 | Shop at ECS Tuning | |||
| 05 | Switch covering left | MARINEBLAU | 1 | 09/1994 | 52208177371 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering right | MARINEBLAU | 1 | 09/1994 | 52208177372 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering left | SANDBEIGE | 1 | 09/1994 | 52208177373 | $9.25 | Shop at ECS Tuning | |||
| 05 | Switch covering right | SANDBEIGE | 1 | 09/1994 | 52208177374 | $7.97 | Shop at ECS Tuning | |||
| 05 | Switch covering left | LAVENDELGRAU | 1 | 09/1994 | 52208177375 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering right | LAVENDELGRAU | 1 | 09/1994 | 52208177376 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering left | DUNKELGRUEN | 1 | 09/1994 | 52208177377 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering right | DUNKELGRUEN | 1 | 09/1994 | 52208177378 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering left | PASTELLGRUEN | 1 | 09/1994 | 52208177379 | ENDED | Shop at ECS Tuning | |||
| 05 | Switch covering right | PASTELLGRUEN | 1 | 09/1994 | 52208177380 | ENDED | Shop at ECS Tuning | |||
| 05 | Switch covering right | TOBACCOBRAUN | 1 | 09/1994 | 52208260482 | $7.97 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering left | TOBACCOBRAUN | 1 | 09/1994 | 52208260483 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering right | PEARLBEIGE | 1 | 09/1994 | 52208260484 | $6.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Switch covering left | PEARLBEIGE | 1 | 09/1994 | 52208260485 | $7.97 | ENDED | Shop at ECS Tuning | ||
| 06 | Drive f vertical and backr.tilt adjustm. | FA. RHW/BOSCH | 2 | 09/1994 | 52108350152 | $118.95 | Shop at ECS Tuning | |||
| 07 | Gearbox left | 2 | 09/1994 | 52208203285 | $71.34 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Gearbox right | 2 | 09/1994 | 52208203286 | $71.34 | ENDED, +core | Shop at ECS Tuning |
