BMW sports seat frame electrical for BMW 3 Series E36 M3 (1995)

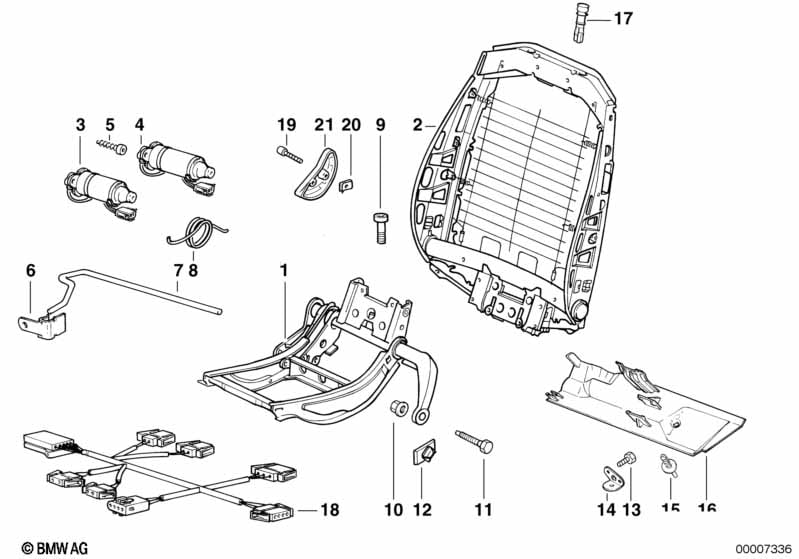

This BMW sports seat frame electrical technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left upper part of seat mechanism | 1 | 09/1994 | 52108201613 | $585.96 | Shop at ECS Tuning | ||||
| 01 | Right upper part of seat mechanism | 1 | 09/1994 | 52108201614 | $585.96 | Shop at ECS Tuning | ||||
| 02 | Backrest frame | 2 | 09/1994 | 52108187998 | $60.16 | Shop at ECS Tuning | ||||
| 03 | Actuator vertical seat adjuster rear | 1 | 09/1994 | 67318357058 | $124.03 | Shop at ECS Tuning | ||||
| 04 | Actuator, backrest adjustment | 1 | 09/1994 | 67318353226 | $116.19 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | 4 | 09/1994 | 52108151153 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 2 | 09/1994 | 12521285014 | $0.92 | Shop at ECS Tuning | ||||
| 07 | Spring for left verticl adjustment | 1 | 09/1994 | 52108157471 | $12.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Spring for right verticl adjustment | 1 | 09/1994 | 52108157472 | $12.73 | ENDED | Shop at ECS Tuning | |||
| 08 | Springlatch | 2 | 09/1994 | 52108157519 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Torx bolt | ISA M8X19 | 4 | 09/1994 | 52108161962 | $0.46 | Shop at ECS Tuning | |||
| 10 | Self-locking collar nut | M8-8-ZNS3 | 2 | 09/1994 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 10 | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/1994 | 07119905374 | Shop at ECS Tuning | ||||
| 11 | Screw | M8X49 | 2 | 09/1994 | 52108153031 | $2.29 | Shop at ECS Tuning | |||
| 12 | Bracket, plug connection white | 2 | 09/1994 | 61131378997 | $0.87 | Shop at ECS Tuning | ||||
| 13 | screw for plastic | TS5X12-ZNS3 | 2 | 09/1994 | 07147194471 | $0.34 | Shop at ECS Tuning | |||
| 14 | Protection cover bracket | 2 | 09/1994 | 52108165731 | $4.88 | Shop at ECS Tuning | ||||
| 15 | Expanding rivet, black | L=15MM | 2 | 09/1994 | 51111944537 | $0.30 | Shop at ECS Tuning | |||
| 16 | Left protection cover | 1 | 09/1994 | 52108168875 | $13.55 | Shop at ECS Tuning | ||||
| 16 | Right protection cover | 1 | 09/1994 | 52108168876 | $13.55 | ENDED | Shop at ECS Tuning | |||
| 17 | Guide bush | 4 | 09/1994 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 18 | Wiring set f left seat adjustm./lordosis | 2 | 09/1994 | 61118353948 | $95.65 | Shop at ECS Tuning | ||||
| 19 | Fillister head self-tapping screw | ST3,5X19 | 2 | 09/1994 | 07119907905 | $0.09 | Shop at ECS Tuning | |||
| 20 | Body nut | B3,9-6 | 2 | 09/1994 | 63261366551 | $1.65 | Shop at ECS Tuning | |||
| 21 | Left seat belt buckle guide | SCHWARZ | 1 | 52102259295 | $33.62 | +core | Shop at ECS Tuning | |||
| 21 | Right seat belt buckle guide | SCHWARZ | 1 | 52102259296 | $33.62 | ENDED, +core | Shop at ECS Tuning | |||
| 21 | Left seat belt buckle guide | GRAU | 1 | 09/1993 | 52102261757 | ENDED | Shop at ECS Tuning | |||
| 21 | Right seat belt buckle guide | GRAU | 1 | 09/1993 | 52102261758 | ENDED | Shop at ECS Tuning | |||
| 21 | Left seat belt buckle guide | HELLGRAU | 1 | 09/1993 | 52102261763 | ENDED | Shop at ECS Tuning | |||
| 21 | Right seat belt buckle guide | HELLGRAU | 1 | 09/1993 | 52102261764 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
