Seat, rear, uphlstry/cover, load-through for BMW 3 Series E36 325tds (1999)

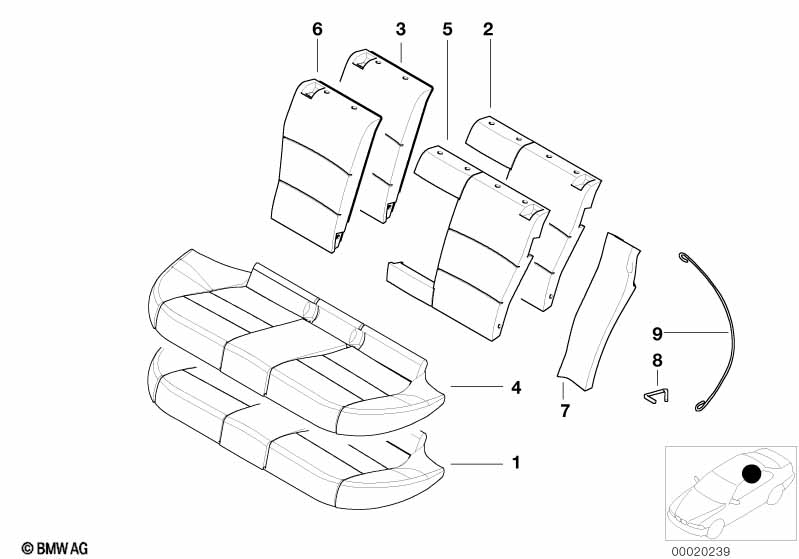

This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Foam plastic seat | 1 | 52208156338 | ENDED | Shop at ECS Tuning | |||||
| 02 | Foam plastic part left backrest | 1 | 52208173909 | ENDED | Shop at ECS Tuning | |||||
| 03 | Foam section, backrest, right | 1 | 52208173910 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 04 | Seat cover cloth | C4AT ANTHRAZIT | 1 | 52208192119 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C4TT GRAU | 1 | 52208192120 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C4SN BEIGE | 1 | 52208192121 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C4MA BLAUVIOLET | 1 | 52208192122 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 04 | Seat cover leather | P8SW SCHWARZ | 1 | 52208192132 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P8TH HELLGRAU | 1 | 52208192133 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P8SN BEIGE | 1 | 52208192134 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P8MA BLAUVIOLET | 1 | 52208192135 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P8SG SAFRANGELB | 1 | 52208192136 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana Soft Bicolor |
P8=Yes |
|||||||||
| 04 | Seat cover leather | P8ST STAHLBLAU | 1 | 09/1998 | 52208256675 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Seat cover leather | P8SX MEERGRUEN | 1 | 09/1998 | 52208256676 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft Special series, Exclusive Edition |
P8=Yes |
|||||||||
| 04 | Seat cover leather | P8TD TANINROT | 1 | 09/1997 | 52208234773 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Seat cover leather | P8SK PAST.GRUEN | 1 | 09/1997 | 52208234774 | $760.40 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 04 | Seat cover cloth | C3AT ANTHRAZIT | 1 | 52208192112 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C3TT GRAU | 1 | 52208192113 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C3SN BEIGE | 1 | 52208192114 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 04 | Seat cover cloth | D6AT ANTHRAZIT | 1 | 52208192123 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | D6TT GRAU | 1 | 52208192124 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | D6GD KLASS.ROT | 1 | 52208192125 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | D6TK TUERKIS | 1 | 52208192126 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | D6ME ASCOTGRÜN | 1 | 52208234758 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 04 | Seat cover vinyl | K1SW SCHWARZ | 1 | 52208192116 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover vinyl | K1SN BEIGE | 1 | 52208192117 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Nappa Casual leather |
S481A=Yes P7=Yes |
|||||||||
| 04 | Seat cover leather | P7SW SCHWARZ | 1 | 52208192138 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P7TH HELLGRAU | 1 | 52208192139 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P7SN BEIGE | 1 | 52208192140 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | P7GD KLASS.ROT | 1 | 52208192141 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Nappa Casual leather Bicolor |
S481A=Yes P7=Yes |
|||||||||
| 04 | Seat cover leather | P7ST STAHLBLAU | 1 | 09/1998 | 52208256677 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Seat cover leather | P7SX MEERGRUEN | 1 | 09/1998 | 52208256678 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Nappa Casual leather Special series, Exclusive Edition |
S481A=Yes P7=Yes |
|||||||||
| 04 | Seat cover leather | P7TD TANINROT | 1 | 09/1997 | 52208234775 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Seat cover leather | P7SK PAST.GRUEN | 1 | 09/1997 | 52208234776 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Boa Boa" |
S481A=Yes E7=Yes |
|||||||||
| 04 | Seat cover cloth | E7AV AVUSBLAU | 1 | 09/1997 | 52202496001 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Seat cover cloth | E7ZR SIERRAROT | 1 | 09/1997 | 52202496002 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Seat cover cloth | E7TT GRAU | 1 | 09/1997 | 52208252287 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 04 | Seat cover cloth | C1AT ANTHRAZIT | 1 | 52208192128 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C1GD KLASS.ROT | 1 | 52208192129 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover cloth | C1TK TUERKIS | 1 | 52208192130 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 05 | Cover backrest cloth left | C4AT ANTHRAZIT | 1 | 52208192303 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C4TT GRAU | 1 | 52208192305 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C4SN BEIGE | 1 | 52208192307 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C4MA BLAUVIOLET | 1 | 52208192309 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 05 | Cover backrest cloth left | C3AT ANTHRAZIT | 1 | 52208192297 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C3TT GRAU | 1 | 52208192299 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C3SN BEIGE | 1 | 52208192301 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 05 | Cover backrest cloth left | D6AT ANTHRAZIT | 1 | 52208192273 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | D6TT GRAU | 1 | 52208192275 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | D6GD KLASS.ROT | 1 | 52208192277 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | D6TK TUERKIS | 1 | 52208192279 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 05 | Cover backrest vinyl left | K1SW SCHWARZ | 1 | 52208192281 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover backrest vinyl left | K1SN BEIGE | 1 | 52208192283 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Cloth "Boa Boa" |
S481A=Yes E7=Yes |
|||||||||
| 05 | Cover backrest cloth left | E7AV AVUSBLAU | 1 | 09/1997 | 52202496011 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover backrest cloth left | E7ZR SIERRAROT | 1 | 09/1997 | 52202496013 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover backrest cloth left | E7TT GRAU | 1 | 09/1997 | 52208252291 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Boa Boa" and Child seat FAMILY KIT |
E7=Yes =Yes |
|||||||||
| 05 | Cover backrest cloth left | E7OL OELBLAU | 1 | 52202492375 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Nappa Casual leather or Leather Montana Soft |
P7=Yes P8=Yes |
|||||||||
| 05 | Cover backrest leather left | P7SW,P8SW SCHW. | 1 | 52208192285 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather left | P7TH,P8TH GRAU | 1 | 52208192287 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather left | P7SN,P8SN BEIGE | 1 | 52208192289 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather left | P8MA BLAUVIOLET | 1 | 52208192291 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather left | P7GD KLASS.ROT | 1 | 52208192293 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather left | P8SG SAFRANGELB | 1 | 52208192295 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Nappa Casual leather or Leather Montana Soft Bicolor |
P7=Yes P8=Yes |
|||||||||
| 05 | Cover backrest leather left | P7ST,P8ST BLAU | 1 | 09/1998 | 52208256687 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover backrest leather left | P7SX,P8SX GRUEN | 1 | 09/1998 | 52208256689 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Nappa Casual leather or Leather Montana Soft Special series, Exclusive Edition |
P7=Yes P8=Yes |
|||||||||
| 05 | Cover backrest leather left | P7TD,P8TD ROT | 1 | 09/1997 | 52208234785 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover backrest leather left | P7SK,P8SK GRUEN | 1 | 09/1997 | 52208234787 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 05 | Cover backrest cloth left | C1AT ANTHRAZIT | 1 | 52208192311 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C1GD KLASS.ROT | 1 | 52208192313 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest cloth left | C1TK TUERKIS | 1 | 52208192315 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 06 | Cover backrest cloth right | C4AT ANTHRAZIT | 1 | 52208192304 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C4TT GRAU | 1 | 52208192306 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C4SN BEIGE | 1 | 52208192308 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C4MA BLAUVIOLET | 1 | 52208192310 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 06 | Cover backrest cloth right | C3AT ANTHRAZIT | 1 | 52208192298 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C3TT GRAU | 1 | 52208192300 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C3SN BEIGE | 1 | 52208192302 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 06 | Cover backrest cloth right | D6AT ANTHRAZIT | 1 | 52208192274 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | D6TT GRAU | 1 | 52208192276 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | D6GD KLASS.ROT | 1 | 52208192278 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | D6TK TUERKIS | 1 | 52208192280 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 06 | Cover backrest vinyl right | K1SW SCHWARZ | 1 | 52208192282 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest vinyl right | K1SN BEIGE | 1 | 52208192284 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Cloth "Boa Boa" |
S481A=Yes E7=Yes |
|||||||||
| 06 | Cover backrest cloth right | E7AV AVUSBLAU | 1 | 09/1997 | 52202496012 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Cover backrest cloth right | E7ZR SIERRAROT | 1 | 09/1997 | 52202496014 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Cover backrest cloth right | E7TT GRAU | 1 | 09/1997 | 52208242786 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Boa Boa" and Child seat FAMILY KIT |
E7=Yes =Yes |
|||||||||
| 06 | Cover backrest cloth right | E7OL OELBLAU | 1 | 52202492376 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Nappa Casual leather or Leather Montana Soft |
P7=Yes P8=Yes |
|||||||||
| 06 | Cover backrest leather right | P7SW,P8SW SCHW. | 1 | 52208192286 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest leather right | P7TH,P8TH GRAU | 1 | 52208192288 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest leather right | P7SN,P8SN BEIGE | 1 | 52208192290 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest leather right | P8MA BLAUVIOLET | 1 | 52208192292 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest leather right | P7GD KLASS.ROT | 1 | 52208192294 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest leather right | P8SG SAFRANGELB | 1 | 52208192296 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Nappa Casual leather or Leather Montana Soft Bicolor |
P7=Yes P8=Yes |
|||||||||
| 06 | Cover backrest leather right | P7ST,P8ST BLAU | 1 | 09/1998 | 52208256688 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | P7SX,P8SX GRUEN | 1 | 09/1998 | 52208256690 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Nappa Casual leather or Leather Montana Soft Special series, Exclusive Edition |
P7=Yes P8=Yes |
|||||||||
| 06 | Cover backrest leather right | P7TD,P8TD ROT | 1 | 09/1997 | 52208234786 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | P7SK,P8SK GRUEN | 1 | 09/1997 | 52208234788 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 06 | Cover backrest cloth right | C1AT ANTHRAZIT | 1 | 52208192312 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C1GD KLASS.ROT | 1 | 52208192314 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Cover backrest cloth right | C1TK TUERKIS | 1 | 52208192316 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 07 | Lateral trim panel left | C4AT ANTHRAZIT | 1 | 52208173961 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C4AT ANTHRAZIT | 1 | 52208173962 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | C4TT GRAU | 1 | 52208173963 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C4TT GRAU | 1 | 52208173964 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | C4SN BEIGE | 1 | 52208173965 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C4SN BEIGE | 1 | 52208173966 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | C4MA BLAUVIOLET | 1 | 52208173967 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C4MA BLAUVIOLET | 1 | 52208173968 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 07 | Lateral trim panel left | P8MA BLAUVIOLET | 1 | 52208173937 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P8MA BLAUVIOLET | 1 | 52208173938 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | P8SG SAFRANGELB | 1 | 52208192323 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P8SG SAFRANGELB | 1 | 52208192324 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | P8SW SCHWARZ | 1 | 52208197881 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P8SW SCHWARZ | 1 | 52208197882 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | P8TH GRAU | 1 | 52208197883 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P8TH GRAU | 1 | 52208197884 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | P8SN SANDBEIGE | 1 | 52208197885 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P8SN SANDBEIGE | 1 | 52208197886 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana Soft Bicolor |
P8=Yes |
|||||||||
| 07 | Lateral trim panel left | P8ST STAHLBLAU | 1 | 09/1998 | 52208256705 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P8ST STAHLBLAU | 1 | 09/1998 | 52208256706 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | P8SX MEERGRUEN | 1 | 09/1998 | 52208256707 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P8SX MEERGRUEN | 1 | 09/1998 | 52208256708 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft Special series, Exclusive Edition |
P8=Yes |
|||||||||
| 07 | Lateral trim panel left | P8TD TANINROT | 1 | 09/1997 | 52208235019 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P8TD TANINROT | 1 | 09/1997 | 52208235020 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | P8SK PAST.GRUEN | 1 | 09/1997 | 52208235021 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P8SK PAST.GRUEN | 1 | 09/1997 | 52208235022 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 07 | Lateral trim panel left | C3AT ANTHRAZIT | 1 | 52208173969 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C3AT ANTHRAZIT | 1 | 52208173970 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | C3TT GRAU | 1 | 52208173971 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C3TT GRAU | 1 | 52208173972 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | C3SN BEIGE | 1 | 52208173973 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C3SN BEIGE | 1 | 52208173974 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 07 | Lateral trim panel left | D6AT ANTHRAZIT | 1 | 52208173767 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | D6AT ANTHRAZIT | 1 | 52208173768 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | D6TT GRAU | 1 | 52208173771 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | D6TT GRAU | 1 | 52208173772 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | D6GD KLASS.ROT | 1 | 52208173773 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | D6GD KLASS.ROT | 1 | 52208173774 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | D6TK TUERKIS | 1 | 52208173775 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | D6TK TUERKIS | 1 | 52208173776 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 07 | Lateral trim panel left | K1SW SCHWARZ | 1 | 52208173975 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | K1SW SCHWARZ | 1 | 52208173976 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | K1SN BEIGE | 1 | 52208173977 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | K1SN BEIGE | 1 | 52208173978 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Nappa Casual leather |
S481A=Yes P7=Yes |
|||||||||
| 07 | Lateral trim panel left | C1SW,P7SW SCHW. | 1 | 52208173931 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C1SW P7SW SCHW. | 1 | 52208173932 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | P7TH GRAU | 1 | 52208173933 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P7TH GRAU | 1 | 52208173934 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | P7SN SANDBEIGE | 1 | 52208173935 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | P7SN SANDBEIGE | 1 | 52208173936 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel left | C1GD,P7GD ROT | 1 | 52208173939 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C1GD,P7GD ROT | 1 | 52208173940 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Nappa Casual leather Bicolor |
S481A=Yes P7=Yes |
|||||||||
| 07 | Lateral trim panel left | P7ST STAHLBLAU | 1 | 09/1998 | 52208256713 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P7ST STAHLBLAU | 1 | 09/1998 | 52208256714 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | P7SX MEERGRUEN | 1 | 09/1998 | 52208256715 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P7SX MEERGRUEN | 1 | 09/1998 | 52208256716 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Nappa Casual leather Special series, Exclusive Edition |
S481A=Yes P7=Yes |
|||||||||
| 07 | Lateral trim panel left | P7TD TANINROT | 1 | 09/1997 | 52208235027 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P7TD TANINROT | 1 | 09/1997 | 52208235028 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | P7SK PAST.GRUEN | 1 | 09/1997 | 52208235029 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | P7SK PAST.GRUEN | 1 | 09/1997 | 52208235030 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Boa Boa" |
S481A=Yes E7=Yes |
|||||||||
| 07 | Lateral trim panel left | E7AV,E7ZR SCHW. | 1 | 09/1997 | 52202496025 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | E7AV,E7ZR SCHW. | 1 | 09/1997 | 52202496026 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Boa Boa" and Child seat FAMILY KIT |
E7=Yes =Yes |
|||||||||
| 07 | Lateral trim panel left | E7OL OELBLAU | 1 | 52202492825 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | E7OL OELBLAU | 1 | 52202492826 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 07 | Lateral trim panel left | C1TK TUERKIS | 1 | 52208173941 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | C1TK TUERKIS | 1 | 52208173942 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Seat, rear, uphlstry/cover, load-through?
- This technical diagram illustrates the Seat, rear, uphlstry/cover, load-through within the Seats group for the 3 Series E36 325tds produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Foam plastic seat (Part #52208156338).
- Which models use the hardware listed in this Seat, rear, uphlstry/cover, load-through?
- The hardware and components featured in the Seat, rear, uphlstry/cover, load-through are specific to the 3 Series E36 325tds produced during 1999. These technical specifications ensure that parts like the Foam plastic seat (52208156338) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, uphlstry/cover, load-through assembly?
- Each item in the Seat, rear, uphlstry/cover, load-through corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Foam plastic seat by locating its position on the schematic, which then links to the official BMW part number 52208156338 for the Seats section.
