Rear seat center armrest for BMW 3 Series E36 325tds (1999)

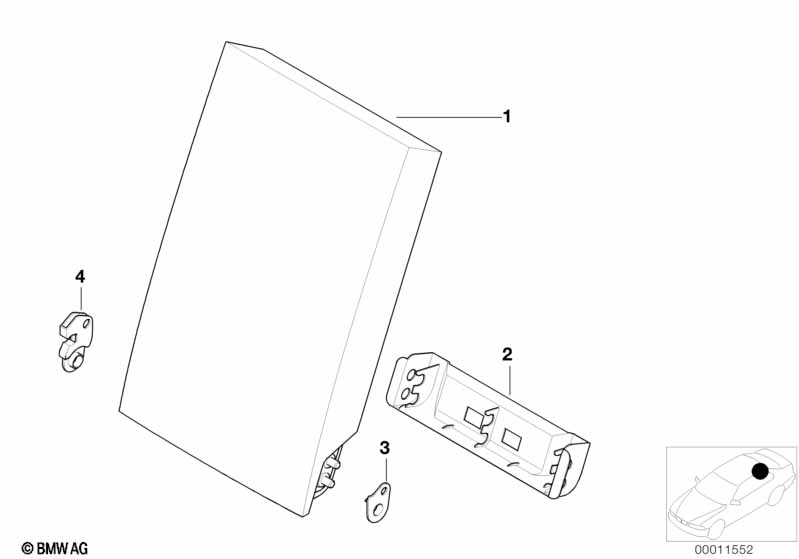

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ARMREST F SKI BAG ALSO FOR VEHICLES WITHOUT SKI BAG |
|||||||||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 01 | Armrest cloth | C3AT ANTHRAZIT | 1 | 52208202230 | ENDED | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | C3TT GRAU | 1 | 52208202231 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | C3SN BEIGE | 1 | 52208202232 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Armrest cloth | D6AT ANTHRAZIT | 1 | 52208202234 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | D6TT GRAU | 1 | 52208202235 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | D6GD KLASS.ROT | 1 | 52208202236 | ENDED | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | D6TK TUERKIS | 1 | 52208202237 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 01 | Armrest cloth | C4AT ANTHRAZIT | 1 | 52208202239 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | C4TT GRAU | 1 | 52208202240 | ENDED | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | C4MA BLAUVIOLET | 1 | 52208202241 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric, wool velours/sand-beige |
C4SN=Yes |
|||||||||
| 01 | Armrest cloth | C4SN BEIGE | 1 | 52208192248 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 01 | Armrest vinyl | K1SW SCHWARZ | 1 | 52208202254 | ENDED | Shop at ECS Tuning | ||||
| 01 | Armrest vinyl | K1SN SANDBEIGE | 1 | 52208202255 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Cloth "Boa Boa" |
S481A=Yes E7=Yes |
|||||||||
| 01 | Armrest cloth | E7AV,E7ZR SCHW. | 1 | 52202495953 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Nappa Casual leather or Leather Montana Soft |
P7=Yes P8=Yes |
|||||||||
| 01 | Armrest leather | C1AT,P7SW SCHW. | 1 | 52208202243 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | P7TH,P8TH GRAU | 1 | 52208202244 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | P7SN,P8SN BEIGE | 1 | 52208202245 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | C1GD,P7GD ROT | 1 | 52208202246 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | P7MA,P8MA BLAU | 1 | 52208202251 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | P7SG,P8SG GELB | 1 | 52208202252 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Nappa Casual leather or Leather Montana Soft Bicolor |
P7=Yes P8=Yes |
|||||||||
| 01 | Armrest leather | P7ST,P8ST BLAU | 1 | 09/1998 | 52208256700 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest leather | P7SX,P8SX GRUEN | 1 | 09/1998 | 52208256702 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Nappa Casual leather or Leather Montana Soft Special series, Exclusive Edition |
P7=Yes P8=Yes |
|||||||||
| 01 | Armrest leather | P7TD,P8TD ROT | 1 | 09/1997 | 52208235014 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest leather | P7SK,P8SK GRUEN | 1 | 09/1997 | 52208235016 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 01 | Armrest leather | C1AT,P7SW SCHW. | 1 | 52208202243 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | C1GD,P7GD ROT | 1 | 52208202246 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather | C1TK TUERKIS | 1 | 52208217349 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Cover | SCHWARZ | 1 | 52208202228 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left center mounting cover | SCHWARZ | 1 | 52208204865 | $3.67 | Shop at ECS Tuning | ||||
| 04 | Right center mounting cover | SCHWARZ | 1 | 52208204630 | $3.67 | Shop at ECS Tuning | ||||
| 05 | Bush left | SCHWARZ | 1 | 52208240737 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bush right | SCHWARZ | 1 | 52208240736 | ENDED | Shop at ECS Tuning | ||||
