Pad/seat pan of BMW sports seat for BMW 3 Series E36 323i (1999)

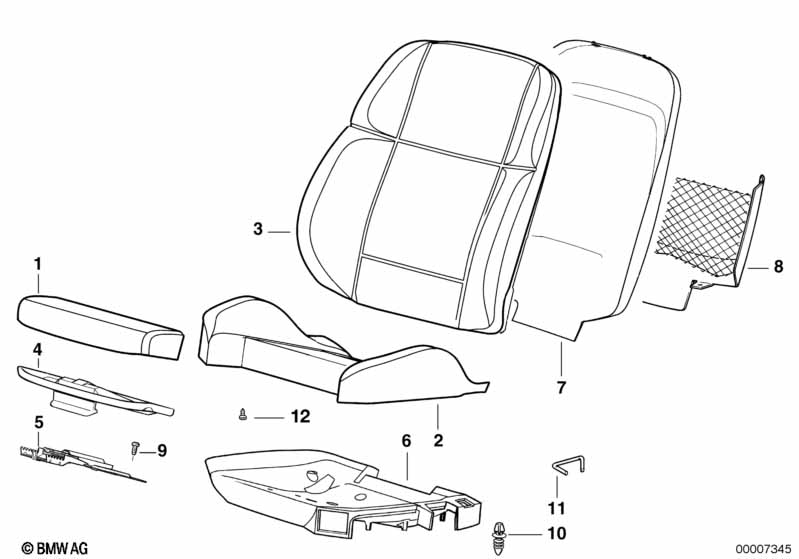

This Pad/seat pan of BMW sports seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thigh support upholstery | 2 | 52108122078 | $31.93 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pad seat front | 2 | 52108122076 | $113.89 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sensor mat f co-driver's seat identif. | 2 | 65776905024 | $124.53 | Shop at ECS Tuning | |||||
| -- | Trimming wire front | L=290MM | 2 | 52101821497 | $0.71 | ENDED | Shop at ECS Tuning | |||
| -- | Trimming wire rear | L=270MM | 2 | 52108135542 | $0.37 | Shop at ECS Tuning | ||||
| 03 | Pad seat backrest front | 2 | 52108192572 | $125.27 | Shop at ECS Tuning | |||||
| 04 | Supporting plate | 2 | 52108122077 | $49.19 | ENDED | Shop at ECS Tuning | ||||
| 05 | Holder for thigh support | 2 | 52108122075 | $24.27 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Seat pan left | SCHWARZ | 1 | 52108130667 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | SCHWARZ | 1 | 52108130668 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan left | GRAU | 1 | 52108166181 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | GRAU | 1 | 52108166182 | $75.73 | Shop at ECS Tuning | ||||
| 06 | Seat pan left | BEIGE | 1 | 52108166183 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | BEIGE | 1 | 52108166184 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan left | TUERKIS | 1 | 52108166185 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | TUERKIS | 1 | 52108166186 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan left | KLASSISCHROT | 1 | 52108166187 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | KLASSISCHROT | 1 | 52108166188 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan left | SAFRANGELB | 1 | 52108166191 | $57.20 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | SAFRANGELB | 1 | 52108166192 | $57.20 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan left | BLAUVIOLETT | 1 | 52108166193 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | BLAUVIOLETT | 1 | 52108166194 | $57.20 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan left | HELLGRAU | 1 | 52108166347 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat pan, right | HELLGRAU | 1 | 52108166348 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Rear panel | HELLGRAU | 2 | 52102266066 | $205.37 | ENDED | Shop at ECS Tuning | |||
| 07 | Rear panel | BLAUVIOLETT | 2 | 52102269840 | $198.59 | ENDED | Shop at ECS Tuning | |||
| 07 | Rear panel | SCHWARZ | 2 | 52108201675 | $162.16 | ENDED | Shop at ECS Tuning | |||
| 07 | Rear panel | BEIGE | 2 | 52108201676 | $152.89 | ENDED | Shop at ECS Tuning | |||
| 07 | Rear panel | SAFRANGELB | 2 | 52108201680 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Rear panel | KLASSISCHROT | 2 | 52108201884 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Rear panel | TUERKIS | 2 | 52108201885 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Luggage net | SCHWARZ | 2 | 52108202403 | $59.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Luggage net | SANDGRAU | 2 | 52108202404 | $59.29 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Luggage net | GRAU | 2 | 52108202405 | $59.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Luggage net | HELLGRAU | 2 | 52108202406 | $59.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Luggage net | BEIGE | 2 | 52108202407 | $59.29 | Shop at ECS Tuning | ||||
| 08 | Luggage net | KLASSISCHROT | 2 | 52108202408 | $59.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Luggage net | TUERKIS | 2 | 52108202409 | $55.80 | ENDED | Shop at ECS Tuning | |||
| 08 | Luggage net | BLAUVIOLETT | 2 | 52108202410 | $59.29 | Shop at ECS Tuning | ||||
| 08 | Luggage net | SAFRANGELB | 2 | 52108202411 | $55.80 | ENDED | Shop at ECS Tuning | |||
| 09 | Screw | M6X15,4 | 4 | 52108119276 | $0.58 | Shop at ECS Tuning | ||||
| 10 | Clamp | 4 | 52108130678 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Screw | 3,9X18 | X | 52108119279 | $0.35 | Shop at ECS Tuning | ||||
