Rear seat head restraint for BMW 3 Series E36 318i (1999)

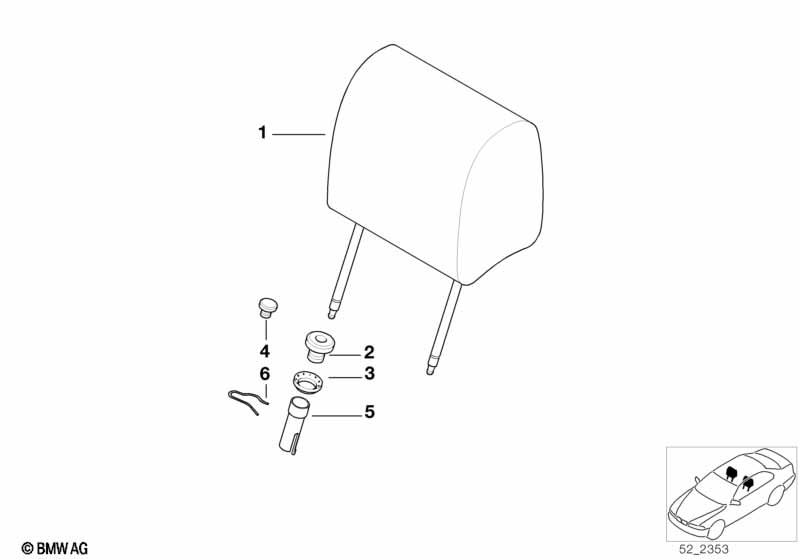

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Boa Boa" |
E7=Yes |
|||||||||
| 01 | Head rest cloth | E7AV,E7ZR SCHW. | 3 | 09/1997 | 52202496020 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Boa Boa" FAMILY KIT |
E7=Yes |
|||||||||
| 01 | Head rest cloth | E7OL OELBLAU | 3 | 09/1996 | 52202492818 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 01 | Head rest cloth | C4AT ANTHRAZIT | 3 | 52208202211 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | C4TT GRAU | 3 | 52208202212 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | C4MA BLAUVIOLET | 3 | 52208202213 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 01 | Headrest imitation leather | K1SW SCHWARZ | 3 | 52208202226 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest imitation leather | K1SN BEIGE | 3 | 52208202227 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Head rest cloth | D6AT ANTHRAZIT | 3 | 52208202206 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | D6TT GRAU | 3 | 52208202207 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | D6GD KLASS.ROT | 3 | 52208202208 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | D6TK TUERKIS | 3 | 52208202209 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 01 | Head rest cloth | C3AT ANTHRAZIT | 3 | 52208202202 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | C3TT GRAU | 3 | 52208202203 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Head rest cloth | C3SN BEIGE | 3 | 52208202204 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 01 | Headrest leather | P8SW SCHWARZ | 3 | 52208202220 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest leather | P8TH HELLGRAU | 3 | 52208202221 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest leather | P8SN BEIGE | 3 | 52208202222 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | P8MA BLAUVIOLET | 3 | 52208202223 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest leather | P8SG SAFRANGELB | 3 | 52208202224 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana Soft Special series, Exclusive Edition |
P8=Yes |
|||||||||
| 01 | Headrest leather | P8TD TANINROT | 3 | 09/1997 | 52208235039 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | P8SK PAST.GRUEN | 3 | 09/1997 | 52208235040 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft Bicolor |
P8=Yes |
|||||||||
| 01 | Headrest leather | P8ST STAHLBLAU | 3 | 09/1998 | 52208256725 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | P8SX MEERGRUEN | 3 | 09/1998 | 52208256726 | +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Nappa Casual leather |
S481A=Yes P7=Yes |
|||||||||
| 01 | Headrest leather | P7SW SCHWARZ | 3 | 52208202215 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest leather | P7TH HELLGRAU | 3 | 52208202216 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest leather | P7SN BEIGE | 3 | 52208202217 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headrest leather | P7GD KLASS.ROT | 3 | 52208202218 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Nappa Casual leather Special series, Exclusive Edition |
S481A=Yes P7=Yes |
|||||||||
| 01 | Headrest leather | P7TD TANINROT | 3 | 09/1997 | 52208235035 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | P7SK PAST.GRUEN | 3 | 09/1997 | 52208235036 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Nappa Casual leather Bicolor |
S481A=Yes P7=Yes |
|||||||||
| 01 | Headrest leather | P7ST STAHLBLAU | 3 | 09/1998 | 52208256721 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | P7SX MEERGRUEN | 3 | 09/1998 | 52208256722 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 01 | Head rest cloth | C1AT ANTHRAZIT | 3 | 52208217694 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Cover | SCHWARZ | 6 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 03 | Covering Lower | 6 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 04 | Cap | SCHWARZ | 6 | 52208204628 | ENDED | Shop at ECS Tuning | ||||
| 05 | Guide | SCHWARZ | 4 | 52208133495 | $1.87 | Shop at ECS Tuning | ||||
| 06 | Spring washer | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
