Front seat frame mech./el./singl.parts for BMW 5 Series E39 528i (2000)
This Front seat frame mech./el./singl.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Seat frame | 1 | 52108150883 | $739.75 | Shop at ECS Tuning | |||||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Seat frame | 1 | 52108150915 | $842.93 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Switch seat adjusting front left | 1 | 61318368933 | $154.88 | Shop at ECS Tuning | |||||
| 02 | Switch seat adjusting front right | 1 | 61318368934 | $154.88 | Shop at ECS Tuning | |||||
| 03 | Button f front seat adjustment | 2 | 61311379369 | $4.42 | Shop at ECS Tuning | |||||
| 04 | Front left backrest adjustment button | 1 | 61311379367 | $4.42 | Shop at ECS Tuning | |||||
| 04 | Front right backrest adjustment button | 1 | 61311379368 | $4.42 | Shop at ECS Tuning | |||||
| 05 | Set of covers | GRAU | 1 | 52108219226 | $12.22 | Shop at ECS Tuning | ||||
| 05 | Set of covers | SCHWARZ | 1 | 52108219227 | $12.22 | Shop at ECS Tuning | ||||
| 05 | Set of covers | MARINEBLAU | 1 | 52108219228 | $12.22 | ENDED | Shop at ECS Tuning | |||
| 05 | Set of covers | SANDBEIGE | 1 | 52108219230 | $12.22 | ENDED | Shop at ECS Tuning | |||
| FOR DRIVER AND CO-DRIVER |
||||||||||

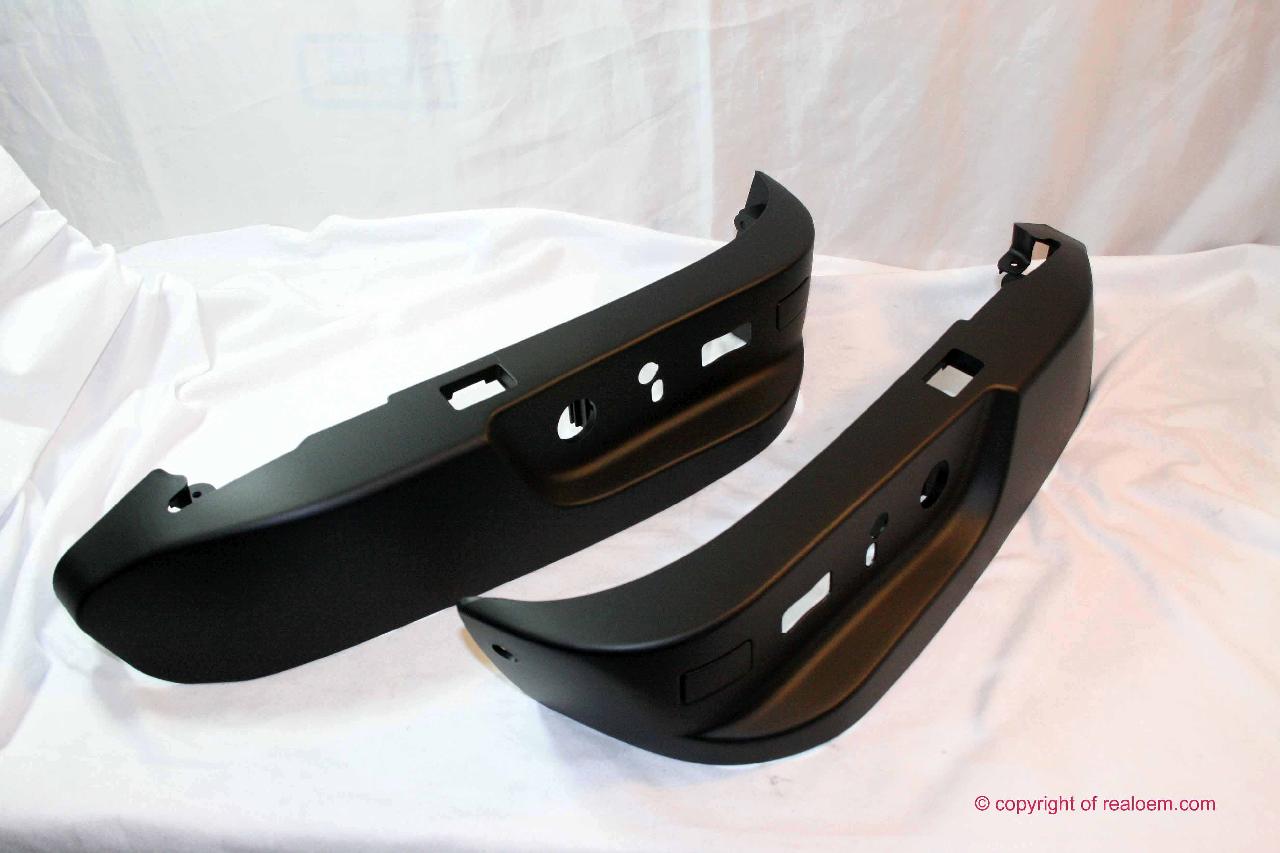

| 06 | Covering outer | SCHWARZ | 1 | 10/1997 | 52107058008 | $45.18 | Shop at ECS Tuning | |||

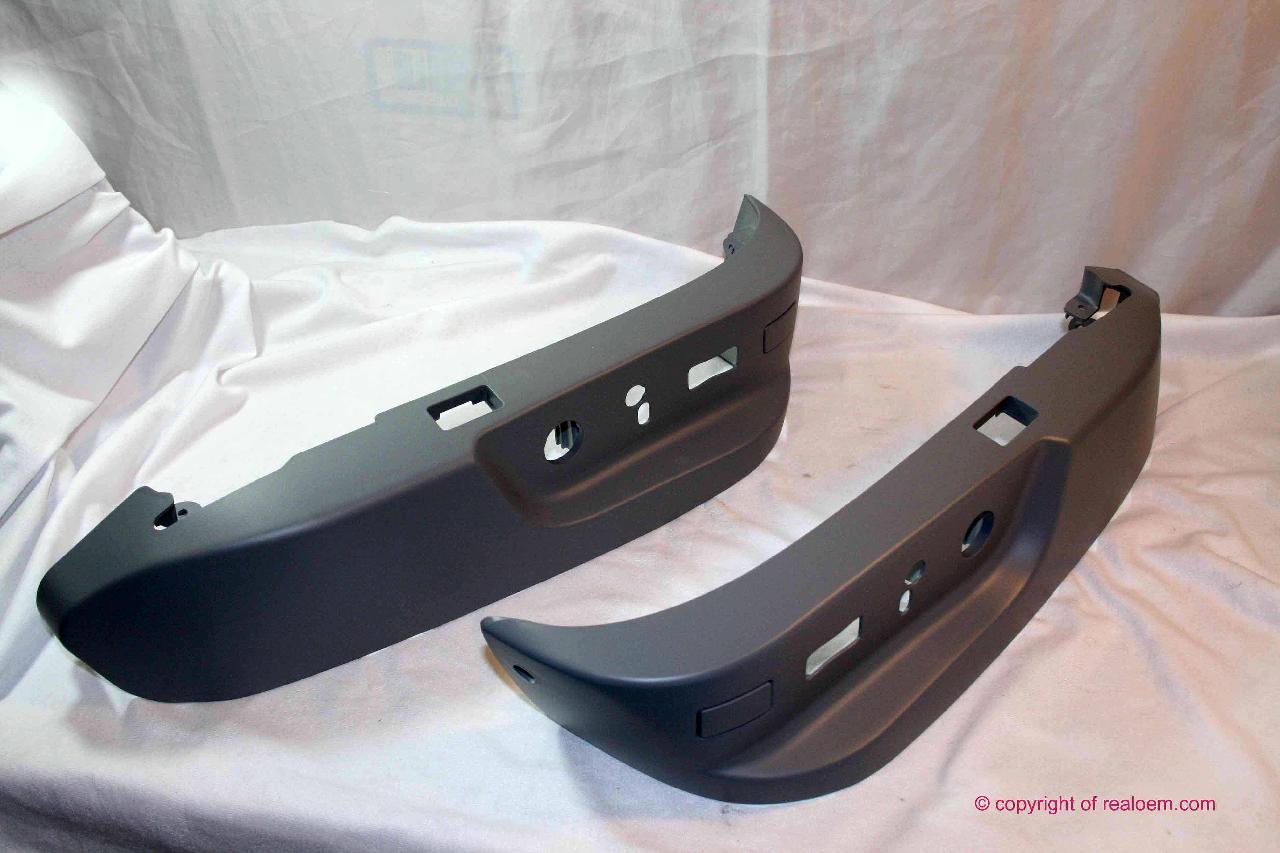

| 06 | Covering outer | GRAU | 1 | 10/1997 | 52107058009 | $45.18 | Shop at ECS Tuning | |||
| 06 | Covering outer | MARINEBLAU | 1 | 10/1997 | 52107058010 | $45.18 | Shop at ECS Tuning | |||

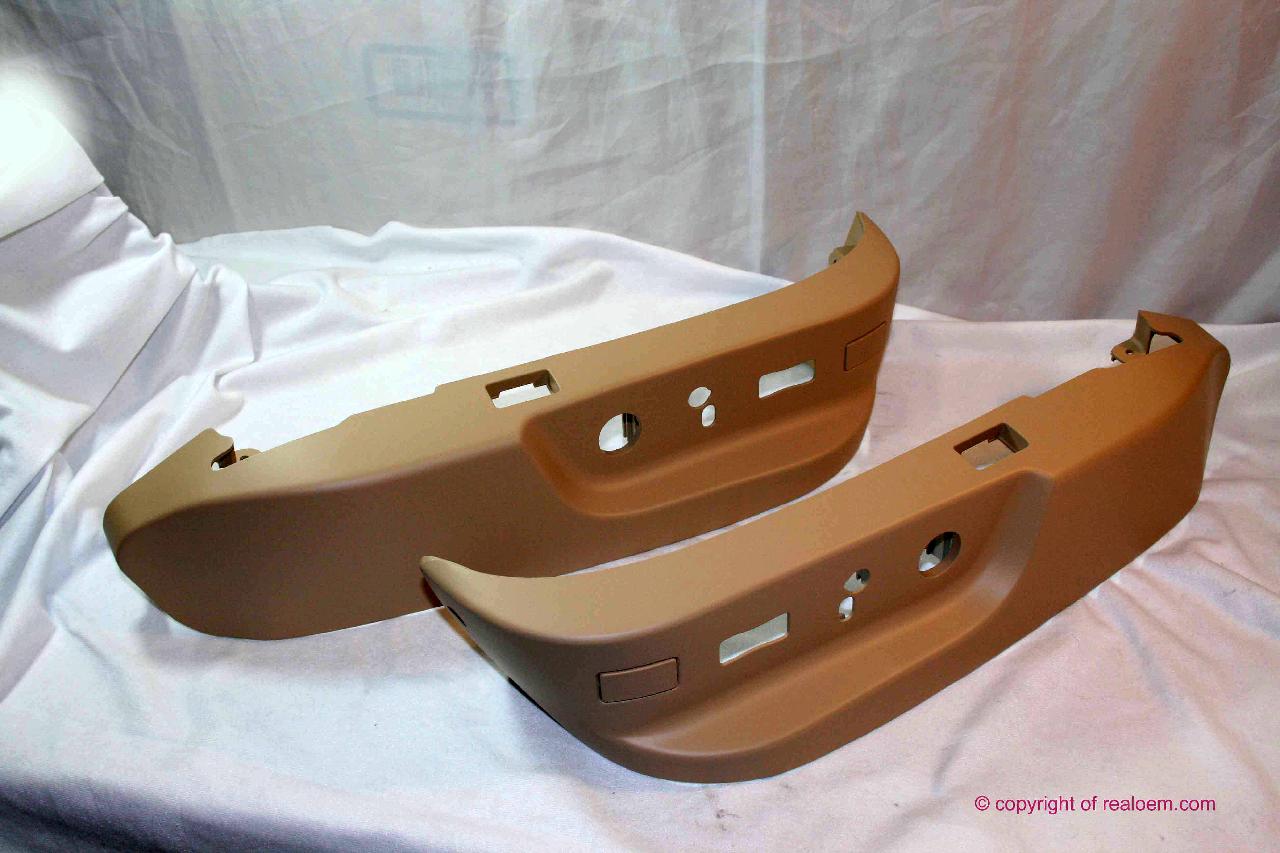

| 06 | Covering outer | SANDBEIGE | 1 | 10/1997 | 52107058011 | $45.18 | Shop at ECS Tuning | |||
| 06 | Covering outer | TOBACCO | 1 | 10/1997 | 52107058014 | $45.18 | +core | Shop at ECS Tuning | ||
| 07 | Covering inner | SCHWARZ | 1 | 10/1997 | 52107058018 | $21.32 | +core | Shop at ECS Tuning | ||
| 07 | Covering inner | GRAU | 1 | 10/1997 | 52107058019 | $21.32 | +core | Shop at ECS Tuning | ||
| only applies to PYROTECHNICAL BELT TENSIONER |
||||||||||
| 07 | Covering inner | SANDBEIGE | 1 | 10/1997 | 04/2001 | 52107058021 | $21.32 | +core | Shop at ECS Tuning | |
| 07 | Covering inner | SANDBEIGE | 1 | 10/1997 | 04/2001 | 52107058021 | $21.32 | +core | Shop at ECS Tuning | |
| 08 | Covering left | SCHWARZ | 1 | 10/1997 | 52108238487 | $5.60 | Shop at ECS Tuning | |||
| 08 | Covering right | SCHWARZ | 1 | 10/1997 | 52108238488 | $5.60 | Shop at ECS Tuning | |||
| 09 | Fillister-head screw | M6X20 ROT | 4 | 52108150020 | $0.46 | Shop at ECS Tuning | ||||
| 10 | Clip | 6 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 11 | Fillister-head screw | M4X10 | 8 | 07146977086 | $0.48 | Shop at ECS Tuning | ||||
| 12 | Gearbox left | 1 | 52108192965 | $215.12 | Shop at ECS Tuning | |||||
| 12 | Gearbox right | 1 | 52108192966 | $215.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 13 | Drive f vertical and backr.tilt adjustm. | FA. RHW/BOSCH | 1 | 52108350152 | $118.95 | Shop at ECS Tuning | ||||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 13 | Drive f vertical and backr.tilt adjustm. | 1 | 67318352193 | $179.57 | Shop at ECS Tuning | |||||
| 14 | Set of flexible shafts | 2 | 52108157408 | $66.36 | Shop at ECS Tuning | |||||
| 15 | Mounting parts set | 2 | 52108157409 | $30.86 | Shop at ECS Tuning | |||||

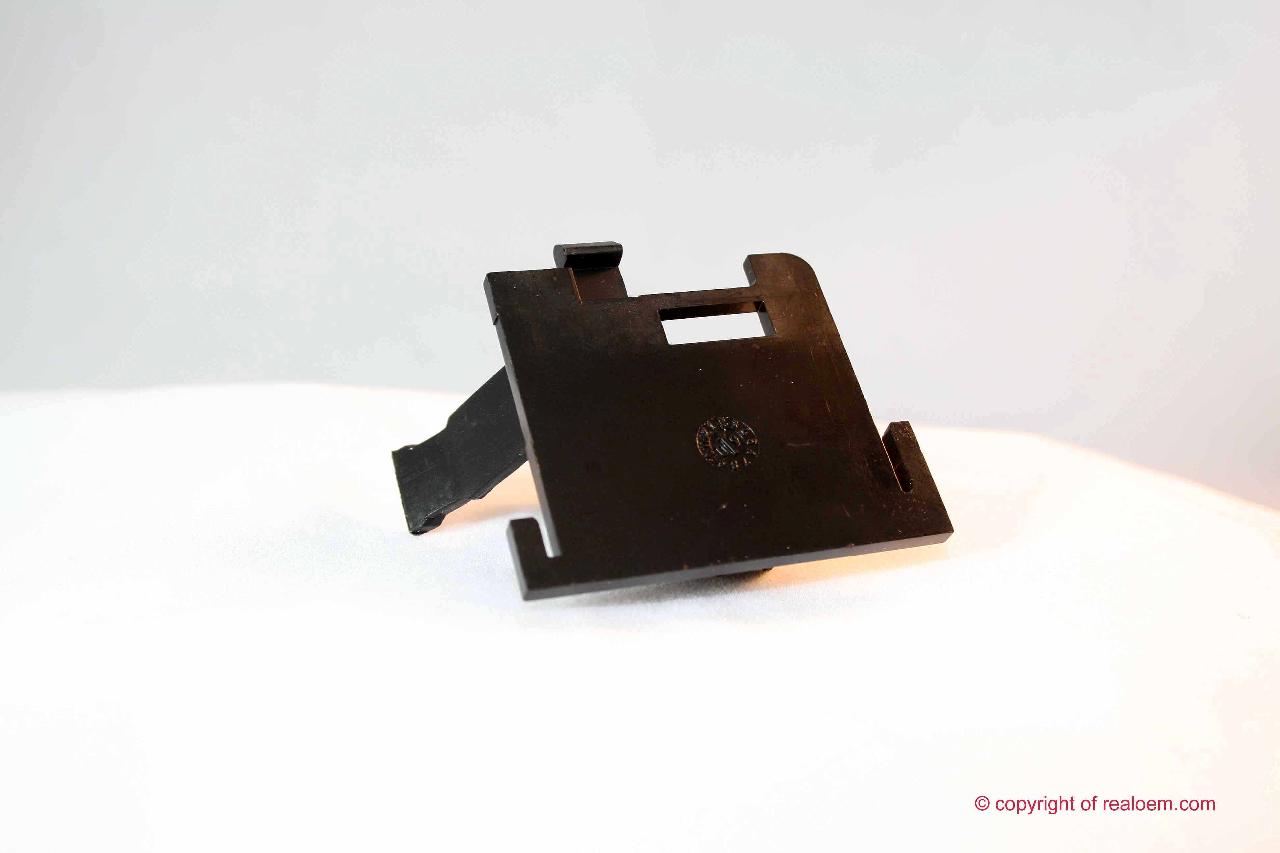

| 16 | Left supporting plate | 1 | 52108207405 | $1.79 | Shop at ECS Tuning | |||||

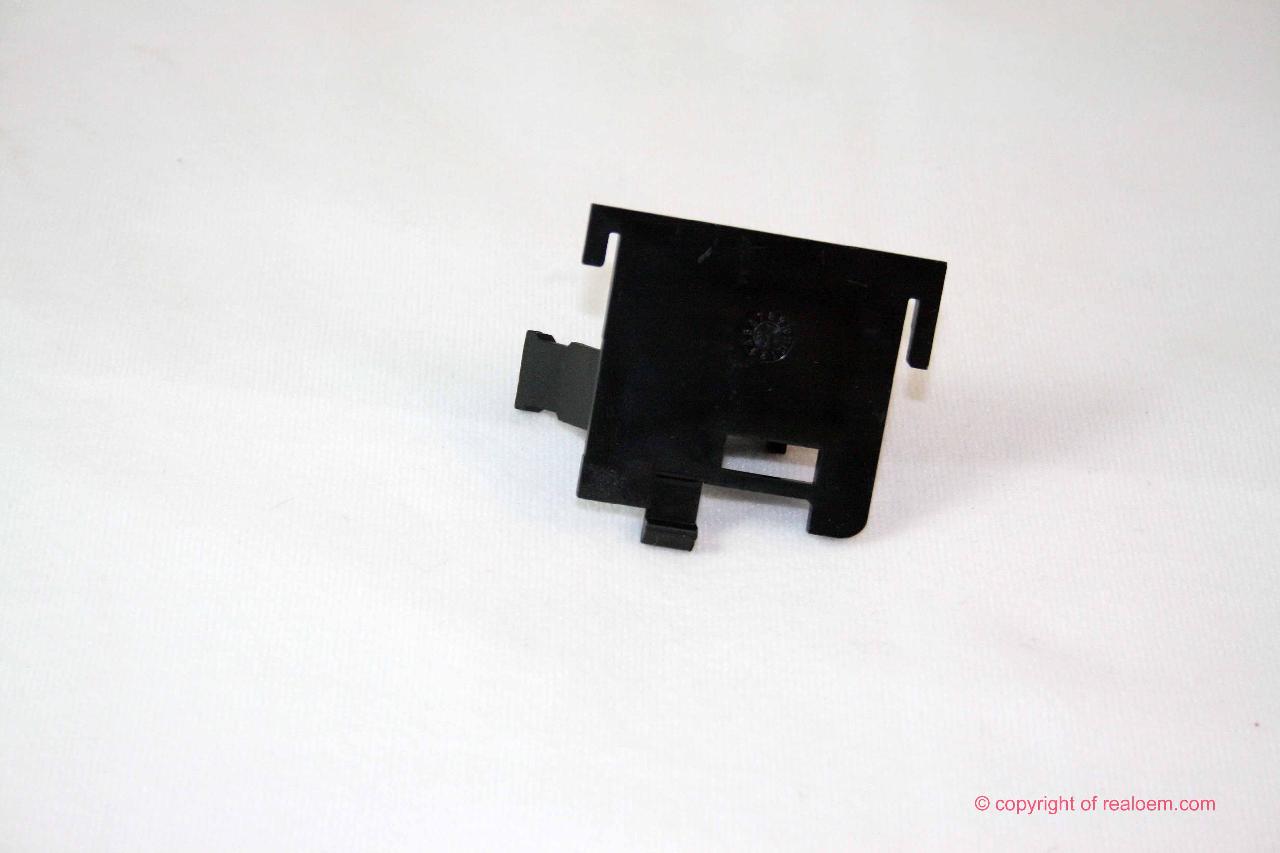

| 16 | Carrier plate, right | 1 | 52108207406 | $1.79 | Shop at ECS Tuning | |||||
| 17 | Sliding jaw | 2 | 54128105582 | $2.95 | Shop at ECS Tuning | |||||
| 18 | Clip | GRUEN | 2 | 52108221512 | $0.35 | Shop at ECS Tuning | ||||
| For vehicles with Electr. front seat adjustment |
S458A=Yes |
|||||||||
| 19 | Cover, switch, backrest top adjustment | SCHWARZ | 2 | 52108207258 | $3.38 | Shop at ECS Tuning | ||||
| 19 | Cover, switch, backrest top adjustment | GRAU | 2 | 52108207259 | $3.38 | Shop at ECS Tuning | ||||
| 19 | Cover, switch, backrest top adjustment | MARINEBLAU | 2 | 52108207260 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 19 | Cover, switch, backrest top adjustment | SANDBEIGE | 2 | 52108207261 | $3.38 | Shop at ECS Tuning | ||||
| 19 | Cover, switch, backrest top adjustment | ENGLISCHGRUEN | 2 | 52108207262 | $2.90 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Front seat frame mech./el./singl.parts?

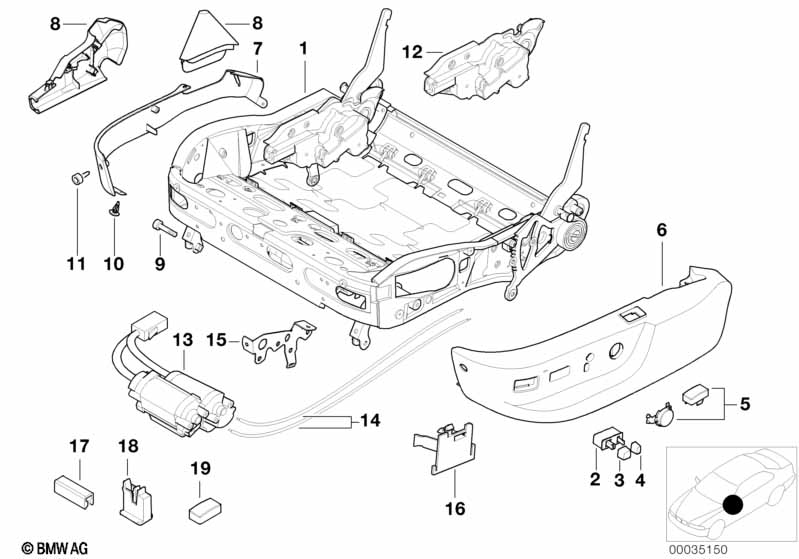

- This technical diagram illustrates the Front seat frame mech./el./singl.parts within the Seats group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Seat frame (Part #52108150883).
- Which models use the hardware listed in this Front seat frame mech./el./singl.parts?
- The hardware and components featured in the Front seat frame mech./el./singl.parts are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Seat frame (52108150883) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat frame mech./el./singl.parts assembly?
- Each item in the Front seat frame mech./el./singl.parts corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Seat frame by locating its position on the schematic, which then links to the official BMW part number 52108150883 for the Seats section.
