Front seat rail for BMW 3 Series E36 320i (1996)

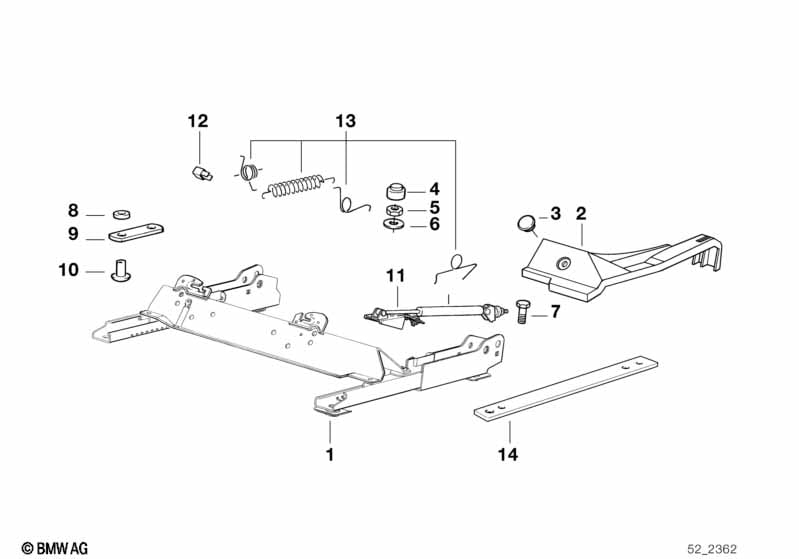

This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat rail left | 1 | 03/1997 | 52108161531 | $110.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail right | 1 | 03/1997 | 52108161532 | $110.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail left | 1 | 03/1997 | 52108234793 | $150.64 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Seat rail right | 1 | 03/1997 | 52108234794 | $150.64 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin | 1 | 03/1997 | 52108201097 | $5.46 | Shop at ECS Tuning | ||||
| 02 | Covering cap left | 1 | 52101960791 | $1.85 | Shop at ECS Tuning | |||||
| 02 | Covering cap right | 1 | 52101960792 | $1.85 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet, black | L=15MM | 2 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Covering cap | 4 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 05 | Hex nut with ribs | M10 | 4 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B10-ZNS3 | 4 | 08/2000 | 07119904463 | Shop at ECS Tuning | ||||
| 06 | Washer | D=10MM | 4 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M10 | 4 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 08 | Stopper | 2 | 52108153563 | $1.82 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 09 | Stopper | 2 | 52108153569 | $1.82 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rivet | 4 | 52108161653 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 11 | Right gas pressurized spring | 4 | 52108189604 | $105.97 | ENDED, +core | Shop at ECS Tuning | ||||
| 11 | Left gas pressurized spring | 4 | 52108189603 | $105.97 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO VERTICAL ADJUSTMENT | ||||||||||
| 12 | Guide | 2 | 52108171806 | $1.32 | Shop at ECS Tuning | |||||
| 13 | Spring set | 1 | 52108171805 | $9.37 | Shop at ECS Tuning | |||||
| 14 | Seat rail extension adapter | 4 | 52108191181 | $18.50 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
