Front seat rail mechanical/single parts for BMW 5 Series E39 523i (2000)

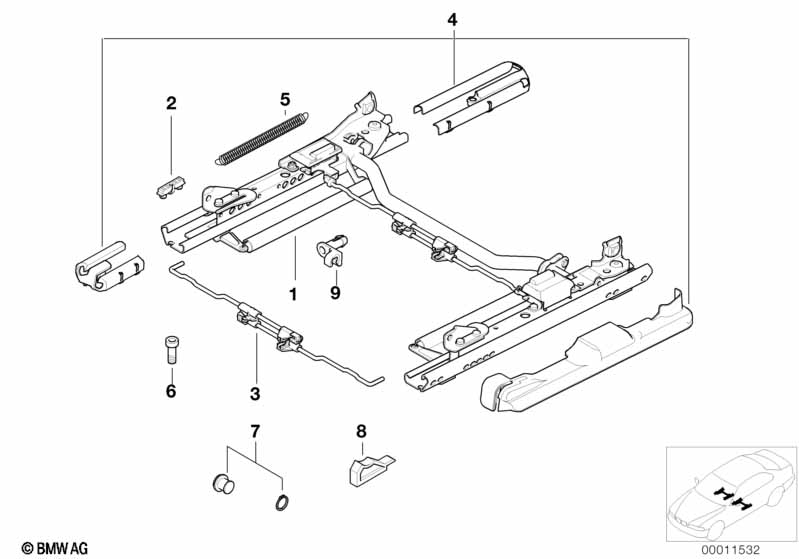

This Front seat rail mechanical/single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat rail left | 1 | 52108196283 | $188.72 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat rail right | 1 | 52108196284 | $188.72 | Shop at ECS Tuning | |||||
| 02 | Stopper | 2 | 52108207409 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 03 | Unlocking rod assy | 2 | 52108157405 | $8.55 | Shop at ECS Tuning | |||||
| 04 | Cover | GRAU | 1 | 52108217290 | $28.24 | Shop at ECS Tuning | ||||
| 04 | Cover | SCHWARZ | 1 | 52108217291 | $28.24 | Shop at ECS Tuning | ||||
| 04 | Cover | LAVENDELGRAU | 1 | 52108217292 | $28.24 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | SANDBEIGE | 1 | 52108217293 | $28.24 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | PASTELLGRUEN | 1 | 52108217294 | $29.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Tension spring | 4 | 52108157407 | $2.36 | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | M12 | 4 | 51108244820 | $20.38 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M10 | 4 | 52108162348 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Bush bearing set | 2 | 52108231862 | $3.11 | Shop at ECS Tuning | |||||
| 08 | Wedge | SCHWARZ | 2 | 52108177610 | $0.46 | Shop at ECS Tuning | ||||
| 09 | Clip | 4 | 52108157406 | $3.48 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Front seat rail mechanical/single parts?
- This technical diagram illustrates the Front seat rail mechanical/single parts within the Seats group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Seat rail left (Part #52108196283).
- Which models use the hardware listed in this Front seat rail mechanical/single parts?
- The hardware and components featured in the Front seat rail mechanical/single parts are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Seat rail left (52108196283) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat rail mechanical/single parts assembly?
- Each item in the Front seat rail mechanical/single parts corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Seat rail left by locating its position on the schematic, which then links to the official BMW part number 52108196283 for the Seats section.
