Seat rear, upholstery & cover base seat for BMW 3 Series E36 318ti (1998)

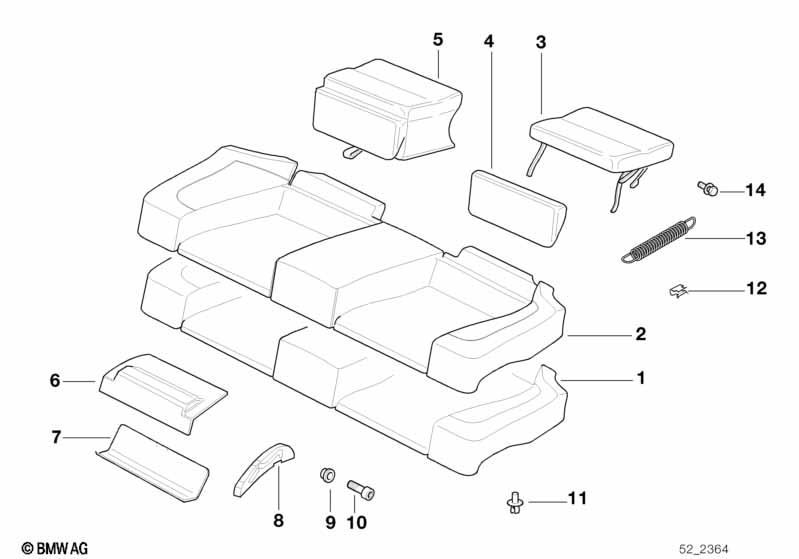

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Seat rear, upholstery & cover base seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Integrated child seats
S469A=Yes
01 Seat upholstery 1 07/1995 52202265826 $611.01 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric,Jacquard /Int.sand-grau
E1=Yes
02 Seat cover cloth E1BE SANDGRAU 1 09/1996 52232492232 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric, Jacquard/Int.black
E2=Yes
02 Seat cover cloth E2AT ANTHRAZIT 1 09/1996 52232492119 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth E2GD KLASS.ROT 1 09/1996 52232492230 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth E2KU KOENIGBLAU 1 09/1996 52232492231 ENDED, +core Shop at ECS Tuning
For vehicles with
Flat textile
F1=Yes
02 Seat cover cloth C5AT,F1AT ANTHR 1 01/1999 52232267272 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth C5PU,F1PU BLAU 1 01/1999 52232267275 ENDED Shop at ECS Tuning
02 Seat cover cloth F1ME ASCOTGRUEN 1 01/1999 52232497774 ENDED, +core Shop at ECS Tuning
For vehicles with
Cloth/leather "Millpoint"
SPECIAL SERIES SPORT COMPACT
D7=Yes
02 Seat cover leather D7BL,D7RT,D7TT 1 07/1995 52232267475 ENDED Shop at ECS Tuning
For vehicles with
Leather, Montana/Int.black
or
Leather, Montana/Int.sandgrau
P9=Yes

Q1=Yes
02 Seat cover leather P9SW SCHWARZ 1 09/1996 01/1999 52232268814 ENDED Shop at ECS Tuning
For vehicles with
Familiy Kit
and
Cloth "Boa Boa"
S759A=Yes

E7=Yes
02 Seat cover cloth E7OL,E7BS OELBL 1 09/1998 52232492445 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth E7BV BLAUVIOLET 1 09/1998 52232698386 ENDED, +core Shop at ECS Tuning
03 Child seat upholstery 2 07/1995 52232267190 ENDED, +core Shop at ECS Tuning
04 Front foam plastic part 2 07/1995 52202268678 ENDED Shop at ECS Tuning
For vehicles with
Fabric,Jacquard /Int.sand-grau
E1=Yes
05 Child seat cover in cloth E1BE SANDGRAU 2 09/1996 01/1999 52232492237 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric, Jacquard/Int.black
E2=Yes
05 Child seat cover in cloth E2AT ANTHRAZIT 2 09/1996 01/1999 52232492234 ENDED, +core Shop at ECS Tuning
05 Child seat cover in cloth E2GD KLASS.ROT 2 09/1996 01/1999 52232492235 ENDED, +core Shop at ECS Tuning
05 Child seat cover in cloth E2KU KOENIGBLAU 2 09/1996 01/1999 52232492236 ENDED, +core Shop at ECS Tuning
For vehicles with
Flat textile
F1=Yes
05 Child seat cover in cloth C5AT,F1AT ANTHR 2 01/1999 52232267259 ENDED Shop at ECS Tuning
05 Child seat cover in cloth C5PU,F1PU BLAU 2 01/1999 52232267265 ENDED Shop at ECS Tuning
05 Child seat cover in cloth F1ME ASCOTGRUEN 2 01/1999 52232497772 ENDED, +core Shop at ECS Tuning
For vehicles with
Cloth/leather "Millpoint"
SPECIAL SERIES SPORT COMPACT
D7=Yes
05 Child seat cover in cloth D7BL BLAU 2 07/1995 52232267467 ENDED Shop at ECS Tuning
05 Child seat cover in cloth D7RT ROT 2 07/1995 52232267468 ENDED Shop at ECS Tuning
05 Child seat cover in cloth D7TT GRAU 2 07/1995 52232267469 ENDED Shop at ECS Tuning
For vehicles with
Leather, Montana/Int.black
or
Leather, Montana/Int.sandgrau
P9=Yes

Q1=Yes
05 Child seat cover in leather P9SW SCHWARZ 2 09/1996 01/1999 52232268810 ENDED Shop at ECS Tuning
For vehicles with
Familiy Kit
and
Cloth "Boa Boa"
S759A=Yes

E7=Yes
05 Child seat cover in cloth E7BS BLAUSCHW. 1 09/1998 52232423910 ENDED, +core Shop at ECS Tuning
05 Child seat cover in cloth E7BV BLAUVIOLET 1 09/1998 52232423956 ENDED, +core Shop at ECS Tuning
05 Child seat cover in cloth E7OL OELBLAU 1 09/1998 52232492442 ENDED, +core Shop at ECS Tuning
06 Seat center part cover 2 07/1995 52202265825 ENDED Shop at ECS Tuning
07 Foot rest 2 07/1995 52232267276 ENDED Shop at ECS Tuning
08 Guide left 2 07/1995 52232267199 ENDED Shop at ECS Tuning
08 Guide right 2 07/1995 52232267200 ENDED Shop at ECS Tuning
09 Self-locking hex nut M6 8 07/1995 07147153450 $0.47 Shop at ECS Tuning
10 Fillister-head screw M6X25 8 07/1995 07119920019 $1.93 ENDED Shop at ECS Tuning
11 Expanding rivet 8 07/1995 51471916670 $0.45 Shop at ECS Tuning
12 Clamp 6 07/1995 51121946136 $0.79 Shop at ECS Tuning
13 Tension spring 2 07/1995 52202268791 ENDED Shop at ECS Tuning
14 Screw with lug M6X10 4 07/1995 52101960639 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
