Rear seat head restraint for BMW 5 Series E39 528i (2000)

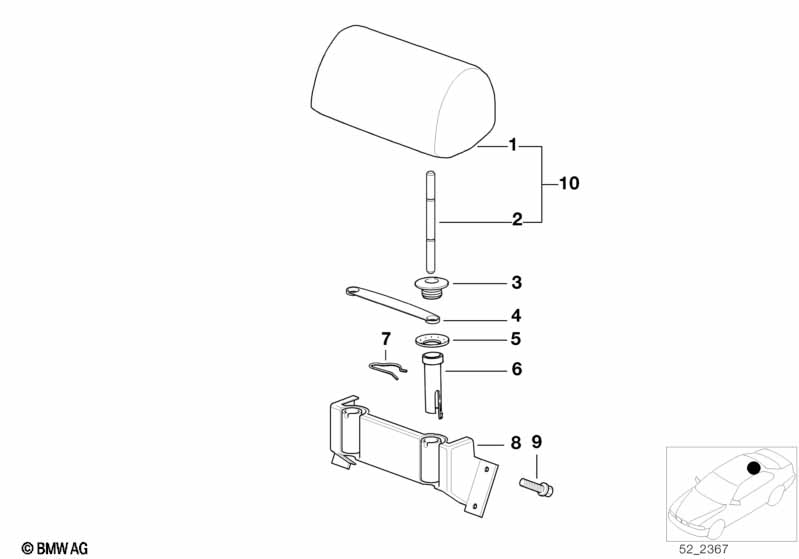

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Buffalo leather/Bubinga |
P2=Yes |
|||||||||
| 01 | Headrest leather | P2AT ANTHRAZIT | 2 | 09/2001 | 52208197697 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Softleather Bubinga |
N9=Yes |
|||||||||
| 01 | Headrest leather | N9SW SCHWARZ | 2 | 09/2001 | 52208197692 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | N9TT GRAU | 2 | 09/2001 | 52208197693 | $224.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | N9DL MARINEBLAU | 2 | 09/2001 | 52208197694 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | N9SN SANDBEIGE | 2 | 09/2001 | 52208197695 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | N9NG,R1NG BRAUN | 2 | 09/2001 | 52208261658 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock |
F6=Yes |
|||||||||
| 01 | Head rest cloth | F6AT ANTHRAZIT | 1 | 09/1998 | 09/2001 | 52208251466 | $120.53 | ENDED | Shop at ECS Tuning | |
| 01 | Head rest cloth | F6DL MARINEBLAU | 1 | 09/1998 | 09/2001 | 52208251467 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| 01 | Head rest cloth | F6TT GRAU | 1 | 09/1998 | 09/2001 | 52208251468 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| 01 | Head rest cloth | F6EG ENGL.GRUEN | 1 | 09/1998 | 09/2001 | 52208255902 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 01 | Headrest leather | N6AI AUBERGINE | 2 | 09/2001 | 52208197688 | $176.33 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N6SY SAT.BRAUN | 2 | 09/2001 | 52208197690 | $176.33 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N6EG ENGL.GRUEN | 2 | 09/2001 | 52208224701 | $176.33 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N6SW SCHWARZ | 2 | 52208197686 | $202.88 | Shop at ECS Tuning | ||||
| 01 | Headrest leather | N6TT GRAU | 2 | 52208197687 | $202.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather |
K4=Yes |
|||||||||
| 01 | Headrest imitation leather | K4SW SCHWARZ | 2 | 52208218427 | $120.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest imitation leather | K4SN SANDBEIGE | 2 | 52208218428 | $128.24 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 01 | Head rest cloth | F4AT ANTHRAZIT | 2 | 03/1998 | 52208158780 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4TT GRAU | 2 | 03/1998 | 52208158781 | $120.53 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4BR BIARR.BLAU | 2 | 09/1998 | 09/2001 | 52208158782 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| 01 | Head rest cloth | F4SR SIENAROT | 2 | 09/1998 | 09/2001 | 52208158783 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 01 | Head rest cloth | G3AT ANTHRAZIT | 2 | 09/1998 | 52202699558 | $158.47 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 01 | Headrest leather | N6SN SANDBEIGE | 2 | 52208197689 | $202.88 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | N6LG,O7LG GELB | 2 | 52208258943 | $176.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | N6GN,O7GN GRUEN | 2 | 52208258944 | $202.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide left | 2 | 52201977897 | $7.28 | Shop at ECS Tuning | |||||
| 02 | Guide right | 2 | 52201977898 | $7.28 | Shop at ECS Tuning | |||||
| 03 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 04 | Base | 2 | 52108169458 | $2.54 | Shop at ECS Tuning | |||||
| 05 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 06 | Guide bush | SCHWARZ | 4 | 52208208877 | $1.80 | Shop at ECS Tuning | ||||
| 07 | Spring washer | 1,4 MM | 4 | 52108132021 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Spring washer | 1,75 MM | 4 | 52208221511 | $0.40 | Shop at ECS Tuning | ||||
| only applies to center-seat headrest |
||||||||||
| 08 | Head rest support | 1 | 52208176175 | $20.49 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M6X16 | 8 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Buffalo leather/Bubinga |
P2=Yes |
|||||||||
| 10 | Headrest, center seat | P2AT ANTHRAZIT | 1 | 09/2001 | 52208206661 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Softleather Bubinga |
N9=Yes |
|||||||||
| 10 | Headrest, center seat | N9SW SCHWARZ | 1 | 09/2001 | 52208206656 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N9TT GRAU | 1 | 09/2001 | 52208206657 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N9DL | 1 | 09/2001 | 52208206658 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N9SN BEIGE | 1 | 09/2001 | 52208206659 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N9NG,R1NG BRAUN | 1 | 09/2001 | 52208261660 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock |
F6=Yes |
|||||||||
| 10 | Headrest, center seat | F6AT ANTHRAZIT | 1 | 09/1998 | 09/2001 | 52208251470 | $120.53 | ENDED | Shop at ECS Tuning | |
| 10 | Headrest, center seat | F6DL MARINEBLAU | 1 | 09/1998 | 09/2001 | 52208251471 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| 10 | Headrest, center seat | F6TT GRAU | 1 | 09/1998 | 09/2001 | 52208251472 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| 10 | Headrest, center seat | F6EG ENGL.GRUEN | 1 | 09/1998 | 09/2001 | 52208255903 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 10 | Headrest, center seat | N6AI AUBERGINE | 1 | 09/2001 | 52208198139 | $170.75 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N6SY SAT.BRAUN | 1 | 09/2001 | 52208198141 | $170.75 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N6EG ENGL.GRUEN | 1 | 09/2001 | 52208224702 | $170.75 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | N6SW SCHWARZ | 1 | 52208198137 | $202.88 | Shop at ECS Tuning | ||||
| 10 | Headrest, center seat | N6TT GRAU | 1 | 52208198138 | $202.88 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather |
K4=Yes |
|||||||||
| 10 | Headrest, center seat | K4SW SCHWARZ | 1 | 52208218430 | $120.53 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Headrest, center seat | K4SN SANDBEIGE | 1 | 52208218431 | $120.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 10 | Headrest, center seat | F4AT ANTHRAZIT | 1 | 03/1998 | 52208158790 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Headrest, center seat | F4TT GRAU | 1 | 03/1998 | 52208158791 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Head rest cloth | F4SR SIENAROT | 1 | 09/1998 | 09/2001 | 52207047598 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| 10 | Headrest, center seat | F4BR BIARR.BLAU | 1 | 09/1998 | 09/2001 | 52208158792 | $120.53 | ENDED, +core | Shop at ECS Tuning | |
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 10 | Headrest, center seat | G3AT ANTHRAZIT | 2 | 09/1998 | 52202699562 | $158.47 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 10 | Headrest, center seat | N6SN SANDBEIGE | 1 | 52208198140 | $202.88 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Headrest, center seat | N6LG,O7LG GELB | 1 | 52208261219 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Headrest, center seat | N6GN,O7GN GRUEN | 1 | 52208261220 | $202.88 | ENDED, +core | Shop at ECS Tuning | |||
