Seat, rear, uphlstry/cover, load-through for BMW 5 Series E39 530i (2003)

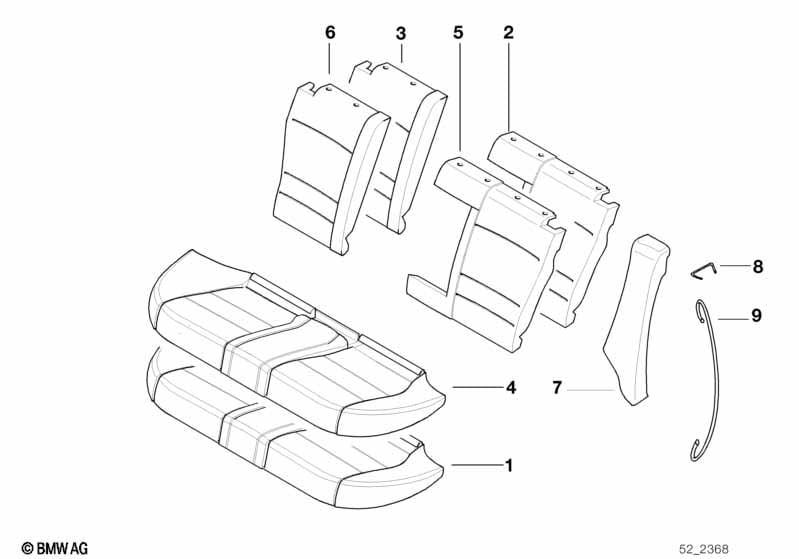

This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CLOTH VERSION WOOL VELOURS | |||||||||
| For vehicles with Leather trim |
=Yes |
|||||||||
| 01 | Foam plastic seat | 1 | 52208176176 | $255.45 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Foam plastic seat | 1 | 52208198547 | $218.74 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Foam plastic part left backrest | 1 | 52208176231 | $90.92 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Foam section, backrest, right | 1 | 52208176232 | $57.87 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Sportline" |
J3=Yes |
|||||||||
| 04 | Cloth/leather seat cover | J3AT ANTHRAZIT | 1 | 09/2001 | 52207049554 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Cloth/leather seat cover | J3FA FLANELGRAU | 1 | 09/2001 | 52207049555 | $750.51 | ENDED | Shop at ECS Tuning | ||
| 04 | Cloth/leather seat cover | J3GC GRAUBLAU | 1 | 09/2001 | 52207049556 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 04 | Seat cover leather | V6SW SCHWARZ | 1 | 09/2001 | 52207049350 | $1018.35 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Seat cover leather | V6SN SANDBEIGE | 1 | 09/2001 | 52207049351 | $1018.35 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Seat cover leather | V6BG BURGUND | 1 | 09/2001 | 52207049352 | $1018.35 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 04 | Seat cover leather | N6SW SCHWARZ | 1 | 52208198179 | $1147.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Seat cover leather | N6TT GRAU | 1 | 52208198180 | $1147.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 04 | Seat cover cloth | F4AT ANTHRAZIT | 1 | 03/1998 | 52208158839 | $300.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Seat cover cloth | F4TT GRAU | 1 | 03/1998 | 52208158840 | $300.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Seat cover cloth | F4DL MARINEBLAU | 1 | 09/2001 | 52207054555 | $300.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Seat cover cloth | F4EG ENGL.GRUEN | 1 | 09/2001 | 52207054556 | $300.20 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 04 | Seat cover cloth | G3AT ANTHRAZIT | 1 | 09/1998 | 52202699538 | $571.95 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 04 | Seat cover leather | N6SN SANDBEIGE | 1 | 52208198182 | $1147.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Seat cover leather | N6LG,O7LG GELB | 1 | 52208261245 | $1018.35 | ENDED | Shop at ECS Tuning | |||
| 04 | Seat cover leather | N6GN,O7GN GRUEN | 1 | 52208261246 | $1147.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Sportline" |
J3=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | J3AT ANTHRAZIT | 1 | 09/2001 | 52207049559 | $457.56 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Left cloth/leather backrest cover | J3FA FLANELGRAU | 1 | 09/2001 | 52207049561 | $457.56 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Left cloth/leather backrest cover | J3GC GRAUBLAU | 1 | 09/2001 | 52207049563 | $457.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 05 | Cover backrest leather left | V6SW SCHWARZ | 1 | 09/2001 | 52207049355 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover backrest leather left | V6SN SANDBEIGE | 1 | 09/2001 | 52207049357 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover backrest leather left | V6BG BURGUND | 1 | 09/2001 | 52207049359 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 05 | Cover backrest leather left | N6SW SCHWARZ | 1 | 52208198255 | $525.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover backrest leather left | N6TT GRAU | 1 | 52208198257 | $525.61 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 05 | Cover backrest cloth left | F4AT ANTHRAZIT | 1 | 03/1998 | 52208159577 | $199.76 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover backrest cloth left | F4TT GRAU | 1 | 03/1998 | 52208159579 | $199.76 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover backrest cloth left | F4DL MARINEBLAU | 1 | 09/2001 | 52207054557 | $199.76 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover backrest cloth left | F4EG ENGL.GRUEN | 1 | 09/2001 | 52207054558 | $199.76 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 05 | Cover backrest cloth left | G3AT ANTHRAZIT | 1 | 09/1998 | 52202699543 | $357.12 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 05 | Cover backrest leather left | N6SN SANDBEIGE | 1 | 52208198261 | $525.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover backrest leather left | N6LG,O7LG GELB | 1 | 52238258779 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover backrest leather left | N6GN,O7GN GRUEN | 1 | 52238258781 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Sportline" |
J3=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | J3AT ANTHRAZIT | 1 | 09/2001 | 52207049560 | $426.31 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Right cloth/leather backrest cover | J3FA FLANELGRAU | 1 | 09/2001 | 52207049562 | $426.31 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Right cloth/leather backrest cover | J3GC GRAUBLAU | 1 | 09/2001 | 52207049564 | $426.31 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 06 | Cover backrest leather right | V6SW SCHWARZ | 1 | 09/2001 | 52207049356 | $580.32 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | V6SN SANDBEIGE | 1 | 09/2001 | 52207049358 | $580.32 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | V6BG BURGUND | 1 | 09/2001 | 52207049360 | $580.32 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 06 | Cover backrest leather right | N6SW SCHWARZ | 1 | 52208198262 | $337.76 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | N6TT GRAU | 1 | 52208198264 | $337.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 06 | Cover backrest cloth right | F4AT ANTHRAZIT | 1 | 03/1998 | 52208159578 | $155.12 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F4TT GRAU | 1 | 03/1998 | 52208159580 | $155.12 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F4DL MARINEBLAU | 1 | 09/2001 | 52207054559 | $155.12 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F4EG ENGL.GRUEN | 1 | 09/2001 | 52207054560 | $155.12 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 06 | Cover backrest cloth left | G3AT ANTHRAZIT | 1 | 09/1998 | 52202699544 | $257.80 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 06 | Cover backrest leather right | N6SN SANDBEIGE | 1 | 52208198268 | $337.76 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | N6LG,O7LG GELB | 1 | 52238258780 | $524.52 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | N6GN,O7GN GRUEN | 1 | 52238258782 | $524.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Sportline" |
J3=Yes |
|||||||||
| 07 | Lateral trim panel left | J3AT ANTHRAZIT | 1 | 09/2001 | 52207049579 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | J3AT ANTHRAZIT | 1 | 09/2001 | 52207049580 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | J3FA FLANELGRAU | 1 | 09/2001 | 52207049581 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | J3FA FLANELGRAU | 1 | 09/2001 | 52207049582 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | J3GC GRAUBLAU | 1 | 09/2001 | 52207049583 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | J3GC GRAUBLAU | 1 | 09/2001 | 52207049584 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 07 | Lateral trim panel left | V6SW SCHWARZ | 1 | 09/2001 | 52207049375 | $292.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | V6SW SCHWARZ | 1 | 09/2001 | 52207049376 | $292.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | V6SN SANDBEIGE | 1 | 09/2001 | 52207049377 | $292.39 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | V6SN SANDBEIGE | 1 | 09/2001 | 52207049378 | $292.39 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | V6BG BURGUND | 1 | 09/2001 | 52207049379 | $292.39 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | V6BG BURGUND | 1 | 09/2001 | 52207049380 | $292.39 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 07 | Lateral trim panel left | N6SW SCHWARZ | 1 | 52208198357 | $262.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | N6SW SCHWARZ | 1 | 52208198358 | $262.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | N6TT GRAU | 1 | 52208198359 | $262.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | N6TT GRAU | 1 | 52208198360 | $262.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 07 | Lateral trim panel left | D4AT,F4AT ANTHR | 1 | 03/1998 | 52208198335 | $124.99 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | D4AT,F4AT ANTHR | 1 | 03/1998 | 52208198336 | $124.99 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | D4TT,F4TT GRAU | 1 | 03/1998 | 52208198337 | $124.99 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | D4TT,F4TT GRAU | 1 | 03/1998 | 52208198338 | $124.99 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | F4DL MARINEBLAU | 1 | 09/2001 | 52207054519 | $134.00 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F4DL MARINEBLAU | 1 | 09/2001 | 52207054520 | $134.00 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | D4EG ENGL.GRUEN | 1 | 09/2001 | 52208198339 | $124.99 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F4EG,D4EG GRUEN | 1 | 09/2001 | 52208198340 | $124.99 | ENDED | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 07 | Lateral trim panel left | G3AT ANTHRAZIT | 1 | 09/1998 | 52202699513 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | G3AT ANTHRAZIT | 1 | 09/1998 | 52202699514 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 07 | Lateral trim panel left | N6SN SANDBEIGE | 1 | 52208198363 | $292.39 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | N6SN SANDBEIGE | 1 | 52208198364 | $262.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | N6LG,O7LG GELB | 1 | 52208258938 | $292.39 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | N6GN,O7GN GRUEN | 1 | 52208258940 | $292.39 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | N6LG,O7LG GELB | 1 | 52208261269 | $292.39 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | N6GN,O7GN GRUEN | 1 | 52208261271 | $292.39 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
