Seat, rear, backrest trim covers for BMW 5 Series E39 523i (2000)

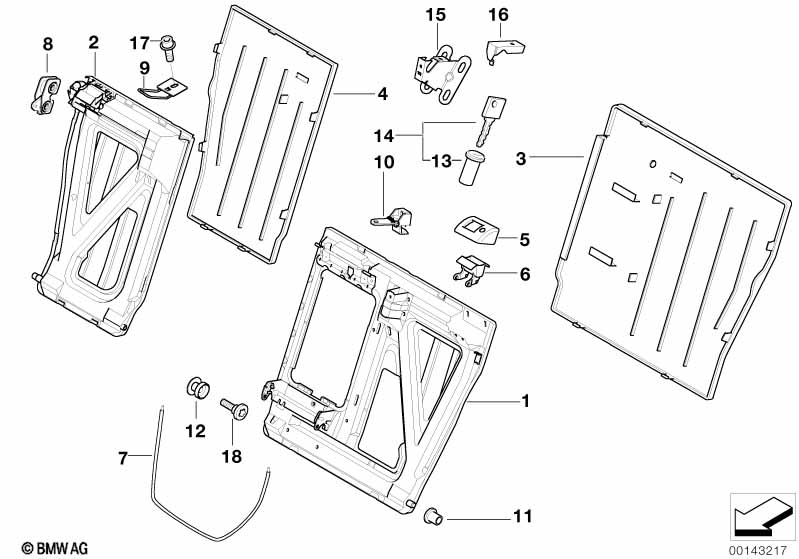

This Seat, rear, backrest trim covers technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest left | 1 | 52208176229 | $216.94 | ENDED | Shop at ECS Tuning | ||||
| 02 | Frame, backrest right | 1 | 52208176230 | $162.69 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITH SKI BAG |
||||||||||
| 03 | Trim backrest, left | ALCANTARA | 1 | 52202698285 | $397.36 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim backrest, left | 1 | 52208176209 | $164.16 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim backrest, right | ALCANTARA | 1 | 52202698286 | $353.77 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim backrest, right | 1 | 52208176242 | $115.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering upper left | SCHWARZ | 1 | 52208198265 | $13.07 | Shop at ECS Tuning | ||||
| 05 | Covering upper left | GRAU | 1 | 52208198267 | $13.07 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper left | MARINEBLAU | 1 | 52208198269 | $12.39 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper left | SANDBEIGE | 1 | 52208198271 | $12.95 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper right | SCHWARZ | 1 | 52208198272 | $12.95 | Shop at ECS Tuning | ||||
| 05 | Covering upper left | ENGLISCHGRUEN | 1 | 52208198273 | $12.39 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper right | GRAU | 1 | 52208198274 | $12.95 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper right | SANDBEIGE | 1 | 52208198278 | $12.95 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper right | ENGLISCHGRUEN | 1 | 52208198280 | $12.39 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper right | MARINEBLAU | 1 | 52208261296 | ENDED | Shop at ECS Tuning | ||||
| 06 | Actuation unit left | 1 | 52208209639 | $22.33 | Shop at ECS Tuning | |||||
| 06 | Actuation unit right | 1 | 52208209640 | $22.33 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bowden cable | 2 | 52208209641 | $28.05 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lock | 2 | 52208209626 | $24.22 | Shop at ECS Tuning | |||||
| 09 | Support | 2 | 52208176203 | $7.96 | ENDED | Shop at ECS Tuning | ||||
| 10 | Locking mechanism | 1 | 52208176217 | $7.68 | Shop at ECS Tuning | |||||
| 11 | Bush bearing exterior | 2 | 52208176186 | $0.77 | Shop at ECS Tuning | |||||
| 12 | Bushing | 2 | 52208176243 | $0.77 | Shop at ECS Tuning | |||||
| 13 | Rep.kit f lock cylinder | 2 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 14 | Rep.kit f lock cylinder | 2 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 15 | Centre backrest bearing bracket | 1 | 41127050794 | $13.97 | Shop at ECS Tuning | |||||
| 16 | Cover | 1 | 52208190215 | $7.63 | Shop at ECS Tuning | |||||
| 17 | Fillister head with washer | M10X25-Z1 | 2 | 07119920068 | $0.84 | Shop at ECS Tuning | ||||
| 18 | Screw | M10X16 | 2 | 52208176245 | $1.38 | ENDED | Shop at ECS Tuning | |||
