Multi-functional headrest for BMW 7 Series E38 740i (1995)

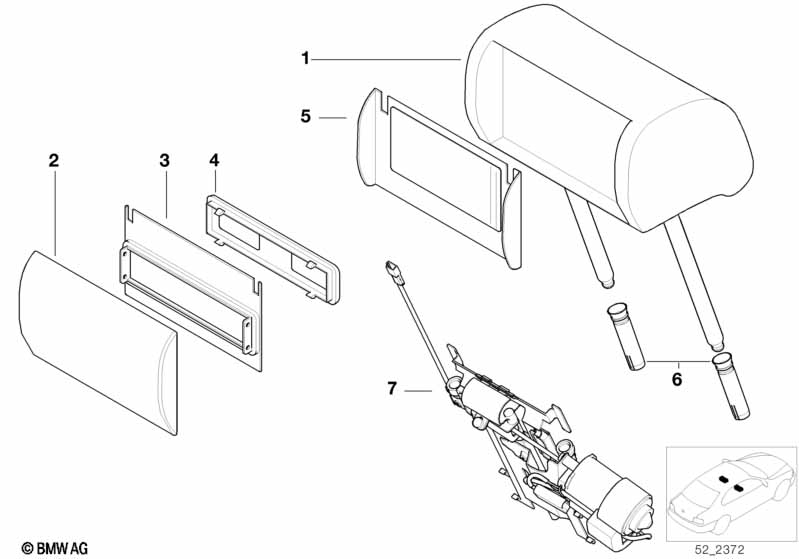

This Multi-functional headrest technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

Multi-functional headrest
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i CAN BE RETROFITTED
For vehicles with
Buffalo leather/Bubinga
or
Buffalo leather, root wood
P2=Yes

P3=Yes
01 Headrest leather P2AT,P3AT ANTHR 2 09/1995 52108174670 $551.30 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, root wood
N6=Yes

N8=Yes
01 Headrest leather N6SW,N8SW SCHW 2 09/1995 52108174658 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N6TT,N8TT GRAU 2 09/1995 52108174659 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N6DL,N8DL BLAU 2 09/1995 52108174660 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N6SN,N8SN BEIGE 2 09/1995 52108174661 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N6MK,N8MK GRAU 2 09/1995 52108174662 $569.16 ENDED, +core Shop at ECS Tuning
For vehicles with
Softleather Bubinga
or
Softleather, root wood
N9=Yes

P1=Yes
01 Headrest leather N9SW,P1SW SCHW. 2 09/1995 03/2000 52108174664 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N9TT,P1TT GRAU 2 09/1995 03/2000 52108174665 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N9DL,P1DL BLAU 2 09/1995 03/2000 52108174666 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N9SN,P1SN BEIGE 2 09/1995 03/2000 52108174667 $569.16 ENDED, +core Shop at ECS Tuning
01 Headrest leather N9MK,P1MK GRAU 2 09/1995 03/2000 52108174668 $569.16 ENDED, +core Shop at ECS Tuning
For vehicles with
Buffalo leather/Bubinga
or
Buffalo leather, root wood
P2=Yes

P3=Yes
02 Cover P2AT,P3AT ANTHR 2 09/1995 52108177581 $152.89 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, root wood
N6=Yes

N8=Yes
02 Cover N6TT,N8TT GRAU 2 09/1995 52108177575 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N6SW,N8SW SCHW. 2 09/1995 52108177576 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N6DL,N8DL BLAU 2 09/1995 52108177577 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N6SN,N8SN BEIGE 2 09/1995 52108177578 $152.89 ENDED Shop at ECS Tuning
02 Cover N6MK,N8MK GRAU 2 09/1995 52108177579 $152.89 ENDED Shop at ECS Tuning
For vehicles with
Softleather Bubinga
or
Softleather, root wood
N9=Yes

P1=Yes
02 Cover N9TT,P1TT GRAU 2 09/1995 03/2000 52108177583 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N9SW,P1SW SCHW. 2 09/1995 03/2000 52108177584 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N9DL P1DL BLAU 2 09/1995 03/2000 52108177585 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N9SN,P1SN BEIGE 2 09/1995 03/2000 52108177586 $152.89 ENDED, +core Shop at ECS Tuning
02 Cover N9MK,P1MK GRAU 2 09/1995 03/2000 52108177587 $152.89 ENDED, +core Shop at ECS Tuning
03 Cover HELLGRAU 2 09/1995 52108177571 $16.18 ENDED Shop at ECS Tuning
03 Cover SCHWARZ 2 09/1995 52108177572 $16.18 ENDED Shop at ECS Tuning
03 Cover SANDBEIGE 2 09/1995 52108177573 $16.18 ENDED Shop at ECS Tuning
04 Mirror lamp SCHWARZ 2 09/1995 63318369588 $34.60 ENDED, +core Shop at ECS Tuning
04 Mirror lamp BEIGE 2 09/1995 63318369590 $34.60 ENDED, +core Shop at ECS Tuning
04 Mirror lamp GRAU 2 09/1995 63318369591 $34.60 ENDED, +core Shop at ECS Tuning
05 Mirror GRAU 2 09/1995 52108177567 $88.44 ENDED, +core Shop at ECS Tuning
05 Mirror SCHWARZ 2 09/1995 52108177568 $88.44 ENDED, +core Shop at ECS Tuning
05 Mirror SANDBEIGE 2 09/1995 52108177569 $88.44 ENDED, +core Shop at ECS Tuning
06 Guide 4 52108169456 $2.54 Shop at ECS Tuning
MODEL WITHOUT MEMORY
ONLY APPLIES TO CO-DRIVERS SIDE
07 Head rest support electr. 1 52107008683 $215.12 Shop at ECS Tuning
MODEL WITH MEMORY ONLY APPLIES TO
DRIVER'S SIDE
07 Head rest support electr. 1 52107008681 $297.85 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
