BMW sports seat frame mechanical for BMW 5 Series E39 523i (2000)

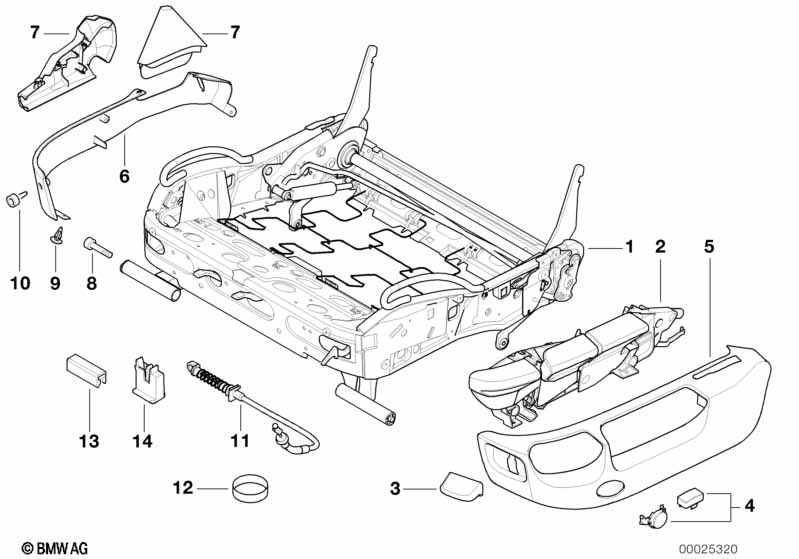

This BMW sports seat frame mechanical technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Seat frame, left | 1 | 52108176565 | $421.47 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat frame, right | 1 | 52108176566 | $421.47 | Shop at ECS Tuning | |||||
| 02 | Actuation unit left | 1 | 52108150021 | $49.65 | Shop at ECS Tuning | |||||
| 02 | Actuation unit right | 1 | 52108150022 | $49.65 | Shop at ECS Tuning | |||||
| 03 | Lever left | 1 | 52108150059 | $3.91 | Shop at ECS Tuning | |||||
| 03 | Lever right | 1 | 52108150060 | $3.91 | Shop at ECS Tuning | |||||
| 04 | Set of covers | GRAU | 2 | 52108219226 | $12.22 | Shop at ECS Tuning | ||||
| 04 | Set of covers | SCHWARZ | 2 | 52108219227 | $12.22 | Shop at ECS Tuning | ||||
| 04 | Set of covers | MARINEBLAU | 2 | 52108219228 | $12.22 | ENDED | Shop at ECS Tuning | |||
| 04 | Set of covers | LAVENDELGRAU | 2 | 52108219229 | $11.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Set of covers | SANDBEIGE | 2 | 52108219230 | $12.22 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover panel outer right | SCHWARZ | 1 | 04/2001 | 52108207224 | $18.58 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover panel outer right | GRAU | 1 | 04/2001 | 52108207226 | $19.85 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover panel outer right | MARINEBLAU | 1 | 04/2001 | 52108207228 | $18.75 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover panel outer right | SANDBEIGE | 1 | 04/2001 | 52108207230 | $17.40 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Cover panel outer right | ENGLISCHGRUEN | 1 | 04/2001 | 52108208850 | $18.75 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 05 | Covering outer | SCHWARZ | 1 | 52107057998 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | GRAU | 1 | 52107057999 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | MARINEBLAU | 1 | 52107058000 | +core | Shop at ECS Tuning | ||||
| 05 | Covering outer | SANDBEIGE | 1 | 52107058001 | $45.18 | +core | Shop at ECS Tuning | |||
| 05 | Covering outer | ENGLISCHGRUEN | 1 | 52107058003 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Covering outer | TOBACCO | 1 | 52107058004 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Covering outer | PEARLBEIGE | 1 | 52107058005 | +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 05 | Covering outer | SCHWARZ | 1 | 52107057988 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | GRAU | 1 | 52107057989 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | MARINEBLAU | 1 | 52107057990 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | SANDBEIGE | 1 | 52107057991 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | ENGLISCHGRUEN | 1 | 52107057993 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Covering outer | TOBACCO | 1 | 52107057994 | +core | Shop at ECS Tuning | ||||
| 05 | Covering outer | PEARLBEIGE | 1 | 52107057995 | $45.18 | +core | Shop at ECS Tuning | |||
| FOR DRIVER AND CO-DRIVER |
||||||||||
| 06 | Covering inner | SCHWARZ | 1 | 10/1997 | 52107058018 | $21.32 | +core | Shop at ECS Tuning | ||
| 06 | Covering inner | GRAU | 1 | 10/1997 | 52107058019 | $21.32 | +core | Shop at ECS Tuning | ||
| 06 | Covering inner | MARINEBLAU | 1 | 10/1997 | 52107058020 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Covering inner | ENGL.GRUEN | 1 | 10/1997 | 52107058023 | $21.97 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering inner | TOBACCO | 1 | 10/1997 | 52107058024 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering inner | PEARLBEIGE | 1 | 10/1997 | 52107058025 | $21.97 | ENDED | Shop at ECS Tuning | ||
| only applies to PYROTECHNICAL BELT TENSIONER |
||||||||||
| 06 | Covering inner | SANDBEIGE | 1 | 10/1997 | 04/2001 | 52107058021 | $21.32 | +core | Shop at ECS Tuning | |
| 06 | Covering inner | SANDBEIGE | 1 | 10/1997 | 04/2001 | 52107058021 | $21.32 | +core | Shop at ECS Tuning | |
| 06 | Covering inner left | GRAU | 1 | 10/1997 | 04/2001 | 52108238475 | $12.33 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner right | GRAU | 1 | 10/1997 | 04/2001 | 52108238476 | $19.08 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner left | SCHWARZ | 1 | 10/1997 | 04/2001 | 52108238477 | $19.08 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner right | SCHWARZ | 1 | 10/1997 | 04/2001 | 52108238478 | $12.33 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner left | ENGLISCHGRUEN | 1 | 10/1997 | 04/2001 | 52108238481 | $12.00 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner right | ENGLISCHGRUEN | 1 | 10/1997 | 04/2001 | 52108238482 | $12.33 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner left | MARINEBLAU | 1 | 10/1997 | 04/2001 | 52108238483 | $12.33 | ENDED | Shop at ECS Tuning | |
| 06 | Covering inner right | MARINEBLAU | 1 | 10/1997 | 04/2001 | 52108238484 | $12.33 | ENDED | Shop at ECS Tuning | |
| 07 | Covering left | SCHWARZ | 1 | 10/1997 | 52108238487 | $5.60 | Shop at ECS Tuning | |||
| 07 | Covering right | SCHWARZ | 1 | 10/1997 | 52108238488 | $5.60 | Shop at ECS Tuning | |||
| 08 | Fillister-head screw | M6X20 ROT | 4 | 52108150020 | $0.46 | Shop at ECS Tuning | ||||
| 09 | Clip | 6 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M4X10 | 8 | 07146977086 | $0.48 | Shop at ECS Tuning | ||||
| 11 | Bowden cable horizontal adjustment | 2 | 52108162230 | $11.58 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber Ring | 2 | 52101843100 | $0.54 | Shop at ECS Tuning | |||||
| 13 | Sliding jaw | 2 | 54128105582 | $2.95 | Shop at ECS Tuning | |||||
| 14 | Clip | GRUEN | 2 | 52108221512 | $0.35 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
