Front seat rail for BMW 5 Series E39 528i (2000)

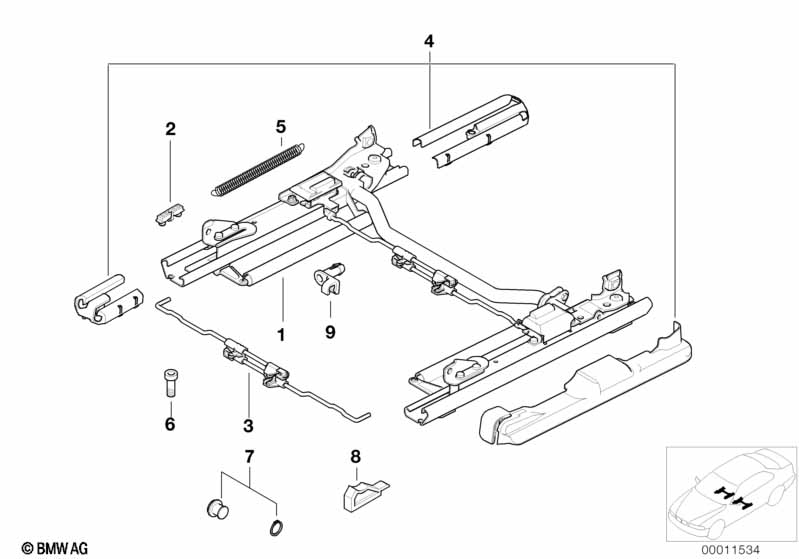

This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports seat |
S481A=Yes |
||||||||
| 01 | Seat rail left | 1 | 52108196283 | $188.72 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat rail right | 1 | 52108196284 | $188.72 | Shop at ECS Tuning | |||||
| 02 | Stopper | 2 | 52108207409 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 03 | Unlocking rod assy | 2 | 52108157405 | $8.55 | Shop at ECS Tuning | |||||
| FOR DRIVER AND CO-DRIVER |
||||||||||
| 04 | Cover | GRAU | 1 | 52108217290 | $28.24 | Shop at ECS Tuning | ||||
| 04 | Cover | SCHWARZ | 1 | 52108217291 | $28.24 | Shop at ECS Tuning | ||||
| 04 | Cover | SANDBEIGE | 1 | 52108217293 | $28.24 | ENDED | Shop at ECS Tuning | |||
| 05 | Tension spring | 4 | 52108157407 | $2.36 | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | M12 | 8 | 51108244820 | $20.38 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M10 | 8 | 52108162348 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Bush bearing set | 2 | 52108231862 | $3.11 | Shop at ECS Tuning | |||||
| 08 | Wedge | SCHWARZ | 2 | 04/1994 | 52108177610 | $0.46 | Shop at ECS Tuning | |||
| 09 | Clip | 4 | 52108157406 | $3.48 | Shop at ECS Tuning | |||||
