Upper rear multi-purpose panel for BMW 7 Series E38 750iLS (2001)

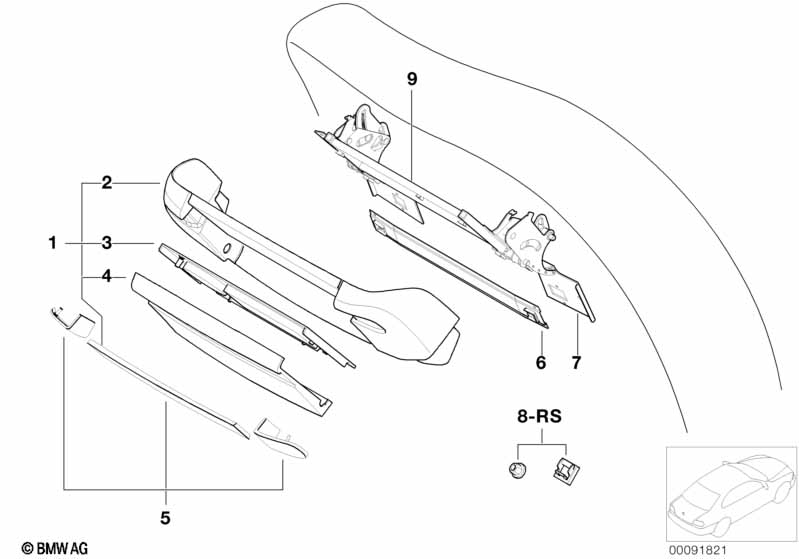

This Upper rear multi-purpose panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UPHOLSTERY LEATHER MONTANA FOR ALL TYPES OF LEATHER UPHOLSTERY |
||||||||||
| 01 | Upper rear panel | GRAU | 2 | 09/1995 | 52108198549 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | SCHWARZ | 2 | 09/1995 | 52108198550 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | MARINEBLAU | 2 | 09/1995 | 52108198551 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | SANDBEIGE | 2 | 09/1995 | 52108198552 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108198553 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108221292 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upper rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52108260377 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | PEARLBEIGE | 2 | 09/1998 | 52108260378 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Upper rear panel | GRAU | 2 | 09/1995 | 52108198549 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Upper rear panel | SCHWARZ | 2 | 09/1995 | 52108198550 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Upper rear panel | MARINEBLAU | 2 | 09/1995 | 52108198551 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Upper rear panel | SANDBEIGE | 2 | 09/1995 | 52108198552 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Upper rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108198553 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Upper rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108221292 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Lower rear panel | GRAU | 2 | 09/1995 | 52108175784 | $474.01 | ENDED | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | SCHWARZ | 2 | 09/1995 | 52108175785 | $474.01 | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | MARINEBLAU | 2 | 09/1995 | 52108175786 | $460.91 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | SANDBEIGE | 2 | 09/1995 | 52108175787 | $474.01 | ENDED | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108175788 | $474.01 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108189110 | ENDED, +core | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| 01 | Upper rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52108260377 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Upper rear panel | PEARLBEIGE | 2 | 09/1998 | 52108260378 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Lower rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52108260379 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | PEARLBEIGE | 2 | 09/1998 | 52108260380 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | SCHWARZ | 2 | 09/1995 | 52108217272 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | GRAU | 2 | 09/1995 | 52108217273 | $705.87 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | MARINEBLAU | 2 | 09/1995 | 52108217274 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108217275 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | SANDBEIGE | 2 | 09/1995 | 52108217276 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108221302 | ENDED, +core | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | SCHWARZ | 2 | 09/1995 | 52108217272 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 02 | Rear panel | GRAU | 2 | 09/1995 | 52108217273 | $705.87 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 02 | Rear panel | MARINEBLAU | 2 | 09/1995 | 52108217274 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 02 | Rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108217275 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 02 | Rear panel | SANDBEIGE | 2 | 09/1995 | 52108217276 | $697.50 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 02 | Rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108221302 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Lower rear panel | GRAU | 2 | 09/1995 | 52108175784 | $474.01 | ENDED | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | SCHWARZ | 2 | 09/1995 | 52108175785 | $474.01 | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | MARINEBLAU | 2 | 09/1995 | 52108175786 | $460.91 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | SANDBEIGE | 2 | 09/1995 | 52108175787 | $474.01 | ENDED | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108175788 | $474.01 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| -- | Lower rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108189110 | ENDED, +core | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | PEARLBEIGE | 2 | 09/1998 | 52107011373 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52107011374 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52107011374 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Lower rear panel | TOBACCOBRAUN | 2 | 09/1998 | 52108260379 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 02 | Rear panel | PEARLBEIGE | 2 | 09/1998 | 52107011373 | $1690.74 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Lower rear panel | PEARLBEIGE | 2 | 09/1998 | 52108260380 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| CAN BE RETROFITTED | ||||||||||
| 03 | Folding table | NUSSBAUM | 2 | 09/1995 | 52108215111 | $408.46 | ENDED | Shop at ECS Tuning | ||
| 04 | Trim panel | SCHWARZ | 2 | 09/1995 | 52108217267 | $203.11 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel | GRAU | 2 | 09/1995 | 52108217268 | $203.11 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel | MARINEBLAU | 2 | 09/1995 | 52108217269 | $203.11 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel | LAVENDELGRAU | 2 | 09/1995 | 52108217270 | $203.11 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel | SANDBEIGE | 2 | 09/1995 | 52108217271 | $203.11 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel | DUNKELGRUEN | 2 | 09/1996 | 52108221301 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Trim panel | PEARLBEIGE | 2 | 09/1998 | 52107011371 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Trim panel | TOBACCOBRAUN | 2 | 09/1998 | 52107011372 | $189.72 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Set of wooden covers | NUSSBAUM | 2 | 09/1995 | 52108199660 | $283.46 | ENDED | Shop at ECS Tuning | ||
| 06 | Connection plate | 2 | 09/1995 | 52108215109 | $44.69 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Hinge left | 2 | 09/1995 | 52108217265 | $155.12 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Hinge right | 2 | 09/1995 | 52108217266 | $155.12 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Repair kit | 2 | 09/1995 | 52108215103 | $67.80 | Shop at ECS Tuning | ||||
| 09 | Table frame | 2 | 09/1995 | 52108215105 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
