Lower rear multi-purpose panel for BMW 7 Series E38 730iL (1996)

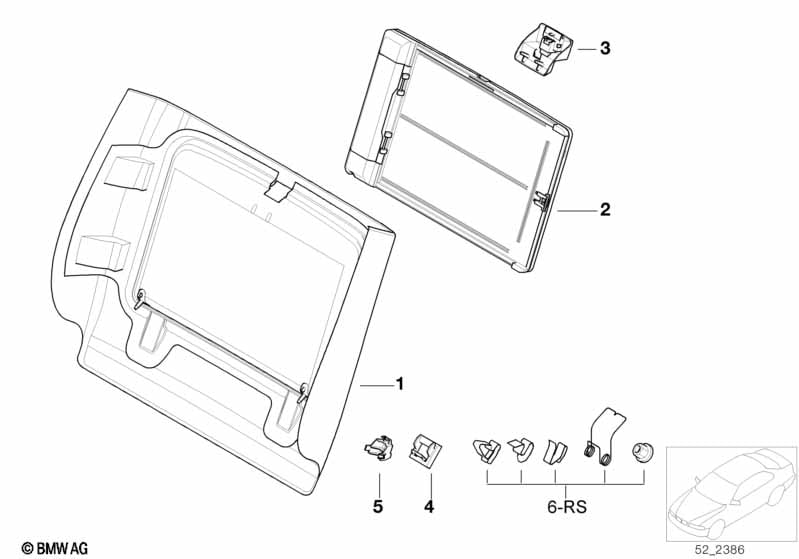

This Lower rear multi-purpose panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CAN BE RETROFITTED additionally required parts: REAR PANEL/FOLDING TABLE Backrest frame |
|||||||||
| UPHOLSTERY LEATHER MONTANA FOR ALL TYPES OF LEATHER UPHOLSTERY |
||||||||||
| 01 | Lower rear panel | SCHWARZ | 2 | 09/1995 | 52108217284 | $757.27 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | GRAU | 2 | 09/1995 | 52108217285 | $757.27 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | MARINEBLAU | 2 | 09/1995 | 52108217286 | $547.96 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108217287 | $547.96 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | SANDBEIGE | 2 | 09/1995 | 52108217288 | $757.27 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108221304 | ENDED, +core | Shop at ECS Tuning | |||
| REAR PANEL WITH BAG UPHOLSTERY LEATHER MONTANA FOR ALL TYPES OF LEATHER UPHOLSTERY |
||||||||||
| 01 | Lower rear panel | GRAU | 2 | 09/1995 | 52108175784 | $474.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Lower rear panel | SCHWARZ | 2 | 09/1995 | 52108175785 | $474.01 | Shop at ECS Tuning | |||
| 01 | Lower rear panel | MARINEBLAU | 2 | 09/1995 | 52108175786 | $460.91 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | SANDBEIGE | 2 | 09/1995 | 52108175787 | $474.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Lower rear panel | LAVENDELGRAU | 2 | 09/1995 | 52108175788 | $474.01 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Lower rear panel | DUNKELGRUEN | 2 | 09/1995 | 52108189110 | ENDED, +core | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER MONTANA FOR ALL TYPES OF LEATHER UPHOLSTERY |
||||||||||
| 02 | Writing pad | SCHWARZ | 2 | 09/1995 | 52108217278 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 02 | Writing pad | GRAU | 2 | 09/1995 | 52108217279 | $869.36 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Writing pad | MARINEBLAU | 2 | 09/1995 | 52108217280 | $641.70 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Writing pad | LAVENDELGRAU | 2 | 09/1995 | 52108217281 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 02 | Writing pad | SANDBEIGE | 2 | 09/1995 | 52108217282 | $641.70 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Lock | 2 | 09/1995 | 52108215107 | $71.24 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Clip | 4 | 09/1995 | 07/2001 | 52108175053 | $0.66 | Shop at ECS Tuning | |||
| 04 | Repair kit clamps | 4 | 09/1995 | 52107240386 | Shop at ECS Tuning | |||||
| 05 | Clip | 4 | 09/1995 | 52108175054 | $2.29 | Shop at ECS Tuning | ||||
| 06 | Mounting parts set | 1 | 09/1995 | 52108197043 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730iL Lower rear multi-purpose panel?
- This technical diagram illustrates the Lower rear multi-purpose panel within the Seats group for the 7 Series E38 730iL produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Lower rear panel (Part #52108217284).
- Which models use the hardware listed in this Lower rear multi-purpose panel?
- The hardware and components featured in the Lower rear multi-purpose panel are specific to the 7 Series E38 730iL produced during 1996. These technical specifications ensure that parts like the Lower rear panel (52108217284) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lower rear multi-purpose panel assembly?
- Each item in the Lower rear multi-purpose panel corresponds to the numbered list below the illustration. For the 7 Series E38 730iL, you can identify the Lower rear panel by locating its position on the schematic, which then links to the official BMW part number 52108217284 for the Seats section.
