Seat rear, upholstery & cover base seat for BMW 5 Series E39 530i (2003)

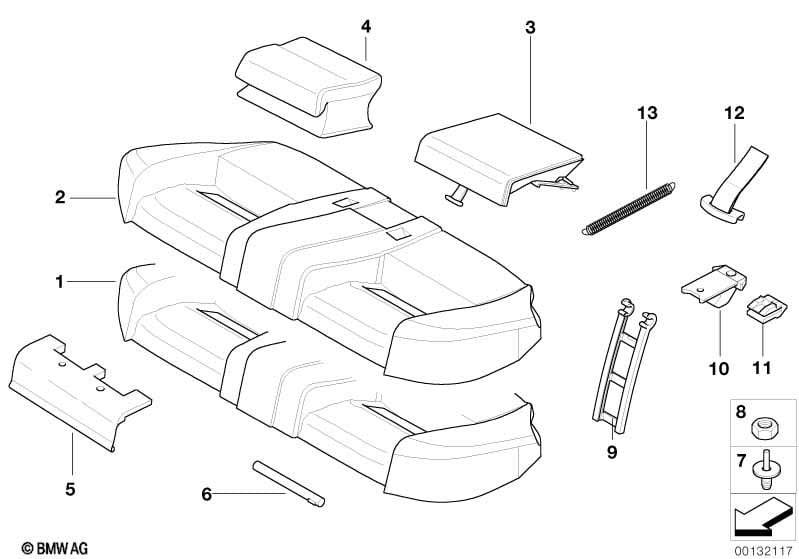

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Seat rear, upholstery & cover base seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Integrated child seats
S469A=Yes
01 Seat upholstery 1 04/1996 52238210424 $467.60 ENDED, +core Shop at ECS Tuning
For vehicles with
Through-loading system
S465A=Yes
01 Seat upholstery 1 04/1996 52238210423 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
N6=Yes
02 Seat cover leather N6SW SCHWARZ 1 04/1996 52238210214 $1023.93 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6TT GRAU 1 04/1996 52238210215 $1023.93 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6AI AUBERGINE 1 04/1996 52238210216 $1023.93 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6SN SANDBEIGE 1 04/1996 52238210217 $1023.93 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6SY SAT.BRAUN 1 04/1996 52238210218 $1023.93 ENDED Shop at ECS Tuning
02 Seat cover leather N6EG ENGL.GRUEN 1 04/1996 52238225684 $1199.70 ENDED Shop at ECS Tuning
02 Seat cover leather N6LG,O7LG GELB 1 09/1998 52238258749 $1199.70 ENDED Shop at ECS Tuning
02 Seat cover leather N6GN,O7GN GRUEN 1 09/1998 52238258750 $1199.70 ENDED Shop at ECS Tuning
For vehicles with
Diagonal rep cloth
F4=Yes
02 Seat cover cloth F4AT ANTHRAZIT 1 04/1996 52238159560 $343.73 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4TT GRAU 1 04/1996 52238159561 $343.73 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4DL MARINEBLAU 1 09/1998 52237055256 $343.73 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4EG ENGL.GRUEN 1 09/1998 52237055257 $343.73 ENDED, +core Shop at ECS Tuning
For vehicles with
Cloth "Headline"
G3=Yes
02 Seat cover cloth G3AT ANTHRAZIT 1 03/2000 52232699872 ENDED, +core Shop at ECS Tuning
For vehicles with
Imitation leather
K4=Yes
02 Seat cover leather K1SW,K4SW SCHW. 1 09/1998 52238210220 $479.00 ENDED Shop at ECS Tuning
02 Seat cover leather K4SN SANDBEIGE 1 09/1998 52238213465 $479.00 ENDED, +core Shop at ECS Tuning
For vehicles with
Through-loading system
and
Cloth "Headline"
S465A=Yes

G3=Yes
02 Seat cover cloth G3AT ANTHRAZIT 1 03/2000 52232699864 ENDED, +core Shop at ECS Tuning
For vehicles with
Through-loading system
and
Leather Mont./basic equipm.
S465A=Yes

N6=Yes
02 Seat cover leather N6SW SCHWARZ 1 09/1998 52238210398 $1027.83 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6TT GRAU 1 09/1998 52238210399 $1027.83 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6AI AUBERGINE 1 09/1998 52238210400 $1009.98 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6SN SANDBEIGE 1 09/1998 52238210401 $1027.83 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6SY SAT.BRAUN 1 09/1998 52238210402 $1009.98 ENDED, +core Shop at ECS Tuning
02 Seat cover leather N6EG ENGL.GRUEN 1 09/1998 52238225686 $1009.98 ENDED, +core Shop at ECS Tuning
For vehicles with
Interior equipment, official, open
and
Imitation leather
Cab vehicle
S125A=Yes

K4=Yes
02 Seat cover leather K1SW,K4SW SCHW. 1 09/1998 52238210220 $479.00 ENDED Shop at ECS Tuning
For vehicles with
Through-loading system
and
Diagonal rep cloth
S465A=Yes

F4=Yes
02 Seat cover cloth F4DL MARINEBLAU 1 09/1998 52237055268 ENDED Shop at ECS Tuning
02 Child seat cover in cloth F4EG ENGL.GRUEN 1 09/1998 52237055269 ENDED Shop at ECS Tuning
02 Seat cover cloth F4AT ANTHRAZIT 1 09/1998 52238158844 ENDED Shop at ECS Tuning
02 Seat cover cloth F4TT GRAU 1 09/1998 52238158845 ENDED Shop at ECS Tuning
02 Seat cover cloth F4BR BIARR.BLAU 1 09/1998 52238158846 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4SR SIENAROT 1 09/1998 52238158847 ENDED, +core Shop at ECS Tuning
For vehicles with
Through-loading system
and
Cloth flock
S465A=Yes

F6=Yes
02 Seat cover cloth F6AT ANTHRAZIT 1 09/1998 52238251677 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F6DL MARINEBLAU 1 09/1998 52238251678 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F6TT GRAU 1 09/1998 52238251679 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F6EG ENGL.GRUEN 1 09/1998 52238255909 ENDED, +core Shop at ECS Tuning
For vehicles with
Through-loading system
and
  Leather Mont./basic equipm.
  or
  Standard leather, montana
S465A=Yes

N6=Yes

O7=Yes
02 Seat cover leather N6LG,O7LG GELB 1 09/1998 52238258775 $1009.98 ENDED Shop at ECS Tuning
02 Seat cover leather N6GN,O7GN GRUEN 1 09/1998 52238258776 $1009.98 ENDED, +core Shop at ECS Tuning
03 Child seat upholstery 2 04/1996 52238210425 ENDED Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
N6=Yes
04 Child seat cover in leather N6SW SCHWARZ 2 04/1996 52238210295 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6TT GRAU 2 04/1996 52238210297 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6AI AUBERGINE 2 04/1996 52238210299 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6SN,O7SN BEIGE 2 04/1996 52238210301 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6SY SAT.BRAUN 2 04/1996 52238210303 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6EG DKL.GRUEN 2 04/1996 52238225688 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6LG,O7LG GELB 2 04/1996 52238258753 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6GN,O7GN GRUEN 2 04/1996 52238258754 ENDED Shop at ECS Tuning
For vehicles with
Diagonal rep cloth
F4=Yes
04 Child seat cover in cloth F4DL MARINEBLAU 2 09/1998 52237055258 ENDED Shop at ECS Tuning
04 Child seat cover in cloth F4EG ENGL.GRUEN 2 09/1998 52237055259 ENDED Shop at ECS Tuning
04 Child seat cover in cloth F4AT ANTHRAZIT 2 09/1998 52238158834 ENDED Shop at ECS Tuning
04 Child seat cover in cloth F4TT GRAU 2 09/1998 52238158835 ENDED Shop at ECS Tuning
04 Child seat cover in cloth F4BR BIARR.BLAU 2 09/1998 52238158836 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F4SR SIENAROT 2 09/1998 52238158837 ENDED Shop at ECS Tuning
For vehicles with
Cloth flock
F6=Yes
04 Child seat cover in cloth F6AT ANTHRAZIT 2 09/1998 52238251669 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F6DL MARINEBLAU 2 09/1998 52238251670 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F6TT GRAU 2 09/1998 52238251671 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F6EG ENGL.GRUEN 2 09/1998 52238255897 ENDED, +core Shop at ECS Tuning
For vehicles with
Cloth "Headline"
G3=Yes
04 Child seat cover in cloth G3AT ANTHRAZIT 2 04/1996 52232699866 ENDED, +core Shop at ECS Tuning
For vehicles with
Imitation leather
K4=Yes
04 Child seat cover in leather K4SN SANDBEIGE 2 04/1996 52238213467 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric, flat "Rattan"
D4=Yes
04 Child seat cover in cloth D4AT ANTHRAZIT 2 04/1996 52238210275 ENDED Shop at ECS Tuning
04 Child seat cover in cloth D4TT GRAU 2 04/1996 52238210277 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth D4EG ENGL.GRUEN 2 04/1996 52238210279 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth D4KU KOENIGBLAU 2 04/1996 52238210281 ENDED Shop at ECS Tuning
For vehicles with
Imitation leather
or
Imitation leather
K1=Yes

K4=Yes
04 Child seat cover in leather K1SW,K4SW SCHW. 2 04/1996 52238210307 ENDED, +core Shop at ECS Tuning
For vehicles with
Cloth flock "Streifen"
or
Cloth flock "Streifen"
D3=Yes

D9=Yes
04 Child seat cover in cloth D3AT,D9AT ANTHR 2 04/1996 52238210267 ENDED Shop at ECS Tuning
04 Child seat cover in cloth D3TT,D9TT GRAU 2 04/1996 52238210269 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth D3DL,D9DL BLAU 2 04/1996 52238210271 ENDED Shop at ECS Tuning
For vehicles with
Interior equipment, official, open
and
  Imitation leather
  or
  Imitation leather
Cab vehicle
S125A=Yes

K1=Yes

K4=Yes
04 Child seat cover in leather K1SW,K4SW SCHW. 2 04/1996 52238210307 ENDED, +core Shop at ECS Tuning
05 Seat center part cover CARAMEL 2 04/1996 52237902612 ENDED, +core Shop at ECS Tuning
05 Seat center part cover SCHWARZ 2 04/1996 52238210311 +core Shop at ECS Tuning
05 Seat center part cover GRAU 2 04/1996 52238210313 ENDED, +core Shop at ECS Tuning
05 Seat center part cover MARINEBLAU 2 04/1996 52238210315 ENDED, +core Shop at ECS Tuning
05 Seat center part cover ENGLISCHGRUEN 2 04/1996 52238210317 ENDED, +core Shop at ECS Tuning
05 Seat center part cover SANDBEIGE 2 04/1996 52238210319 ENDED, +core Shop at ECS Tuning
06 Pin 8X95 2 04/1996 52238210427 ENDED Shop at ECS Tuning
07 Expanding rivet, black L=15MM 4 04/1996 51111944537 $0.30 Shop at ECS Tuning
08 Self-locking hex nut M6-Z1 X 04/1996 07119915702 $0.28 Shop at ECS Tuning
09 Rod center WEISS 2 04/1996 52238228046 $7.03 Shop at ECS Tuning
10 Clip WEISS 4 04/1996 52238228044 $1.58 ENDED Shop at ECS Tuning
11 Clip WEISS 4 04/1996 52238228045 $2.17 Shop at ECS Tuning
12 Loop tape 2 04/1996 52238228047 $9.24 ENDED Shop at ECS Tuning
13 Spring 4 04/1996 52238228043 $2.10 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
