Rear seat center armrest for BMW 3 Series E36 323i (1999)

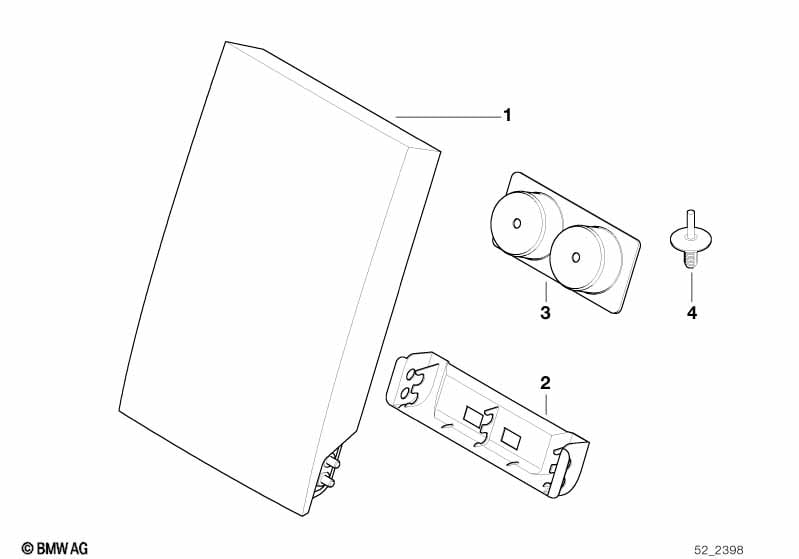

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ARMREST F SKI BAG ALSO FOR VEHICLES WITHOUT SKI BAG |
|||||||||
| FAMILY KIT | ||||||||||
| 01 | Armrest cloth | E7OL OELBLAU | 1 | 52202492362 | ENDED, +core | Shop at ECS Tuning | ||||
| Cloth "Boa Boa" | ||||||||||
| 01 | Armrest cloth | BLAUVIOLETT | 1 | 52202423954 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | MARON | 1 | 52202423996 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | ROT | 1 | 52202424040 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 01 | Armrest cloth | E7OL OELBLAU | 1 | 52202492362 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Cover | SCHWARZ | 1 | 52208202228 | ENDED | Shop at ECS Tuning | ||||
| 03 | Insert | SCHWARZ | 1 | 52202492363 | ENDED | Shop at ECS Tuning | ||||
| 04 | Expanding rivet, black | L=15MM | 2 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
