Rear seat head restraint for BMW 5 Series E39 525d (2003)

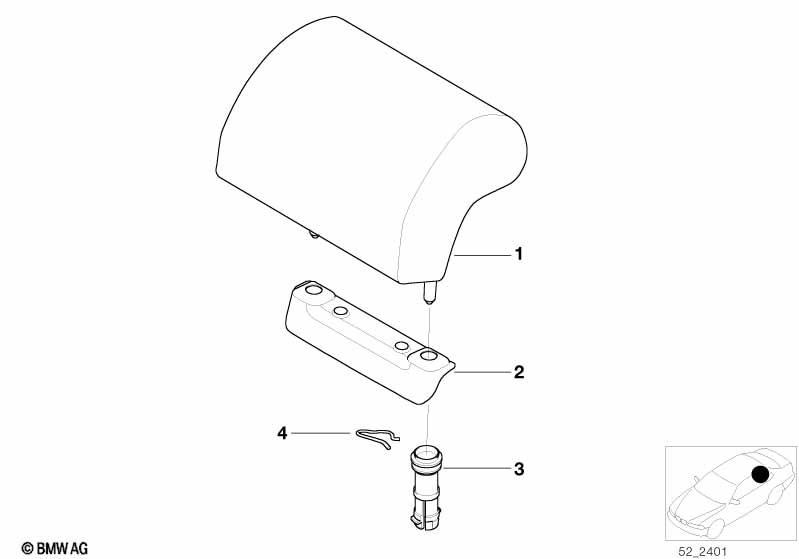

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 01 | Headrest leather | V6SW SCHWARZ | 2 | 09/2001 | 52207049446 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | V6SN SANDBEIGE | 2 | 09/2001 | 52207049447 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | V6BG BURGUND | 2 | 09/2001 | 52207049448 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Sportline" |
J3=Yes |
|||||||||
| 01 | Headrest leather | J3AT ANTHRAZIT | 2 | 09/2001 | 52207049638 | $137.27 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | J3FA FLANELGRAU | 2 | 09/2001 | 52207049639 | $137.27 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | J3GC GRAUBLAU | 2 | 09/2001 | 52207049640 | $137.27 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K4=Yes |
|||||||||
| 01 | Headrest imitation leather | K4SW SCHWARZ | 1 | 52207047601 | $120.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest imitation leather | K4SN SANDBEIGE | 1 | 52207047602 | $120.53 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 01 | Headrest leather | N6SW SCHWARZ | 1 | 52207047604 | $202.88 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | N6TT GRAU | 1 | 52207047605 | $202.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 01 | Head rest cloth | F4AT ANTHRAZIT | 1 | 03/1998 | 52207047596 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4TT GRAU | 1 | 03/1998 | 52207047597 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4DL MARINEBLAU | 1 | 09/2001 | 52207054529 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4EG ENGL.GRUEN | 1 | 09/2001 | 52207054530 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package and Cloth "Headline" |
P337A=Yes G3=Yes |
|||||||||
| 01 | Head rest cloth | G3AT ANTHRAZIT | 2 | 09/2001 | 52207832585 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 01 | Headrest leather | N6SN,O7SN BEIGE | 1 | 52207047606 | $166.28 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | N6GN,O7GN STEIN | 1 | 09/1998 | 52207047607 | $166.28 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N6LG,O7LG LIGHT | 1 | 09/1998 | 52207047608 | $166.28 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Centre head rest cover | SCHWARZ | 1 | 52208200769 | $6.08 | ENDED | Shop at ECS Tuning | |||
| 02 | Centre head rest cover | GRAU | 1 | 52208200771 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Centre head rest cover | MARINEBLAU | 1 | 52208200773 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Centre head rest cover | DUNKELGRUEN | 1 | 52208200775 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Centre head rest cover | SANDBEIGE | 1 | 52208200777 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide | 2 | 52208391750 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring washer | 1,4 MM | 2 | 52108132021 | $0.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
