Seat rear, upholstery & cover base seat for BMW 5 Series E39 530i (2003)

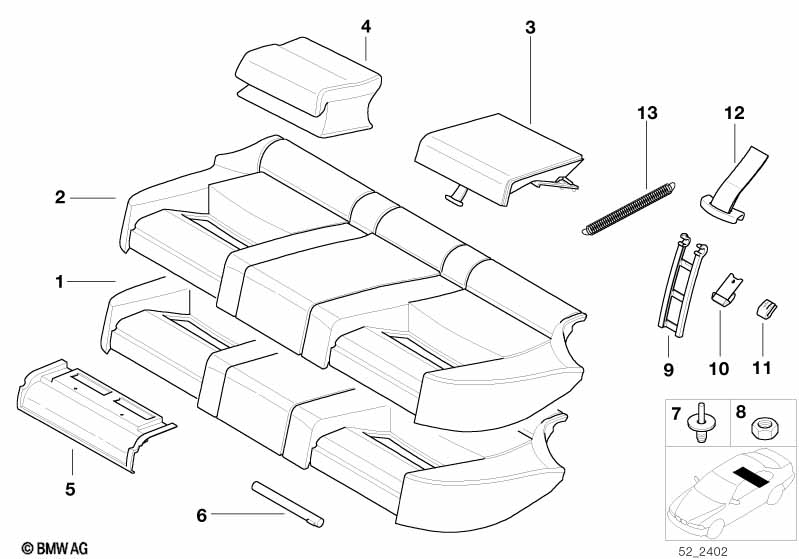

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Seat rear, upholstery & cover base seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Integrated child seats
S469A=Yes
01 Seat upholstery 1 52238193278 ENDED Shop at ECS Tuning
For vehicles with
Diagonal rep cloth
F4=Yes
02 Seat cover cloth F4AT ANTHRAZIT 1 03/1998 52238158854 ENDED Shop at ECS Tuning
02 Seat cover cloth F4TT GRAU 1 03/1998 52238158855 ENDED Shop at ECS Tuning
02 Seat cover cloth F4BR BIARR.BLAU 1 09/1998 52238158856 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4SR SIENAROT 1 09/1998 52238158857 ENDED Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
N6=Yes
02 Seat cover leather N6SW SCHWARZ 1 52238213398 ENDED Shop at ECS Tuning
02 Seat cover leather N6TT GRAU 1 52238213399 ENDED Shop at ECS Tuning
02 Seat cover leather N6AI AUBERGINE 1 52238213400 ENDED Shop at ECS Tuning
02 Seat cover leather N6SY SAT.BRAUN 1 52238213402 ENDED Shop at ECS Tuning
02 Seat cover leather N6EG DKL.GRUEN 1 52238220706 ENDED Shop at ECS Tuning
For vehicles with
Imitation leather
K4=Yes
02 Seat cover vinyl K4SW SCHWARZ 1 52237009147 ENDED Shop at ECS Tuning
For vehicles with
Cloth flock
F6=Yes
02 Seat cover cloth F6AT ANTHRAZIT 1 09/1998 52238251689 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F6DL MARINEBLAU 1 09/1998 52238251690 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F6TT GRAU 1 09/1998 52238251691 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F6EG ENGL.GRUEN 1 09/1998 52238255915 ENDED, +core Shop at ECS Tuning
For vehicles with
Diagonal rep cloth
and
National version USA
F4=Yes

=Yes
02 Seat cover cloth F4AT ANTHRAZIT 1 03/1998 52238247645 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4TT GRAU 1 03/1998 52238247646 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4SR SIENAROT 1 09/1998 52238247647 ENDED, +core Shop at ECS Tuning
02 Seat cover cloth F4BR BIAR.BLAU 1 09/1998 52238247648 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, montana
N6=Yes

O7=Yes
02 Seat cover leather N6SN,O7SN BEIGE 1 52238213401 ENDED Shop at ECS Tuning
02 Seat cover leather N6LG,O7LG LIGHT 1 09/1998 52238258833 ENDED Shop at ECS Tuning
02 Seat cover leather N6GN,O7GN STEIN 1 09/1998 52238258834 ENDED, +core Shop at ECS Tuning
03 Child seat upholstery 2 52238210425 ENDED Shop at ECS Tuning
For vehicles with
Diagonal rep cloth
F4=Yes
04 Child seat cover in cloth F4AT ANTHRAZIT 2 03/1998 52238158834 ENDED Shop at ECS Tuning
04 Child seat cover in cloth F4TT GRAU 2 03/1998 52238158835 ENDED Shop at ECS Tuning
04 Child seat cover in cloth F4BR BIARR.BLAU 2 03/1998 52238158836 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F4SR SIENAROT 2 03/1998 52238158837 ENDED Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
N6=Yes
04 Child seat cover in leather N6SW SCHWARZ 2 52238210295 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6TT GRAU 2 52238210297 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6AI AUBERGINE 2 52238210299 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6SY SAT.BRAUN 2 52238210303 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6EG DKL.GRUEN 2 52238225688 ENDED Shop at ECS Tuning
For vehicles with
Imitation leather
K4=Yes
04 Child seat cover, imitation leather K4SW SCHWARZ 2 52237009148 ENDED Shop at ECS Tuning
For vehicles with
Cloth flock
F6=Yes
04 Child seat cover in cloth F6AT ANTHRAZIT 2 09/1998 52238251669 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F6DL MARINEBLAU 2 09/1998 52238251670 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F6TT GRAU 2 09/1998 52238251671 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F6EG ENGL.GRUEN 2 09/1998 52238255897 ENDED, +core Shop at ECS Tuning
For vehicles with
Diagonal rep cloth
and
National version USA
F4=Yes

=Yes
04 Child seat cover in cloth F4AT ANTHRAZIT 2 03/1998 52238246795 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F4TT GRAU 2 03/1998 52238246796 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F4SR SIENAROT 2 09/1998 52238246797 ENDED, +core Shop at ECS Tuning
04 Child seat cover in cloth F4BR BIAR.BLAU 2 09/1998 52238246798 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, montana
N6=Yes

O7=Yes
04 Child seat cover in leather N6SN,O7SN BEIGE 2 52238210301 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6LG,O7LG GELB 2 09/1998 52238258753 ENDED Shop at ECS Tuning
04 Child seat cover in leather N6GN,O7GN GRUEN 2 09/1998 52238258754 ENDED Shop at ECS Tuning
05 Covering left SCHWARZ 1 52238213405 ENDED, +core Shop at ECS Tuning
05 Covering right SCHWARZ 1 52238213406 ENDED, +core Shop at ECS Tuning
05 Covering left GRAU 1 52238213407 ENDED, +core Shop at ECS Tuning
05 Covering right GRAU 1 52238213408 ENDED, +core Shop at ECS Tuning
05 Covering left MARINEBLAU 1 52238213409 ENDED, +core Shop at ECS Tuning
05 Covering right MARINEBLAU 1 52238213410 ENDED, +core Shop at ECS Tuning
05 Covering left DUNKELGRUEN 1 52238213411 ENDED, +core Shop at ECS Tuning
05 Covering right DUNKELGRUEN 1 52238213412 ENDED, +core Shop at ECS Tuning
05 Covering left SANDBEIGE 1 52238213413 ENDED, +core Shop at ECS Tuning
05 Covering right SANDBEIGE 1 52238213414 ENDED, +core Shop at ECS Tuning
06 Pin 8X95 2 52238210427 ENDED Shop at ECS Tuning
07 Expanding rivet, black L=15MM 4 51111944537 $0.30 Shop at ECS Tuning
08 Self-locking hex nut M6-Z1 4 07119915702 $0.28 Shop at ECS Tuning
09 Clip WEISS 2 52238228044 $1.58 ENDED Shop at ECS Tuning
10 Clip WEISS 2 52238228045 $2.17 Shop at ECS Tuning
11 Rod center WEISS 2 52238228046 $7.03 Shop at ECS Tuning
12 Loop tape 2 52238228047 $9.24 ENDED Shop at ECS Tuning
13 Spring 4 52238228043 $2.10 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
