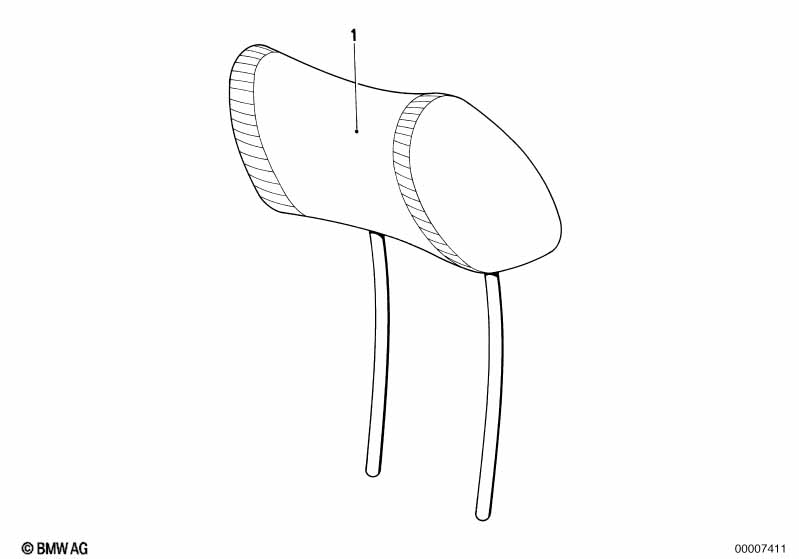

BMW sportseat headrest front mech./el. for BMW 5 Series E34 525td (1995)
This BMW sportseat headrest front mech./el. technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headrest imitation leather | 0477 SCHWARZ | 2 | 05/1993 | 52108171204 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest imitation leather | 0478 ULTRAMARIN | 2 | 05/1993 | 52108171205 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest imitation leather | 0479 PERGAMENT | 2 | 05/1993 | 52108171206 | $111.89 | ENDED | Shop at ECS Tuning | ||
| HIGH QUALITY CLOTH VERSION 0406,0411,0427=anthrazit 0407,0412,0428=silber-grau 0408,0413,0429=ultramarin 0409,0414,0430=pergament |
||||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 05/1993 | 52108171199 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | SILBERGRAU | 2 | 05/1993 | 52108171200 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | ULTRAMARIN | 2 | 05/1993 | 52108171201 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | PERGAMENT | 2 | 05/1993 | 52108171202 | $111.89 | ENDED | Shop at ECS Tuning | ||
| FOR EXECUTIVE EQUIPMENT | ||||||||||
| 01 | Headrest leather | D2GR SCHWARZ | 2 | 52102262908 | ENDED | Shop at ECS Tuning | ||||
| UPHOLSTERY LEATHER BISON 0203,0325,0366=schwarz 0483,0486,0487=silber-grau 0394,0451,0455=silber-grau hell 0395,0452,0456=ultramarin 0396,0453,0457=pergament |
||||||||||
| 01 | Headrest leather | PERGAMENT | 2 | 05/1993 | 52108171221 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | SCHWARZ | 2 | 05/1993 | 52108171223 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | SILBERGRAU | 2 | 05/1993 | 52108171224 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | SILBERGRAU HELL | 2 | 05/1993 | 52108171225 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | ULTRAMARIN | 2 | 05/1993 | 52108171226 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER BUFFALO 0180,0418,0459 anthrazit 0362,0460 brasil |
||||||||||
| 01 | Headrest leather | ANTHRAZIT | 2 | 05/1993 | 52108171228 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
