Cover material, running meter for BMW 5 Series E28 524td (1987)

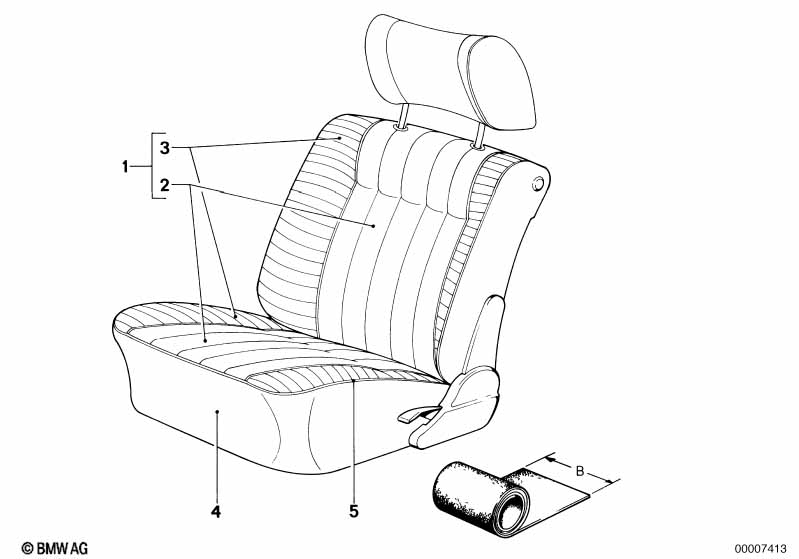

This Cover material, running meter technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to NATIONAL VERSION ITALY For vehicles with National version italy |
L814A=Yes |
||||||||
| 02 | Upholstery cloth | 0258 PACIFIC | X | 04/1986 | 51921948077 | $184.14 | Shop at ECS Tuning | |||
| 02 | Upholstery cloth | 0259 NUTRIA | X | 04/1986 | 51921948078 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Upholstery cloth | 0260 PERLBEIGE | X | 04/1986 | 51921948079 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Upholstery cloth | 0261 PINIENGR. | X | 04/1986 | 51921948080 | ENDED | Shop at ECS Tuning | |||
| 02 | Upholstery cloth | 0257 ANTHRAZIT | X | 04/1986 | 51921951429 | $184.14 | Shop at ECS Tuning | |||
| 03 | Upholstery cloth anthrazit | 0091/0129/0150 | X | 51921875767 | $185.80 | ENDED | Shop at ECS Tuning | |||
| 03 | Upholstery cloth anthrazit | 0091/0129/0150 | X | 51927038066 | $190.84 | ENDED | Shop at ECS Tuning | |||
| 03 | Upholstery cloth pacific | 0092/0130/0151 | X | 51921875768 | $183.02 | Shop at ECS Tuning | ||||
| 03 | Upholstery cloth piniengrün | 0133/0154/0255 | X | 51921883778 | $179.45 | Shop at ECS Tuning | ||||
| 03 | Upholstery cloth nutria | 0169/0253/0259 | X | 51921911232 | $143.96 | ENDED | Shop at ECS Tuning | |||
| 03 | Upholstery cloth perlbeige | 0170/0254/0260 | X | 51921911233 | $138.29 | ENDED | Shop at ECS Tuning | |||
| 04 | Upholstery vinyl pacific | 0105/0258/0263 | X | 51921875739 | $41.85 | Shop at ECS Tuning | ||||
| 04 | Upholstery vinyl piniengrün | 0126/0261/0266 | X | 51921883772 | ENDED | Shop at ECS Tuning | ||||
| 04 | Upholstery vinyl schwarz | 0005/0050/0257 | X | 51921905498 | $53.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Upholstery vinyl nutria | 0164/0259/0264 | X | 51921911617 | $46.87 | ENDED | Shop at ECS Tuning | |||
| 04 | Upholstery vinyl perlbeige | 0165/0260/0265 | X | 51921911618 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
