BMW sports seat seat rail mechanical for BMW 5 Series E34 525tds (1996)

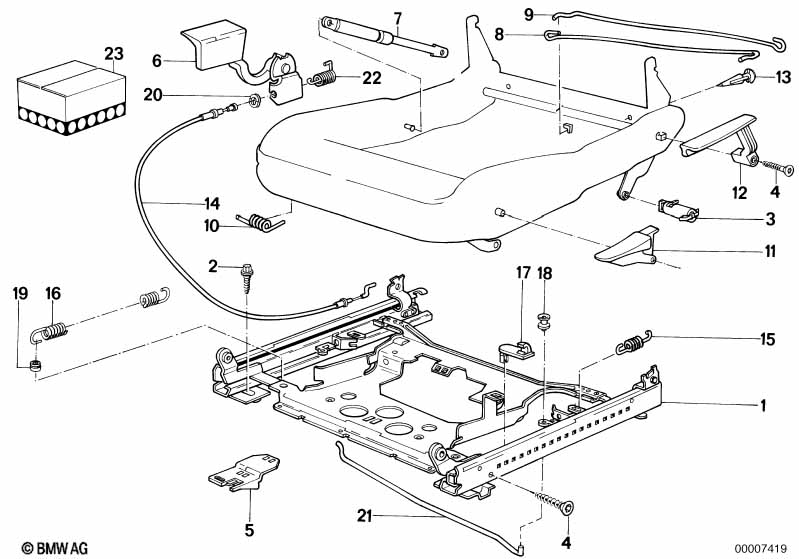

This BMW sports seat seat rail mechanical technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat rail left extended | 1 | 52108168157 | $469.84 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat rail right extended | 1 | 52108168158 | $469.84 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat rail left | 1 | 09/1992 | 52108155177 | $177.44 | +core | Shop at ECS Tuning | |||
| 01 | Seat rail right | 1 | 09/1992 | 52108155180 | $177.44 | ENDED | Shop at ECS Tuning | |||
| 02 | Torx bolt | ASA M10X28 | 8 | 52101954097 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Pin | 8 | 52101938012 | $1.75 | Shop at ECS Tuning | |||||
| 04 | Recessed oval head sheet-metal screw | ST3,5X9,5 | X | 07119902524 | $0.82 | Shop at ECS Tuning | ||||
| For vehicles with Seat, electrically adjustable, front |
=Yes |
|||||||||
| 05 | Bracket first aid box | 1 | 52101945440 | $2.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Seat rail right | 1 | 52101978088 | ENDED | Shop at ECS Tuning | |||||
| 06 | Lever left | 1 | 52101954413 | $14.06 | Shop at ECS Tuning | |||||
| 06 | Lever right | 1 | 52101954414 | $19.20 | Shop at ECS Tuning | |||||
| 07 | Gas pressurized spring | 2 | 52101964173 | $30.86 | Shop at ECS Tuning | |||||
| 08 | Torsion spring left | 1 | 52101964179 | $7.04 | Shop at ECS Tuning | |||||
| 09 | Torsion spring right | 1 | 52101964180 | $7.04 | ENDED | Shop at ECS Tuning | ||||
| 10 | Spring left | 1 | 52101964181 | $1.94 | ENDED | Shop at ECS Tuning | ||||
| 10 | Spring right | 1 | 52101964182 | $1.94 | ENDED | Shop at ECS Tuning | ||||
| 11 | Lever left | 1 | 52101928961 | $8.70 | Shop at ECS Tuning | |||||
| 12 | Lever left | 1 | 52101928973 | $8.43 | Shop at ECS Tuning | |||||
| 12 | Lever right | 1 | 52101928974 | $6.81 | Shop at ECS Tuning | |||||
| 13 | Clip | X | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 14 | Bowden cable | 2 | 52101956900 | $8.43 | Shop at ECS Tuning | |||||
| 15 | Spring | 4 | 52101964996 | $0.48 | Shop at ECS Tuning | |||||
| 17 | Clamp | 2 | 52101903871 | $0.71 | Shop at ECS Tuning | |||||
| 18 | Clamp | 2 | 52101964999 | $0.71 | Shop at ECS Tuning | |||||
| 19 | Grommet | 8 | 52101964998 | $0.51 | Shop at ECS Tuning | |||||
| 20 | Wave washer | 2 | 52101964870 | $0.20 | ENDED | Shop at ECS Tuning | ||||
| 21 | Connection rod, seat catch, left | 1 | 52101964983 | $38.94 | Shop at ECS Tuning | |||||
| 21 | Connection rod, seat catch, right | 1 | 52101964984 | $38.94 | ENDED | Shop at ECS Tuning | ||||
| 22 | Spring | 2 | 52101964230 | $0.93 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
