BMW sportseat seat cover for BMW 7 Series E23 728i (1982)

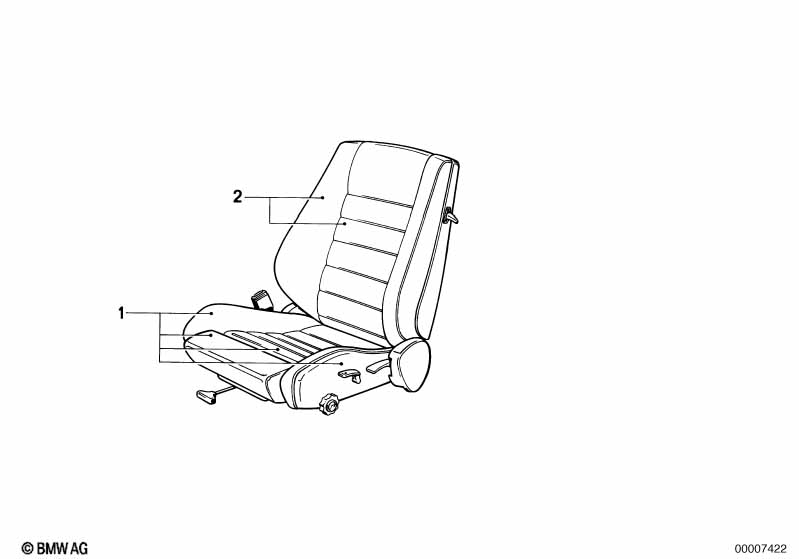

This BMW sportseat seat cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 724-725 | |||||||||
| Ausführung 702/723 | ||||||||||
| 01 | Seat cover leather | 0159 SCHWARZ | 2 | 09/1984 | 52101923487 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0160 PACIFIC | 2 | 09/1984 | 52101923488 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0157 NUTRIA | 2 | 09/1984 | 52101923489 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0158 PERLBEIGE | 2 | 09/1984 | 52101923490 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0159 SCHWARZ | 2 | 09/1984 | 52101923493 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0160 PACIFIC | 2 | 09/1984 | 52101923494 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0157 NUTRIA | 2 | 09/1984 | 52101923495 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0158 PERLBEIGE | 2 | 09/1984 | 52101923496 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
