BMW sports seat coverings for BMW 7 Series E23 732i (1982)

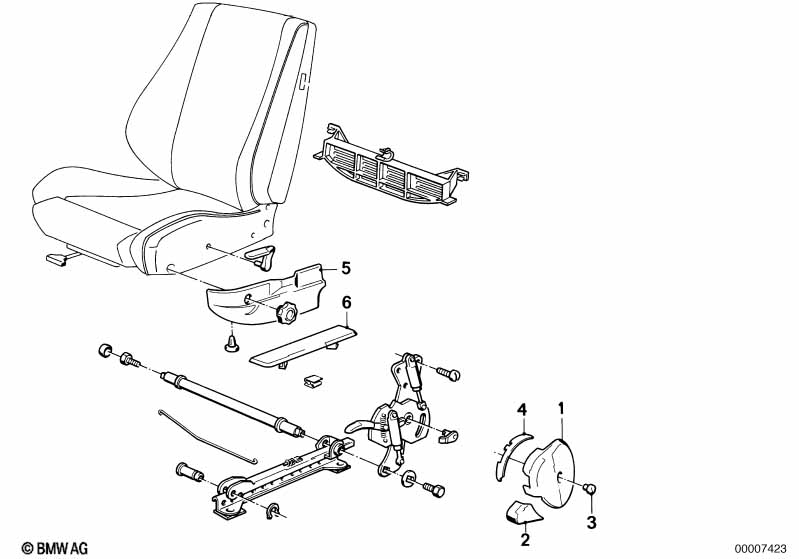

This BMW sports seat coverings technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 702-703-704/723-724-725 | |||||||||
| 01 | Cover panel outer left | ANTHRAZIT | 1 | 52101904819 | $6.51 | Shop at ECS Tuning | ||||
| 01 | Cover panel outer right | ANTHRAZIT | 1 | 52101904820 | $3.67 | Shop at ECS Tuning | ||||
| 01 | Covering inner left | ANTHRAZIT | 1 | 52101904821 | $6.51 | Shop at ECS Tuning | ||||
| 01 | Covering inner right | ANTHRAZIT | 1 | 52101904822 | $6.51 | Shop at ECS Tuning | ||||
| 01 | Cover panel outer left | NUTRIA | 1 | 52101926791 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover panel outer right | NUTRIA | 1 | 52101926792 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover panel outer left | PERLBEIGE | 1 | 52101926793 | $4.62 | Shop at ECS Tuning | ||||
| 01 | Cover panel outer right | PERLBEIGE | 1 | 52101926794 | $4.62 | Shop at ECS Tuning | ||||
| 01 | Covering inner left | NUTRIA | 1 | 52101926795 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering inner right | NUTRIA | 1 | 52101926796 | $5.13 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering inner left | PERLBEIGE | 1 | 52101926797 | $29.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering inner right | PERLBEIGE | 1 | 52101926798 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
