BMW sportseat seat cover for BMW 5 Series E28 528e (1987)

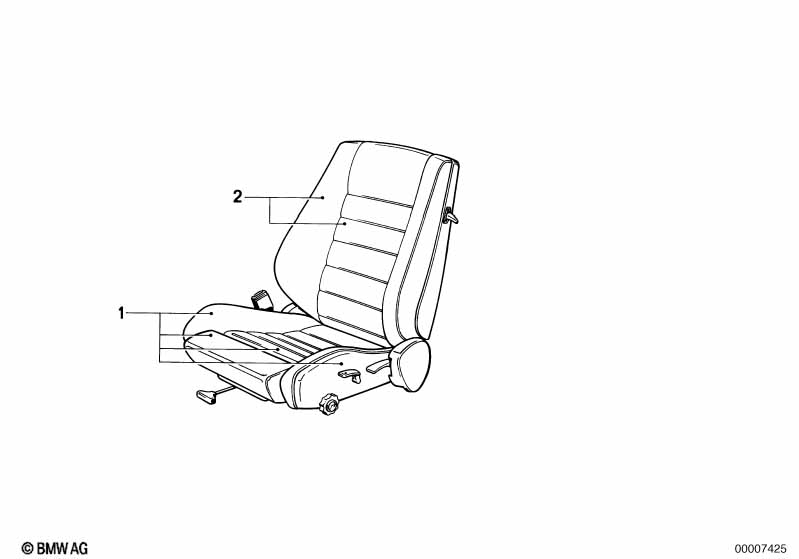

This BMW sportseat seat cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat cover leather | 0209 LAMA | 2 | 09/1984 | 52101936170 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0203 SCHWARZ | 2 | 09/1984 | 52101936326 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0204 PACIFIC | 2 | 09/1984 | 52101936327 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0205 NUTRIA | 2 | 09/1984 | 52101936328 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0206 PERLBEIGE | 2 | 09/1984 | 52101936329 | $459.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0257 ANTHRAZIT | 2 | 07/1986 | 52101966102 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0258 PACIFIC | 2 | 07/1986 | 52101966103 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0259 NUTRIA | 2 | 07/1986 | 52101966104 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0260 PERLBEIGE | 2 | 07/1986 | 52101966105 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0261 PINIENGR. | 2 | 07/1986 | 52101966106 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0239/0256 C.ROT | 2 | 11/1986 | 52101962565 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0209 LAMA | 2 | 09/1984 | 52101936171 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0203 SCHWARZ | 2 | 09/1984 | 52101936331 | $432.26 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0204 PACIFIC | 2 | 09/1984 | 52101936332 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0205 NUTRIA | 2 | 09/1984 | 52101936333 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0206 PERLBEIGE | 2 | 09/1984 | 52101936334 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0257 ANTHRAZIT | 2 | 07/1986 | 52101966108 | $129.46 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0258 PACIFIC | 2 | 07/1986 | 52101966109 | $139.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0259 NUTRIA | 2 | 07/1986 | 52101966110 | $139.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0260 PERLBEIGE | 2 | 07/1986 | 52101966111 | $118.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0261 PINIENGR. | 2 | 07/1986 | 52101966112 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0239/0256 C.ROT | 2 | 11/1986 | 52101962570 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
