Seat cover rear for BMW 5 Series E12 520 (1981)

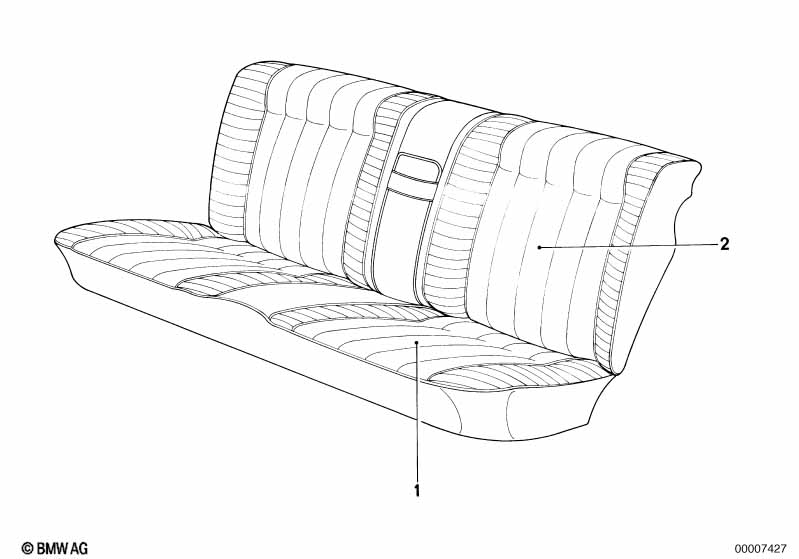

This Seat cover rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat cover vinyl light-grey rear | 0008 | 1 | 08/1973 | 52201841351 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl nylon-brown rear | 0007 | 1 | 08/1973 | 52201841352 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl navy-blue rear | 0006 | 1 | 08/1973 | 52201841353 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl black rear | 0005 | 1 | 08/1973 | 52201841354 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl nylon brown rear | 0007 | 1 | 08/1973 | 52201831882 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl black rear | 0005 | 1 | 08/1973 | 52201831884 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl fern green rear | 0048 | 1 | 08/1973 | 52201863270 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
