Rear seat cover for BMW 7 Series E23 735i (1985)

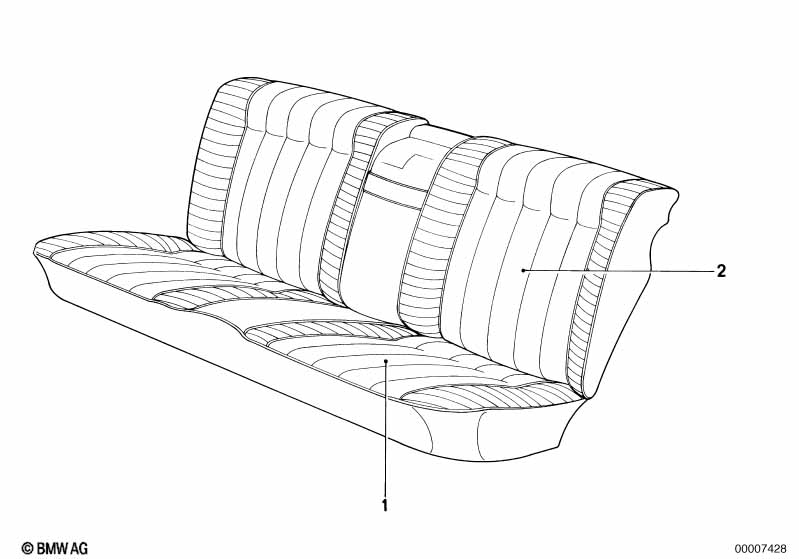

This Rear seat cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat cover cloth | 0096 ANTHRAZIT | 1 | 10/1980 | 52201879121 | $379.44 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0097 PACIFIC | 1 | 10/1980 | 52201879122 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | PINE GREEN | 1 | 10/1980 | 52203907857 | Shop at ECS Tuning | ||||
| 01 | Seat cover cloth nutria | 1 | 01/1983 | 52203908072 | Shop at ECS Tuning | |||||
| 01 | Seat cover cloth perlbeige | 1 | 01/1983 | 52203908073 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Rear seat cover?
- This technical diagram illustrates the Rear seat cover within the Seats group for the 7 Series E23 735i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Seat cover cloth (Part #52201879121).
- Which models use the hardware listed in this Rear seat cover?
- The hardware and components featured in the Rear seat cover are specific to the 7 Series E23 735i produced during 1985. These technical specifications ensure that parts like the Seat cover cloth (52201879121) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear seat cover assembly?
- Each item in the Rear seat cover corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Seat cover cloth by locating its position on the schematic, which then links to the official BMW part number 52201879121 for the Seats section.
