Bench seat for BMW R45-R65LS..78-85 R65 (1985)

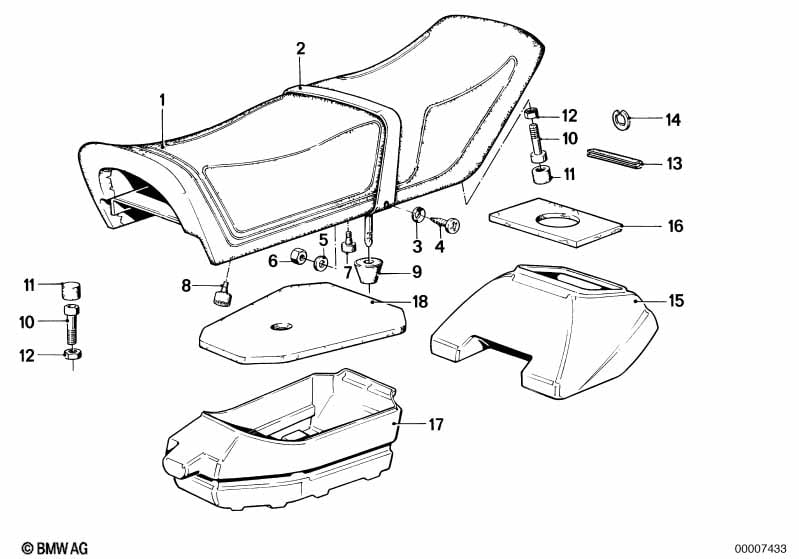

This Bench seat technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bench seat | 1 | 09/1980 | 52531242160 | $447.68 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Low-profile bench seat | 1 | 09/1980 | 52531453306 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin | 1 | 09/1980 | 52531452295 | $24.36 | Shop at ECS Tuning | ||||
| -- | Bump stop | 1 | 09/1980 | 52531452296 | $4.47 | Shop at ECS Tuning | ||||
| -- | Washer | 8,4X24X2-ZNS3 | 1 | 09/1980 | 07119904164 | $0.40 | Shop at ECS Tuning | |||
| -- | Hex nut | M8-05-ZNNIV SI | 1 | 09/1980 | 07119904948 | $1.00 | Shop at ECS Tuning | |||
| 02 | Strap | SCHWARZ | 1 | 09/1980 | 52532307090 | $49.09 | ENDED | Shop at ECS Tuning | ||
| 03 | Hollow washer | 2 | 09/1980 | 52531231327 | $2.71 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | 10X5,3X1-200 HV | 4 | 09/1980 | 07119904206 | Shop at ECS Tuning | ||||
| 05 | Washer | 5.3-140 HV-ZNS | 4 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 07 | Bump stop | H=10 | 2 | 09/1980 | 52531236128 | $2.80 | Shop at ECS Tuning | |||
| 08 | Support | H=16 | 2 | 09/1980 | 52531232904 | $2.80 | Shop at ECS Tuning | |||
| 09 | Pad | 1 | 09/1980 | 52532301867 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | M8X40-8.8-ZNS3 | 2 | 09/1980 | 07119902984 | $1.93 | Shop at ECS Tuning | |||
| 11 | Bump stop | 2 | 09/1980 | 52531451524 | $0.72 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X40-8.8-ZNS3 | 2 | 09/1980 | 07119902984 | $1.93 | Shop at ECS Tuning | |||
| 12 | Hex nut | M8-05-ZNNIV SI | 2 | 09/1980 | 07119904948 | $1.00 | Shop at ECS Tuning | |||
| 13 | Edge protection | 2 | 09/1980 | 52531240584 | ENDED | Shop at ECS Tuning | ||||
| 14 | Clamping plate | D=6MM | 2 | 09/1980 | 07129934319 | $1.33 | Shop at ECS Tuning | |||
| 15 | Storing partition | 1 | 09/1980 | 52531242172 | $53.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rubber support | D=18MM | 3 | 09/1980 | 52531230319 | $2.58 | Shop at ECS Tuning | |||
| 16 | Gasket | 1 | 09/1980 | 52531242174 | $1.30 | ENDED | Shop at ECS Tuning | |||
| 17 | Tool box | 1 | 09/1980 | 52531242167 | $74.11 | Shop at ECS Tuning | ||||
| 18 | Gasket | 1 | 09/1980 | 52531242168 | $21.70 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Bench seat?
- This technical diagram illustrates the Bench seat within the Seats and seat bench group for the R45-R65LS..78-85 R65 produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Bench seat (Part #52531242160).
- Which models use the hardware listed in this Bench seat?
- The hardware and components featured in the Bench seat are specific to the R45-R65LS..78-85 R65 produced during 1985. These technical specifications ensure that parts like the Bench seat (52531242160) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bench seat assembly?
- Each item in the Bench seat corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Bench seat by locating its position on the schematic, which then links to the official BMW part number 52531242160 for the Seats and seat bench section.
