Bench seat, officials utility for BMW R45-R65LS..78-85 R65 (1983)

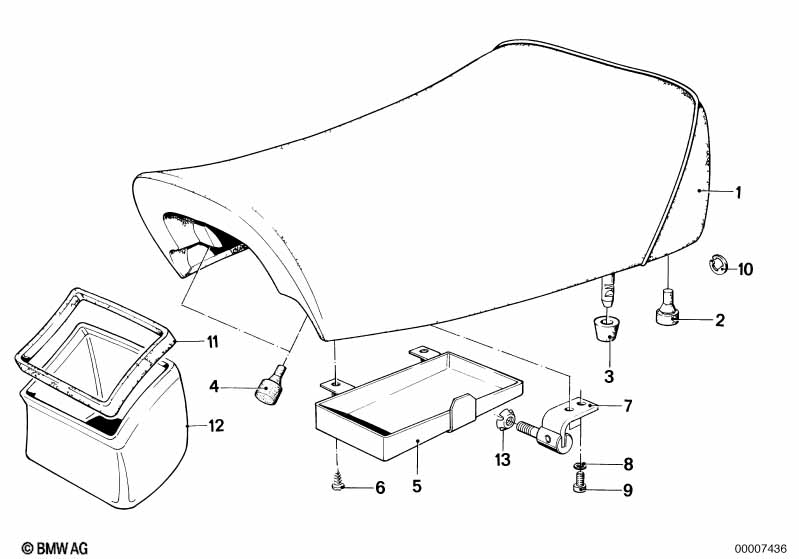

This Bench seat, officials utility technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Single seat | 1 | 52531236940 | $441.92 | +core | Shop at ECS Tuning | ||||
| 02 | Bump stop | H=10 | 5 | 52531236128 | $2.80 | Shop at ECS Tuning | ||||
| 03 | Bump stop | 1 | 52531452296 | $4.47 | Shop at ECS Tuning | |||||
| 04 | Support | H=16 | 2 | 52531232904 | $2.80 | Shop at ECS Tuning | ||||
| 05 | Flap | 1 | 52531234719 | $2.67 | ENDED | Shop at ECS Tuning | ||||
| 06 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 07 | Hinge | 1 | 52531236948 | $30.05 | Shop at ECS Tuning | |||||
| 08 | Spring washer | 6-ZN | 2 | 07119933231 | $0.09 | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 08 | Spring washer | 5-ZN | 2 | 07119933222 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M5X12 | 2 | 07119919613 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M6X12-8.8-ZNS | 2 | 07119920148 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Clamping plate | D=6MM | 2 | 07129934319 | $1.33 | Shop at ECS Tuning | ||||
| 11 | Gasket | 1 | 52531239963 | $4.45 | Shop at ECS Tuning | |||||
| 12 | Tool box | 1 | 52531236175 | $51.26 | Shop at ECS Tuning | |||||
| 13 | Nut | 1 | 52531242706 | $10.53 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
