Radio telephone box for BMW R45-R65LS..78-85 R45

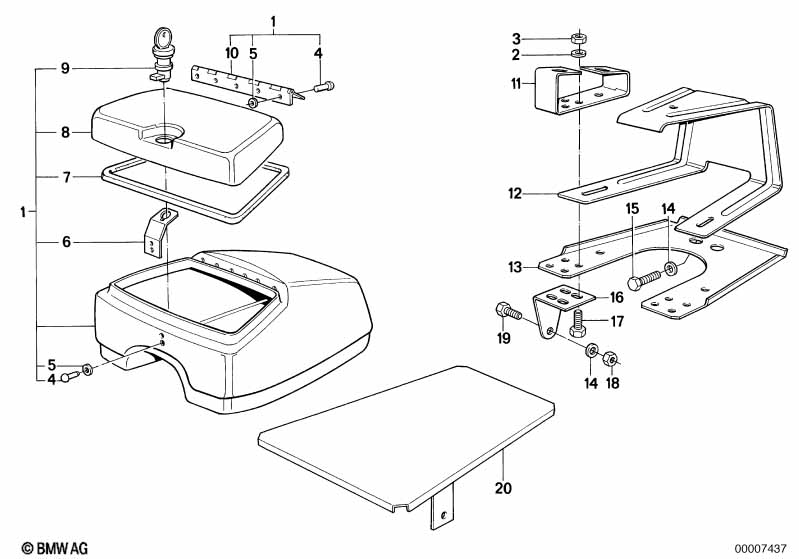

This Radio telephone box technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Radio telephone box | 1 | 46541234539 | $605.41 | +core | Shop at ECS Tuning | ||||
| For vehicles with National version france |
Y741A=Yes |
|||||||||
| 01 | Radio telephone box | 1 | 46541234539 | $605.41 | +core | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Washer | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Rivet | 3,2-4M | X | 07129948739 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | A3,2 | X | 07119931015 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Support | 1 | 46541231099 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 46541231100 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 46541231077 | ENDED, +core | Shop at ECS Tuning | |||||
| 09 | Lock | 1 | 46541231059 | $68.44 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Hinge | 1 | 46541231104 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version france |
Y741A=Yes |
|||||||||
| 11 | Bracket | 2 | 46541234537 | ENDED | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 46541231662 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 13 | Plate | 1 | 46541234543 | $246.98 | ENDED, +core | Shop at ECS Tuning | ||||
| 14 | Washer | 6-200 HV-ZNS3 | X | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Holder | 2 | 46541234533 | $26.97 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M5X20-8.8 ZNS | 8 | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Plate | 1 | 46542300133 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
