Dual seat-tool box for BMW R50/5-R90S 69-76 R90S (1976)

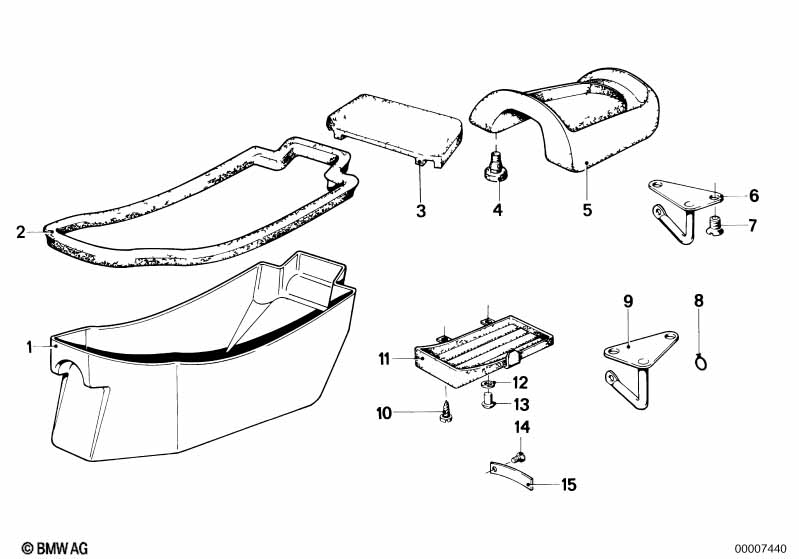

This Dual seat-tool box technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 52531232640 | $35.46 | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 52531232685 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 52531240500 | $90.16 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Tool box | X | 52531232640 | $35.46 | Shop at ECS Tuning | |||||
| 04 | Rubber support | D=18MM | 2 | 52531230319 | $2.58 | Shop at ECS Tuning | ||||
| 05 | Storing partition | 1 | 52531232666 | $98.14 | Shop at ECS Tuning | |||||
| 06 | Hinge | 1 | 52531236351 | $51.10 | Shop at ECS Tuning | |||||
| 07 | Countersunk head screw | M6X10 | 6 | 07119900811 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Clamping plate | D=6MM | 1 | 07129934319 | $1.33 | Shop at ECS Tuning | ||||
| 09 | Hinge | 1 | 52531230314 | $51.10 | Shop at ECS Tuning | |||||
| 10 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 11 | Flap | 1 | 52531234719 | $2.67 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | A3,2 | 2 | 07119931015 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Rivet | 3,2-3A | 2 | 07129948742 | $0.11 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
