Headrest front,adjustable for BMW 5 Series E28 M535i (1987)

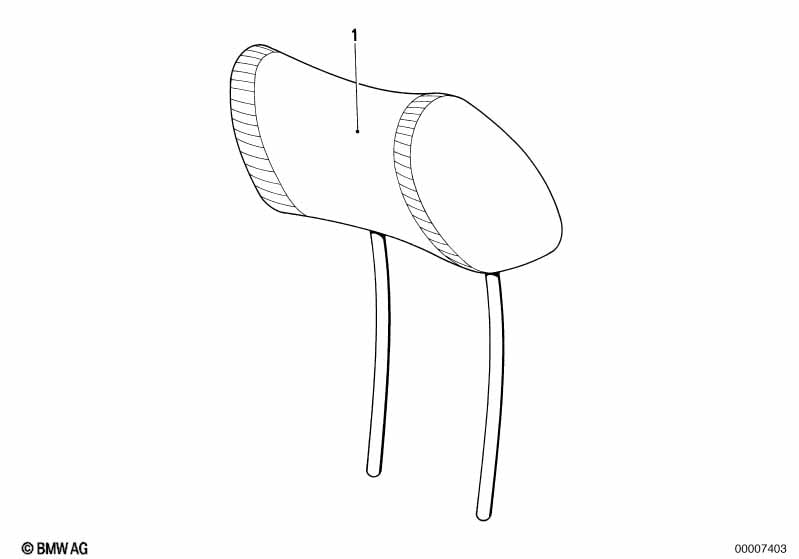

This Headrest front,adjustable technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 545 | |||||||||
| Version 545-546 UPHOLSTERY LEATHER BUFFALO |
||||||||||
| 01 | Headrest leather | 0203 SCHWARZ | 2 | 09/1984 | 52101921749 | $146.20 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0204 PACIFIC | 2 | 09/1984 | 52101921750 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0205 NUTRIA | 2 | 09/1984 | 52101921751 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0206 PERLBEIGE | 2 | 09/1984 | 52101921752 | $121.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0209 LAMA | 2 | 09/1984 | 52101921753 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0256 CARDIN.ROT | 2 | 09/1984 | 52101943873 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Headrest front,adjustable?
- This technical diagram illustrates the Headrest front,adjustable within the Seats group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Headrest leather (Part #52101921749).
- Which models use the hardware listed in this Headrest front,adjustable?
- The hardware and components featured in the Headrest front,adjustable are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Headrest leather (52101921749) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headrest front,adjustable assembly?
- Each item in the Headrest front,adjustable corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Headrest leather by locating its position on the schematic, which then links to the official BMW part number 52101921749 for the Seats section.
