Headrest front,adjustable for BMW 5 Series E12 525 (1981)

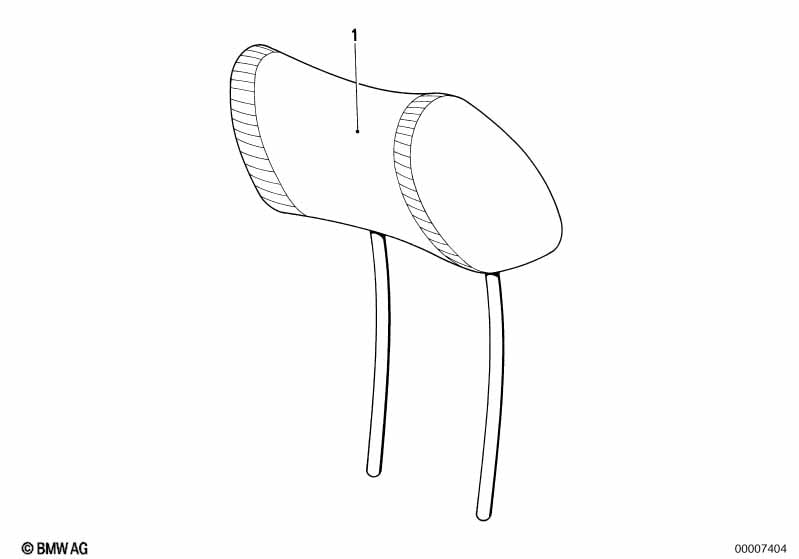

This Headrest front,adjustable technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Version 500-501/521-522/541-542 | ||||||||||
| 01 | Head rest vinyl light grey front | 0008 | 2 | 03/1975 | 52101871357 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest vinyl nylon-brown front | 0007 | 2 | 03/1975 | 52101871358 | $78.12 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest vinyl navy blue front | 0006 | 2 | 03/1975 | 52101871359 | $119.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest vinyl black front | 0005 | 2 | 03/1975 | 52101871360 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest vinyl fern green front | 0048 | 2 | 03/1975 | 52101871361 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest leather black front | 0113/9090 | 2 | 03/1975 | 52101883117 | $104.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest leather navy blue front | 0115/4141 | 2 | 03/1975 | 52101883118 | $108.53 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest leather light grey front | 0045/0117 | 2 | 03/1975 | 52101883119 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest leather fern green front | 0046/0114 | 2 | 03/1975 | 52101883120 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest leather nylon-brown front | 0087/0116 | 2 | 03/1975 | 52101883121 | $108.53 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
