BMW sportseat headrest for BMW 6 Series E24 633CSi (1984)

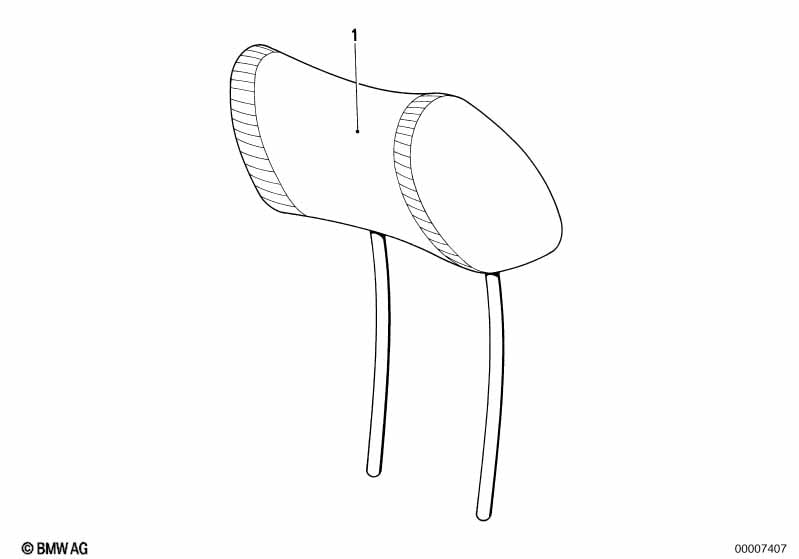

This BMW sportseat headrest technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 624-625 | |||||||||
| 01 | Head rest cloth | 0175 ANTHRAZIT | 2 | 01/1986 | 52101926819 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0176 PACIFIC | 2 | 01/1986 | 52101926820 | $118.30 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0177 NUTRIA | 2 | 01/1986 | 52101926821 | $118.30 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0178 PERLBEIGE | 2 | 01/1986 | 52101926822 | $118.30 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0179 PINIENGR. | 2 | 01/1986 | 52101926823 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi BMW sportseat headrest?
- This technical diagram illustrates the BMW sportseat headrest within the Seats group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Head rest cloth (Part #52101926819).
- Which models use the hardware listed in this BMW sportseat headrest?
- The hardware and components featured in the BMW sportseat headrest are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Head rest cloth (52101926819) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW sportseat headrest assembly?
- Each item in the BMW sportseat headrest corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Head rest cloth by locating its position on the schematic, which then links to the official BMW part number 52101926819 for the Seats section.
