Repair seat for BMW 5 Series E34 525td (1995)

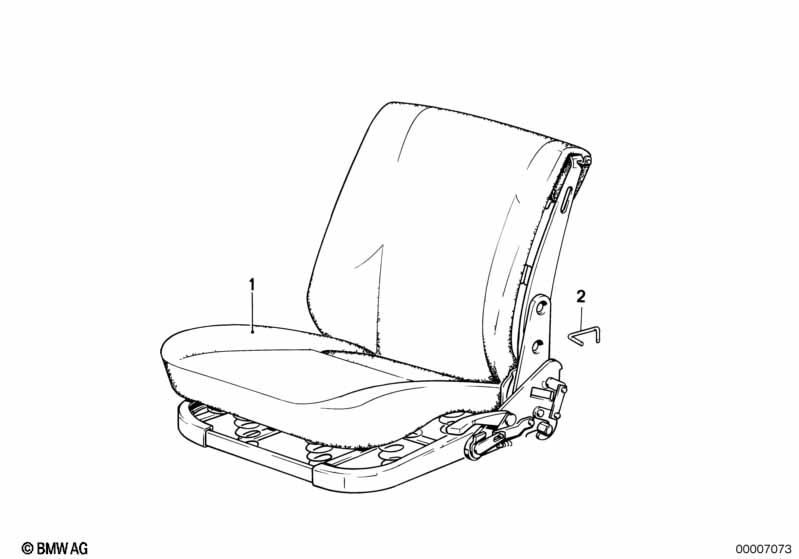

This Repair seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair seat | 2 | 52108126593 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pad seat front | 2 | 52101973383 | $142.37 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH SEAT RAIL COLOR-DEPENDED PARTS |
||||||||||
| For vehicles with Seat, electr. adjustable without memory |
=Yes |
|||||||||
| 01 | Repair seat | 2 | 52108126592 | $1763.28 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Pad seat front | X | 52101973383 | $142.37 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH COLOR-DEPEND.PARTS SEAT RAIL |
||||||||||
| For vehicles with Seat, electrically adjustable, front and Memory |
=Yes =Yes |
|||||||||
| 01 | Repair seat | 2 | 52108126595 | $1814.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pad seat front | 2 | 52101973383 | $142.37 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH SEAT RAIL COLOR-DEPENDED PARTS |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
