Rear panel for BMW 5 Series E12 525 (1981)

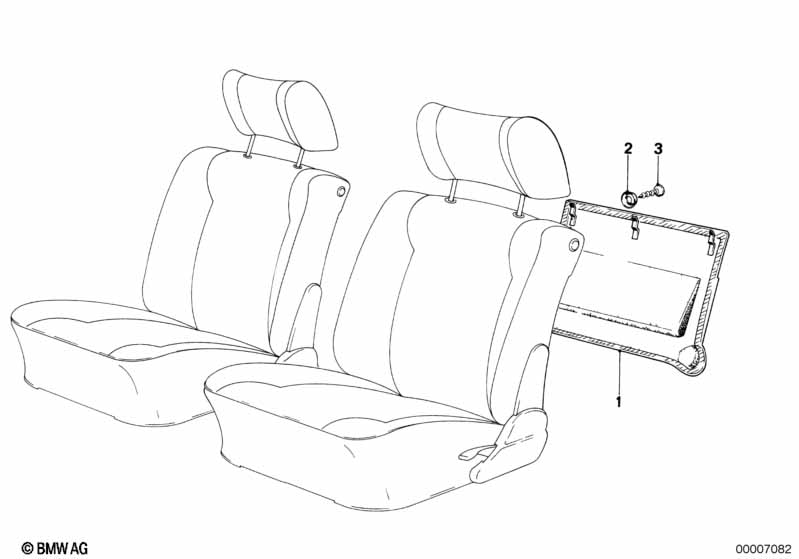

This Rear panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather trim |
=Yes |
|||||||||
| 01 | Rear panel seat leather | SCHWARZ | 2 | 03/1975 | 52101886724 | $398.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather | MARINEBLAU | 2 | 03/1975 | 52101886725 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel seat leather | HELLGRAU | 2 | 03/1975 | 52101886726 | $300.20 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather | FARNGRUEN | 2 | 03/1975 | 52101886727 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel seat leather | NYLONBRAUN | 2 | 03/1975 | 52101886728 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Vinyl version |
=Yes =Yes |
|||||||||
| 01 | Rear panel seat vinyl | HELLGRAU | 2 | 03/1975 | 52101860962 | $83.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | NYLONBRAUN | 2 | 03/1975 | 52101860963 | $83.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | MARINEBLAU | 2 | 03/1975 | 52101860964 | $83.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | SCHWARZ | 2 | 03/1975 | 52101860965 | $83.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | FARNGRUEN | 2 | 03/1975 | 52101860966 | $83.70 | ENDED | Shop at ECS Tuning | ||
| 02 | Hollow washer | 8 | 03/1975 | 51451804974 | $2.62 | Shop at ECS Tuning | ||||
| 03 | Recessed oval head sheet-metal screw | ST4,2X16 | 8 | 03/1975 | 07119902497 | $0.13 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
