BMW sportseat seat panel rear for BMW 6 Series E24 633CSi (1984)

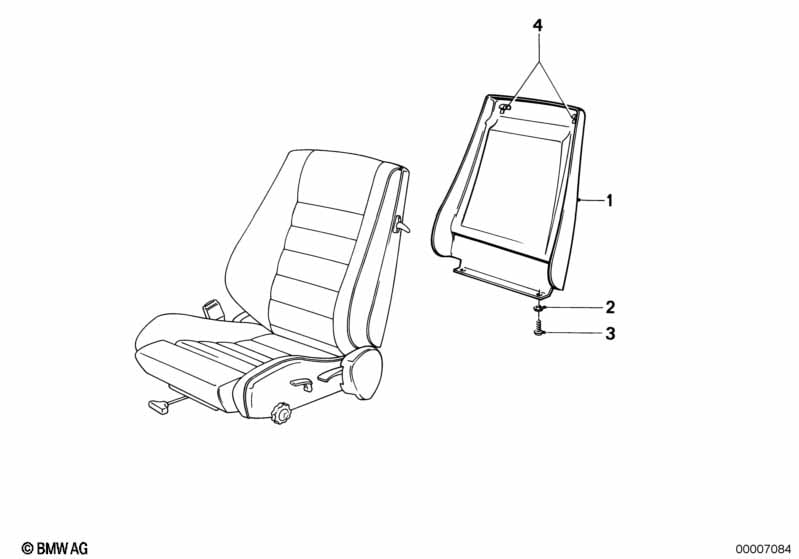

This BMW sportseat seat panel rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hollow washer | 4 | 51451804974 | $2.62 | Shop at ECS Tuning | |||||
| 03 | Recessed oval head sheet-metal screw | ST4,2X19 | 4 | 07119902468 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Bracket | 4 | 52101923431 | $0.86 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi BMW sportseat seat panel rear?
- This technical diagram illustrates the BMW sportseat seat panel rear within the Seats group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Hollow washer (Part #51451804974).
- Which models use the hardware listed in this BMW sportseat seat panel rear?
- The hardware and components featured in the BMW sportseat seat panel rear are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Hollow washer (51451804974) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW sportseat seat panel rear assembly?
- Each item in the BMW sportseat seat panel rear corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Hollow washer by locating its position on the schematic, which then links to the official BMW part number 51451804974 for the Seats section.
