Cover f reclining front seat fitting for BMW 6 Series E24 633CSi (1979)

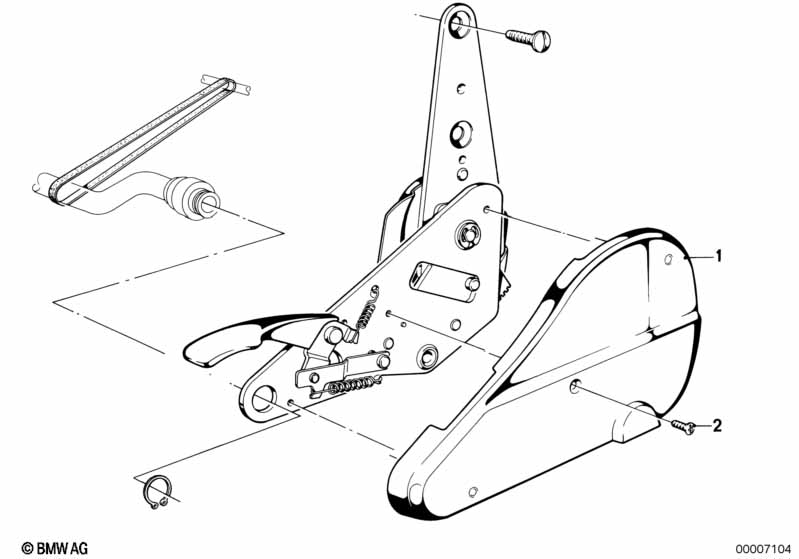

This Cover f reclining front seat fitting technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622-623-624-625 | |||||||||
| 01 | Cover panel outer left | DUNKELBEIGE | 1 | 08/1979 | 52101859669 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover panel outer left | WEISSBEIGE | 1 | 08/1979 | 52101867705 | $10.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover panel outer left | ANTHRAZIT | 1 | 52101859671 | $10.12 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
